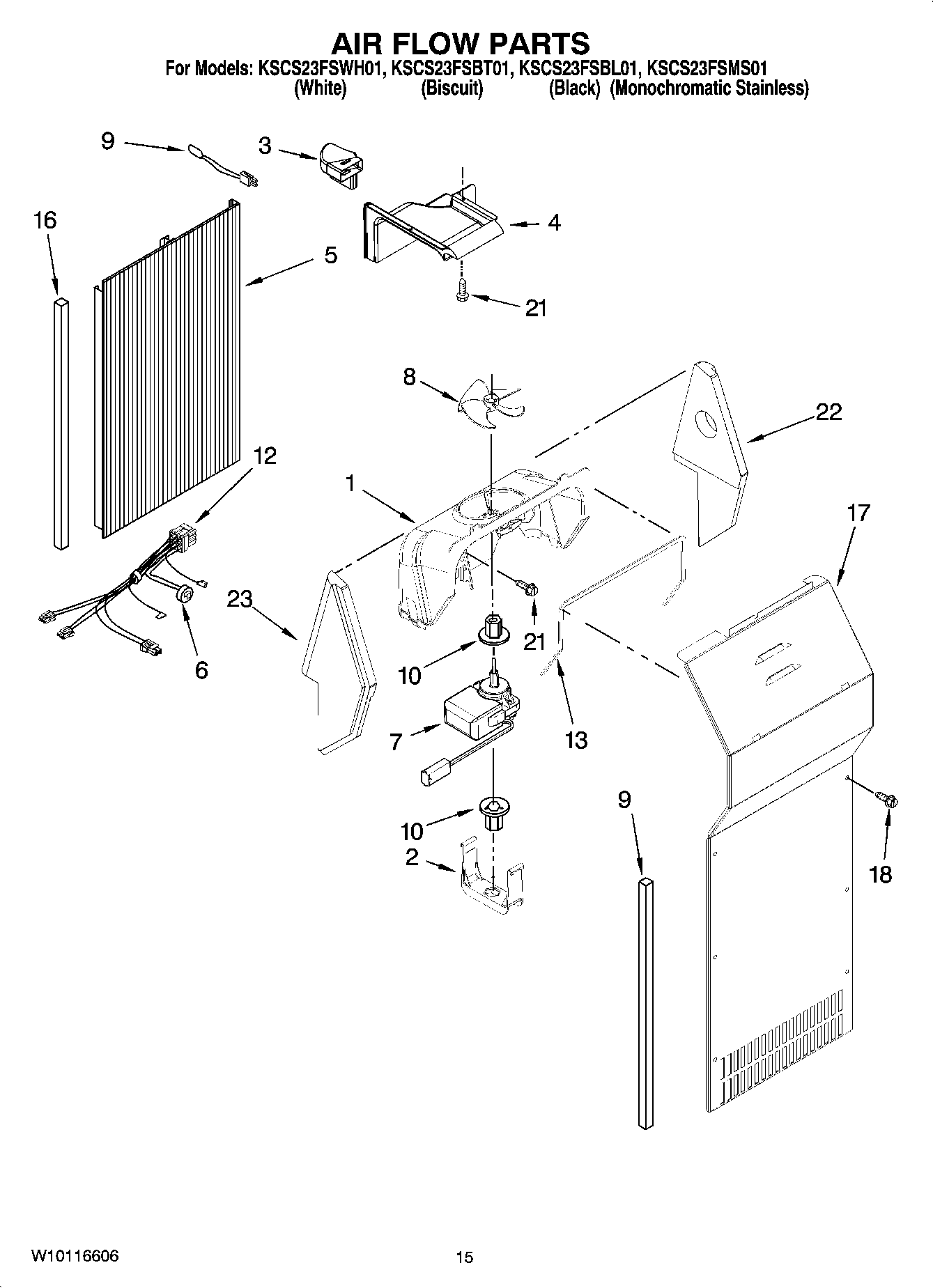

KSCS23FSMS01 09 – AIR FLOW PARTSadmin2025-04-26T12:13:51+00:00KSCS23FSMS01 09 – AIR FLOW PARTS ProductsPositionProduct1WP2182120 Whirlpool Refrigerator Scroll Fan28201663 Whirlpool Refrigerator Primary Fan Blade3Air Scoop4Air Duct, Upper52223771 Whirlpool Refrigerator Air Duct6WPW10225581 Whirlpool Refrigerator Defrost Thermostat7Motor, Fan8WP2169142 Whirlpool Fan Blade9WP2304241 Whirlpool Refrigerator Gasket10W11669856 Whirlpool Grommet12Harness, Fan Evaporator (Includes 6)13WP2155789 Whirlpool Refrigerator Gasket164388500 Whirlpool Refrigerator Gasket172223413 Whirlpool Refrigerator Evaporator Cover184389654 Whirlpool Screw21WP489478 Whirlpool Refrigerator Screw22Support, R.S234388358 Whirlpool Refrigerator Support Bracket
