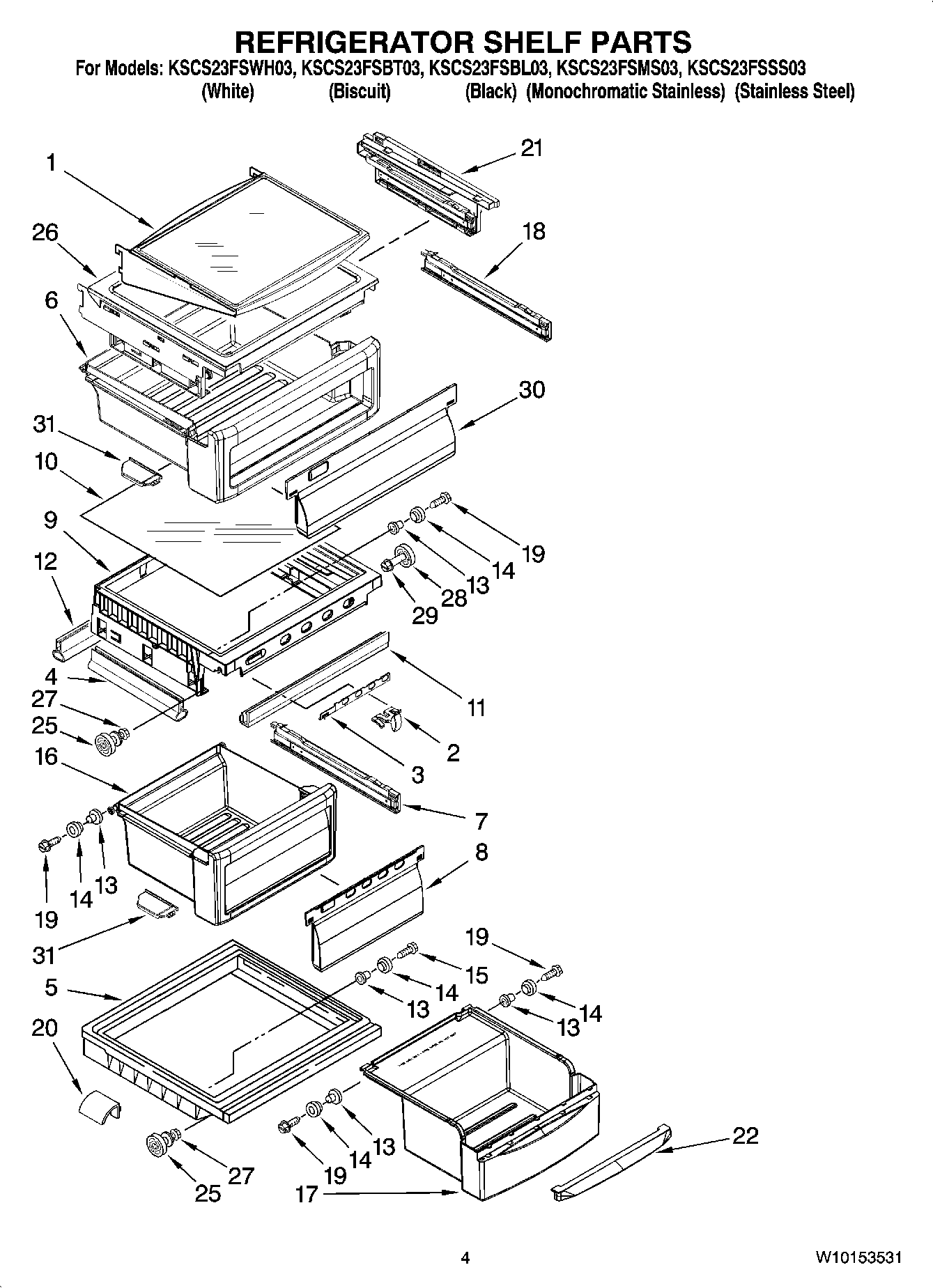

KSCS23FSMS03 03 – REFRIGERATOR SHELF PARTSadmin2025-04-26T12:12:11+00:00KSCS23FSMS03 03 – REFRIGERATOR SHELF PARTS
Products
| Position | Product |
|---|
| 1 | W10235943 Whirlpool Refrigerator CANT Shelf |
| 2 | Knob, Humidity |
| 3 | 2301026 Whirlpool Refrigerator Slide |
| 4 | 2301117 Whirlpool Refrigerator Gasket |
| 5 | WPW10270150 Whirlpool Crisper Drawer Cover |
| 6 | Snack Bin |
| 7 | Glide Assm-Pan (Left Side) |
| 7 | 2301548 Whirlpool Refrigerator Glide |
| 8 | Window, Crisper |
| 9 | Cover, Crisper (Includes 2, 3, 4,11,12 & 24) |
| 10 | Glass, Crisper Cover |
| 11 | WP1125528 Whirlpool Refrigerator Gasket |
| 12 | Gasket, Rear |
| 13 | Eyelet, Roller |
| 14 | Roller |
| 15 | WPW10272364 Whirlpool Refrigerator Screw |
| 16 | W10916292 Whirlpool Refrigerator Crisper Pan |
| 17 | Meat Pan (Includes 13, 14, 19 & 22) |
| 18 | Glide Assm-Pan (Right Side) |
| 18 | Glide Assm-Pan (Left Side) |
| 19 | WP489261 Whirlpool Refrigerator Screw |
| 20 | 2223487 Whirlpool Refrigerator Deflector |
| 21 | Support Assembly (Right Side) |
| 21 | Support Assembly (Left Side) |
| 22 | Handle, Beverage |
| 25 | W11223328 Whirlpool Refrigerator Shelf Stud |
| 26 | Shelf Assembly |
| 27 | WP3-24004-109 Whirlpool Refrigerator Screw |
| 28 | WP2196483 Whirlpool Refrigerator Shelf Stud |
| 29 | WP3400806 Whirlpool Screw |
| 30 | Window, Snack Pan |
| 31 | Cap, Crisper Pan (Right Side) |
| 31 | Cap, Crisper Pan (Left Side) |
