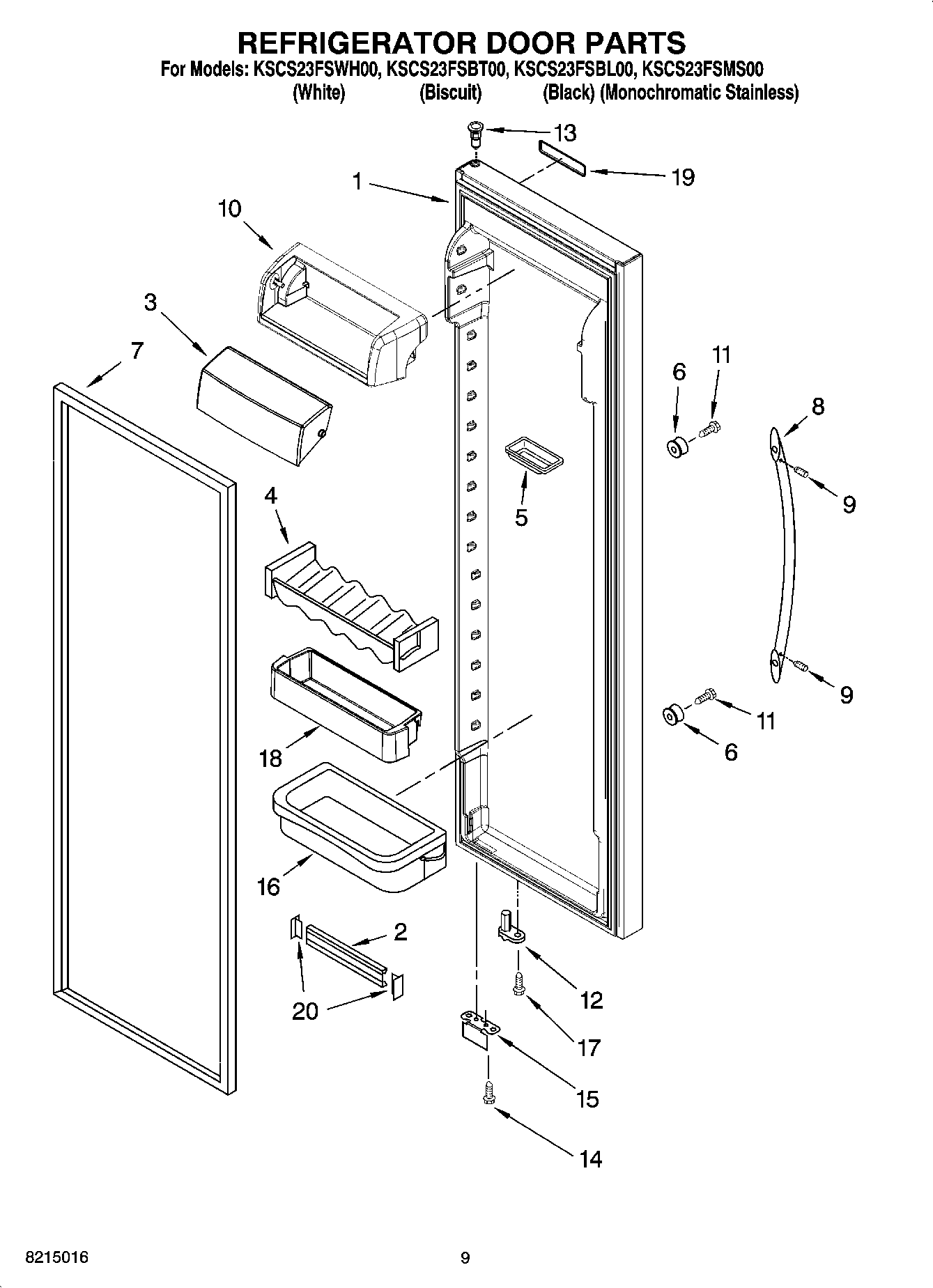

KSCS23FSWH00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (White)
1	Refrigerator Door (Includes 7) (Biscuit)
1	Refrigerator Door (Includes 7) (Monochromatic Stainless)
1	Refrigerator Door (Includes 7) (Black)
2	Trim, Shelf
3	Dairy Door
4	CADDY, CAN
5	Dish, Butter
6	WPW10170540 Whirlpool Screw
7	GASKET, DOOR (MIST BEIGE)
7	GASKET, DOOR (BLACK)
8	WP2319727B Whirlpool Refrigerator Handle
8	WP2319727W Whirlpool Refrigerator Handle
8	Handle, Door (Stainless Steel)
8	Handle (Includes 4) (Biscuit)
9	WPW10010150 Whirlpool Refrigerator Screw
9	SCREW
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	WP488163 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	Thimble, Top (For Stainless Steel Models)
14	WP489483 Whirlpool Screw
15	2306940 Whirlpool Refrigerator Bracket
15	2306940B Whirlpool Refrigerator Bracket
16	WP2223860 Whirlpool Refrigerator Door Shelf Bin
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
19	WPW10243392 Whirlpool Dishwasher Nameplate
19	NAMEPLATE
19	WPW10243393 Whirlpool Dishwasher Nameplate
19	Nameplate (Biscuit)
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
