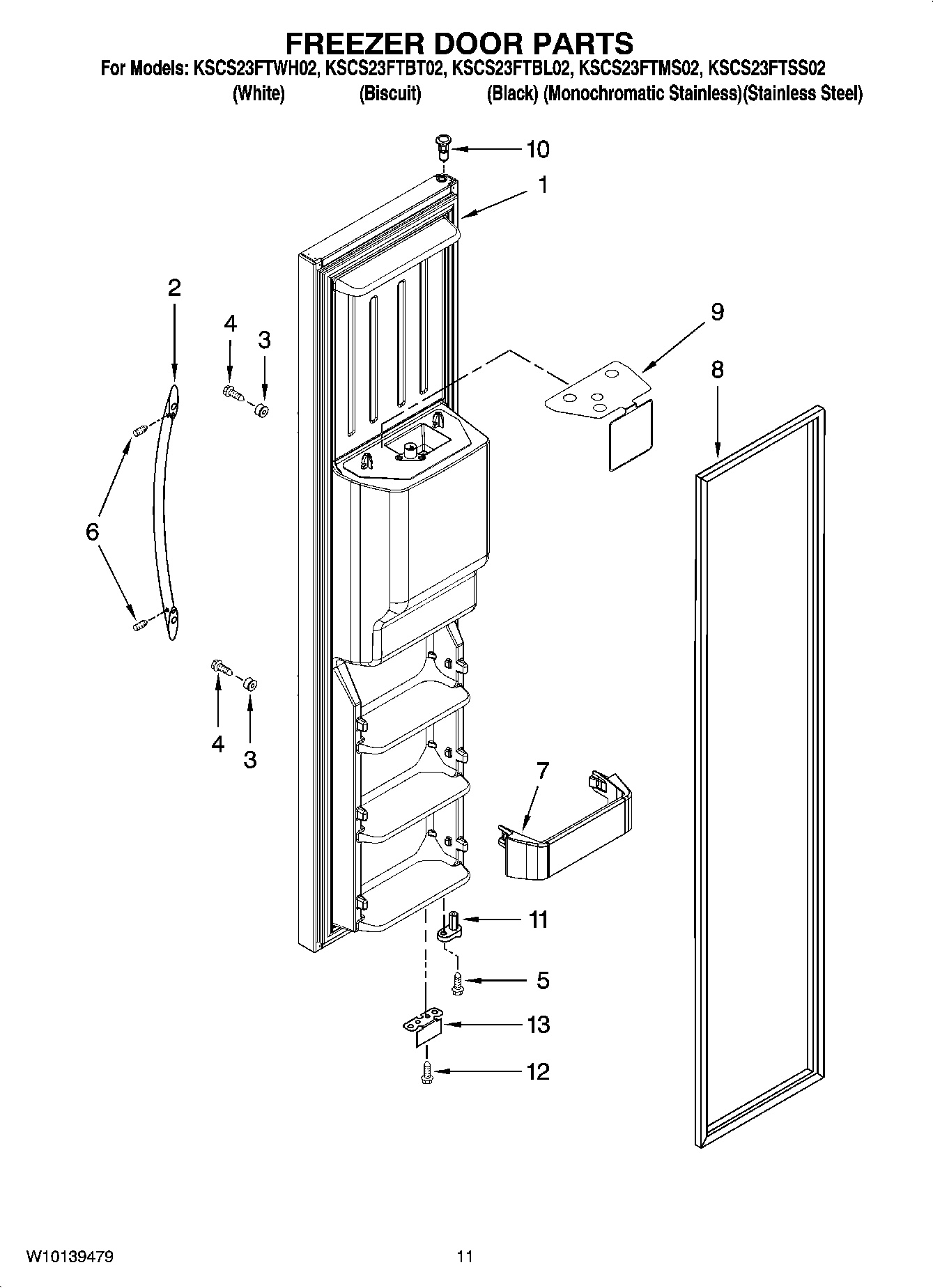

KSCS23FTBL02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
2	Handle (Includes 4) (Biscuit)
3	WPW10170540 Whirlpool Screw
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WPW10010150 Whirlpool Refrigerator Screw
6	SCREW
7	Trivet (3)
8	Door Gasket, Magnetic (Apollo Grey)
8	GASKET, DOOR (BLACK)
8	GASKET, DOOR (MIST BEIGE)
9	Safety Barrier
10	Thimble, Top (For Stainless Steel Models)
11	Door Closer, Upper Cam
12	WP489483 Whirlpool Screw
13	2306940B Whirlpool Refrigerator Bracket
13	Tube, Door
13	2310224 Whirlpool Dispense Harness
13	2306940 Whirlpool Refrigerator Bracket
13	Following Parts Not Illustrated
