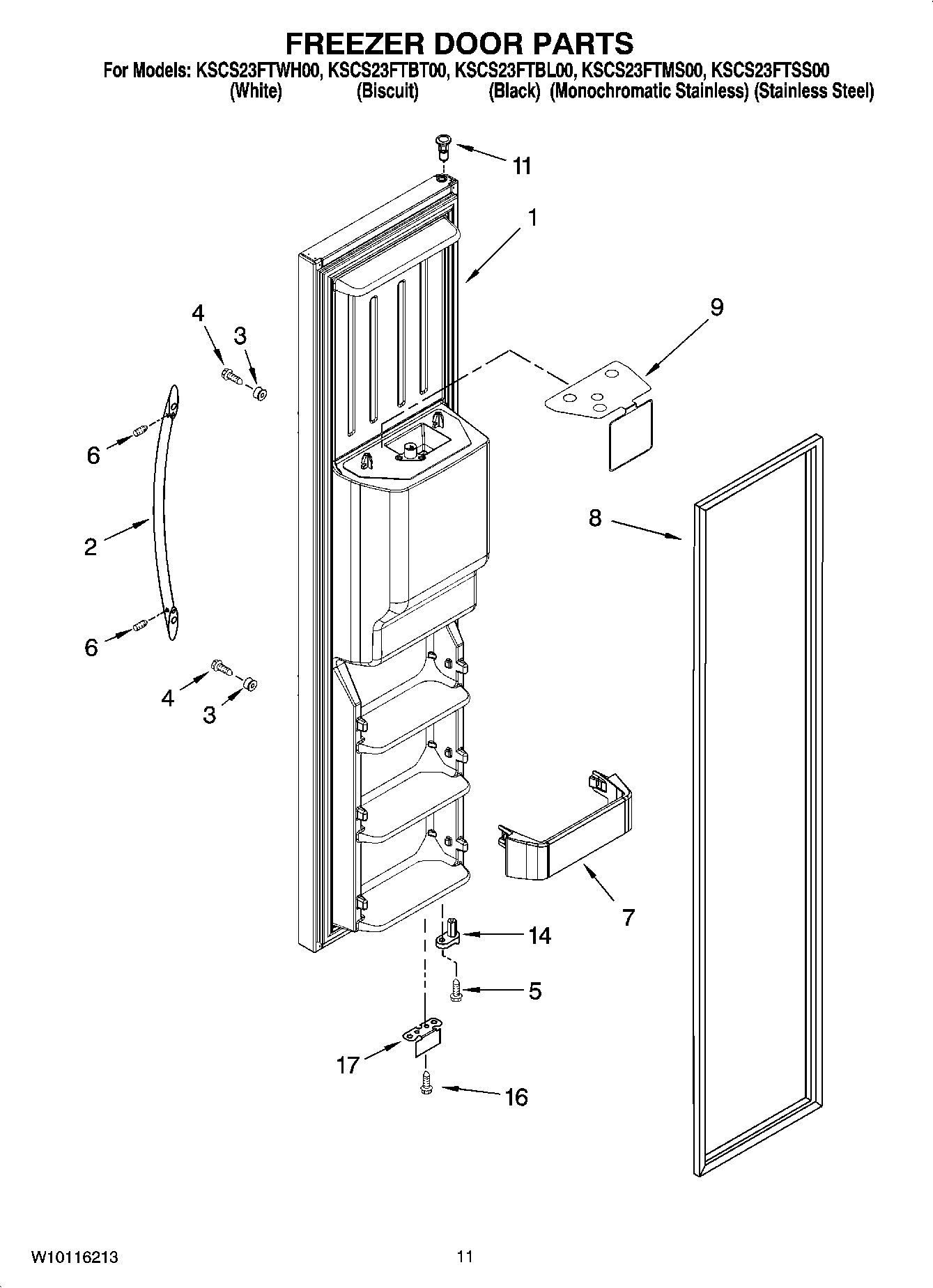

KSCS23FTBT00 07 – FREEZER DOOR PARTSadmin2025-04-26T12:12:31+00:00KSCS23FTBT00 07 – FREEZER DOOR PARTS ProductsPositionProduct1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)1Freezer Door (Includes 8 And Dispenser Front Parts) (White)1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)2WP2319727W Whirlpool Refrigerator Handle2WP2319727B Whirlpool Refrigerator Handle2Handle (Includes 4) (Biscuit)2Handle, Door (Stainless Steel)3WPW10170540 Whirlpool Screw4WP488163 Whirlpool Refrigerator Screw5WP3400012 Whirlpool Refrigerator Screw6SCREW6WPW10010150 Whirlpool Refrigerator Screw7Shelf Bin (3)8GASKET, DOOR (MIST BEIGE)8GASKET, DOOR (BLACK)9Safety Barrier11Thimble, Top (For Stainless Steel Models)14Door Closer, Upper Cam16WP489483 Whirlpool Screw172306940 Whirlpool Refrigerator Bracket17Tube, Door172310224 Whirlpool Dispense Harness172306940B Whirlpool Refrigerator Bracket17Following Parts Not Illustrated
