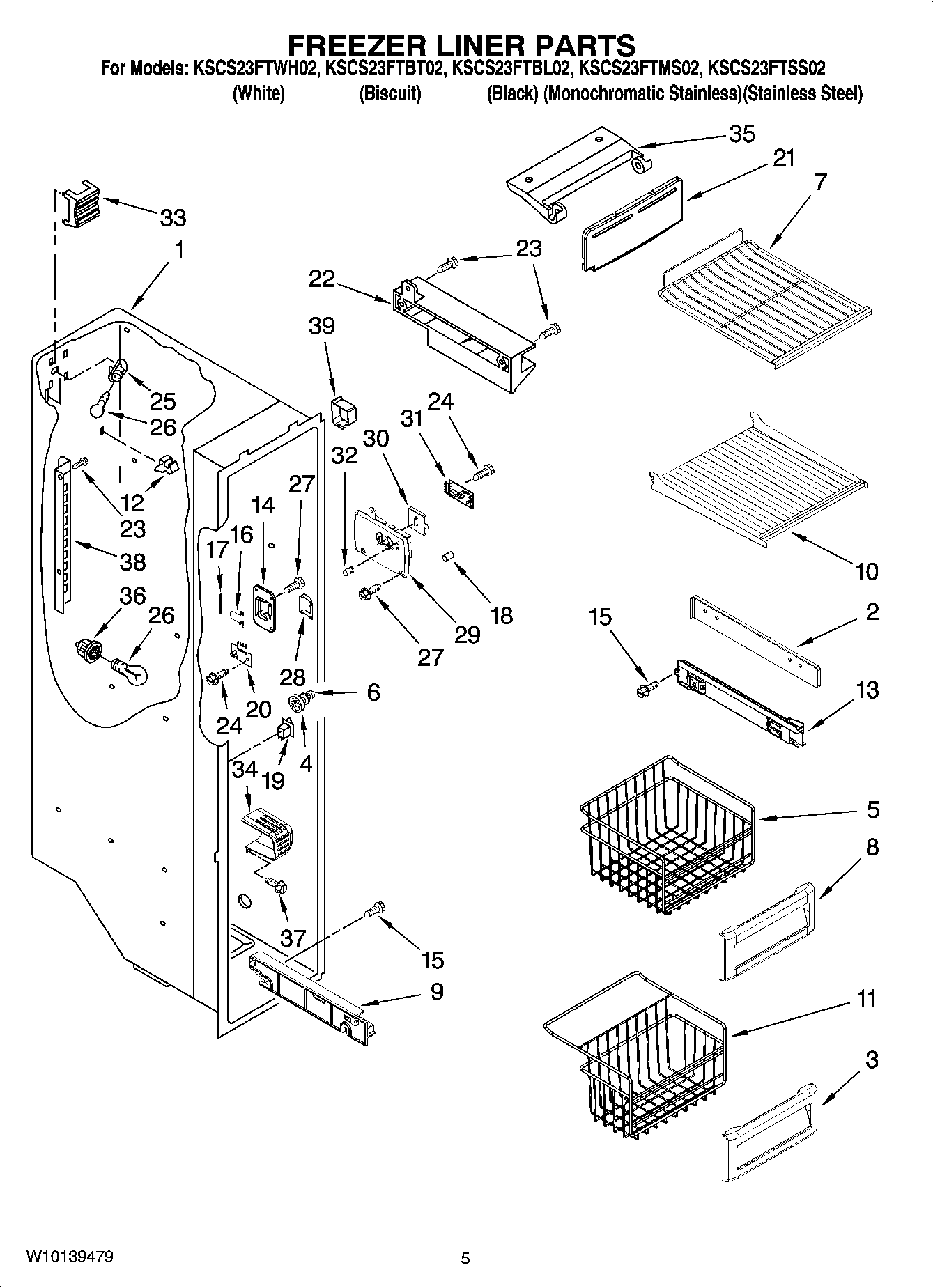

KSCS23FTBT02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Spacer, Slide (2)
3	2223782 Whirlpool Front Basket
4	WP2196483 Whirlpool Refrigerator Shelf Stud
5	Basket, Deep (2)
6	WP3400806 Whirlpool Screw
7	SHELF, WIRE
8	Front, Basket
9	TRACK, SHELF (RIGHT HAND)
9	TRACK, SHELF (LEFT HAND)
10	Shelf, Fixed
11	Basket, Lower
12	2215823 Whirlpool Refrigerator Clip
13	2301544 Whirlpool Refrigerator Glide
13	2301545 Whirlpool Refrigerator Glide
14	Cover, Emitter
15	Screw
16	WP2198635 Whirlpool Refrigerator Spring
17	WP2198634 Whirlpool Door Pin
18	Tube, P.C. Board
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	W10757851-includeCORE Whirlpool Electronic Control+Core
21	WPW10185438 Whirlpool Ice Maker Cover
22	Slide, Ice Maker
22	2306900 Whirlpool Refrigerator Slide
23	WP489478 Whirlpool Refrigerator Screw
24	2006254 Whirlpool Refrigerator Screw
25	4387478 Whirlpool Refrigerator Light Socket
26	RANGE ONLY 40W 120V APPL BULB
27	WPW10142283 Whirlpool Refrigerator Screw
28	WP2198633 Whirlpool Refrigerator Flipper
29	Cover, Receiver
30	Slide, Ice Maker Shut Off
32	WP2198643 Whirlpool Refrigerator Lens
33	Light Shield
34	Light Lens
35	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
36	SOCKET
37	W10142289 Whirlpool Air Conditioner Screw
38	Ladder (Left Side)
38	Ladder (Right Side)
39	2303378 Whirlpool Shield Assembly
