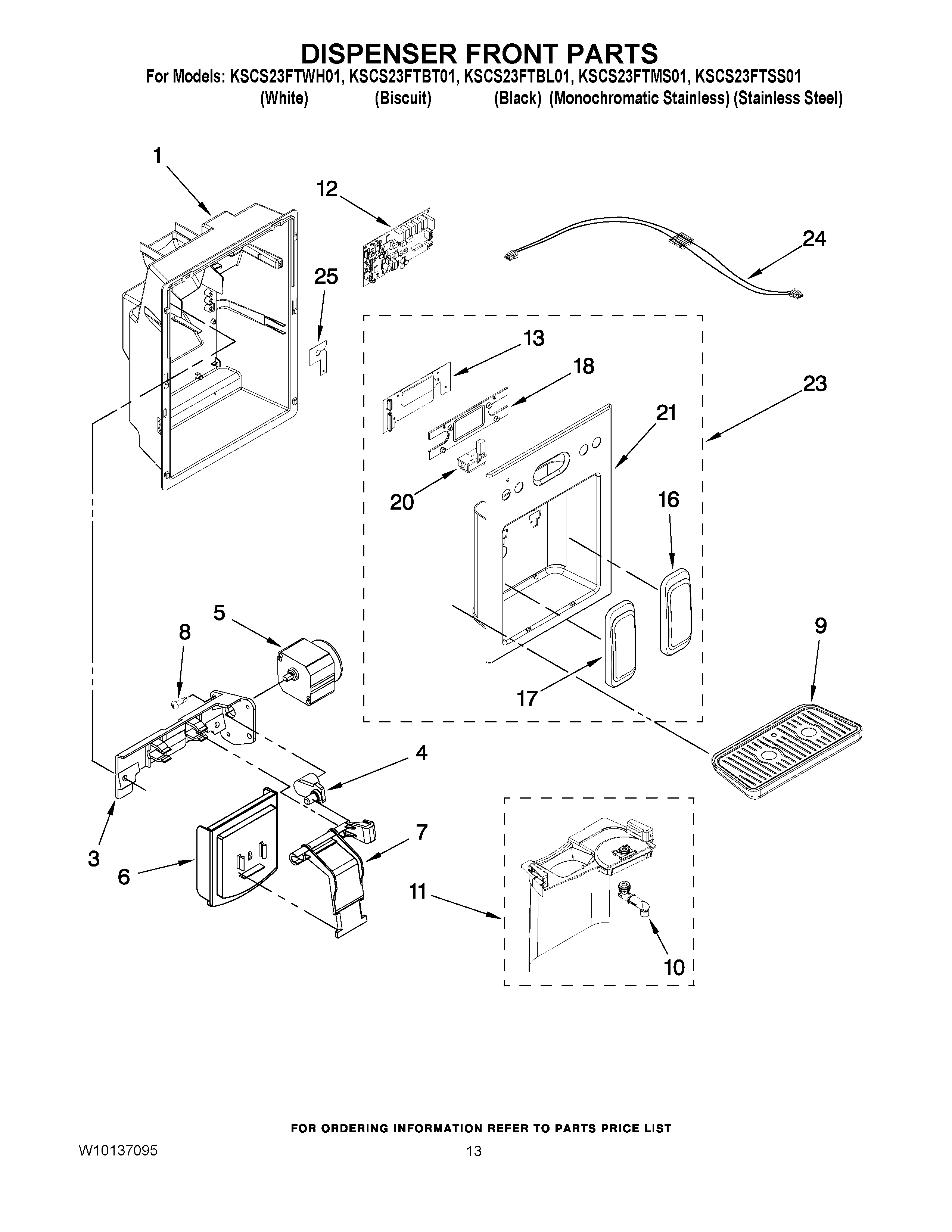

KSCS23FTMS01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	HOUSING, DISPENSER (NOT SERVICES)
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	Trim, Housing (Biscuit)
9	Trim, Housing (White)
9	Tray, Housing (Universal Silver)
9	Trim, Housing (Black)
10	Spigot
11	Seperator Assembly
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	WP2321746 Whirlpool Refrigerator Electronic Control Board
16	Pad, Water (White)
17	Pad, Ice (White)
17	W10133606 Whirlpool Refrigerator Pad
17	W10133603 Whirlpool Dispenser Actuator Pad Set
18	Lens, Front Cover
20	W10222215 Whirlpool Refrigerator Light Indicator
21	FRONT COVER, HOUSING (NOT AVALIABLE, ORDER No.23)
23	Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Black)
23	Front Cover Assembly (Includes Items 13,14,16,17,20&21) (White)
23	Front Cover Assembly (Includes Items 13, 16, 17, 18, 20 & 21) (Universal Silver)
23	Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Biscuit)
24	WPL 2187814
25	2305447 Whirlpool Refrigerator Clip
