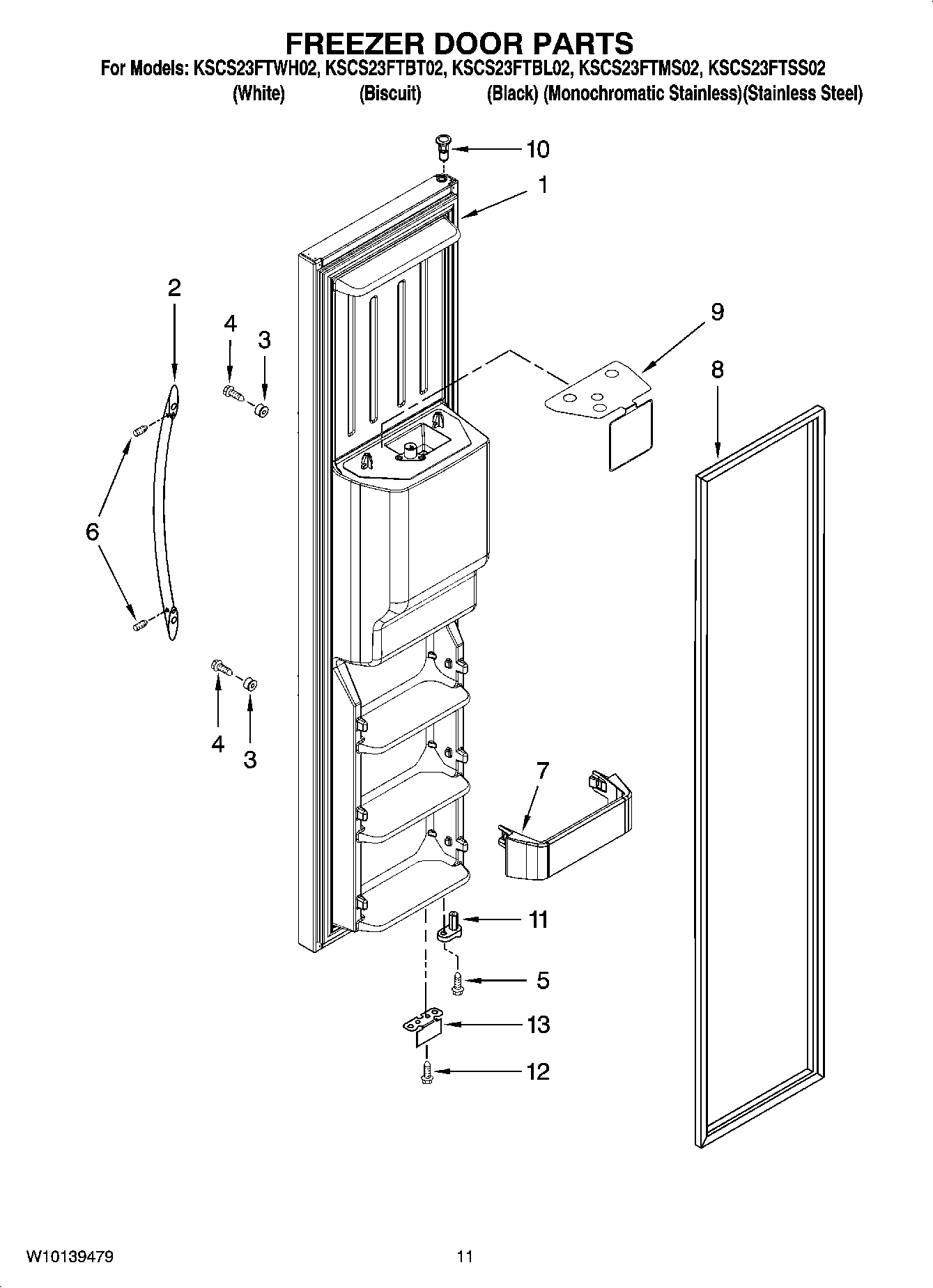

KSCS23FTMS02 07 – FREEZER DOOR PARTSadmin2025-04-26T12:11:42+00:00KSCS23FTMS02 07 – FREEZER DOOR PARTS ProductsPositionProduct1Freezer Door (Includes 8 And Dispenser Front Parts) (White)1Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)1Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)1Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)2Handle, Door (Stainless Steel)2WP2319727W Whirlpool Refrigerator Handle2WP2319727B Whirlpool Refrigerator Handle2Handle (Includes 4) (Biscuit)3WPW10170540 Whirlpool Screw4WP488163 Whirlpool Refrigerator Screw5WP3400012 Whirlpool Refrigerator Screw6WPW10010150 Whirlpool Refrigerator Screw6SCREW7Trivet (3)8Door Gasket, Magnetic (Apollo Grey)8GASKET, DOOR (BLACK)8GASKET, DOOR (MIST BEIGE)9Safety Barrier10Thimble, Top (For Stainless Steel Models)11Door Closer, Upper Cam12WP489483 Whirlpool Screw132306940B Whirlpool Refrigerator Bracket13Tube, Door132310224 Whirlpool Dispense Harness132306940 Whirlpool Refrigerator Bracket13Following Parts Not Illustrated
