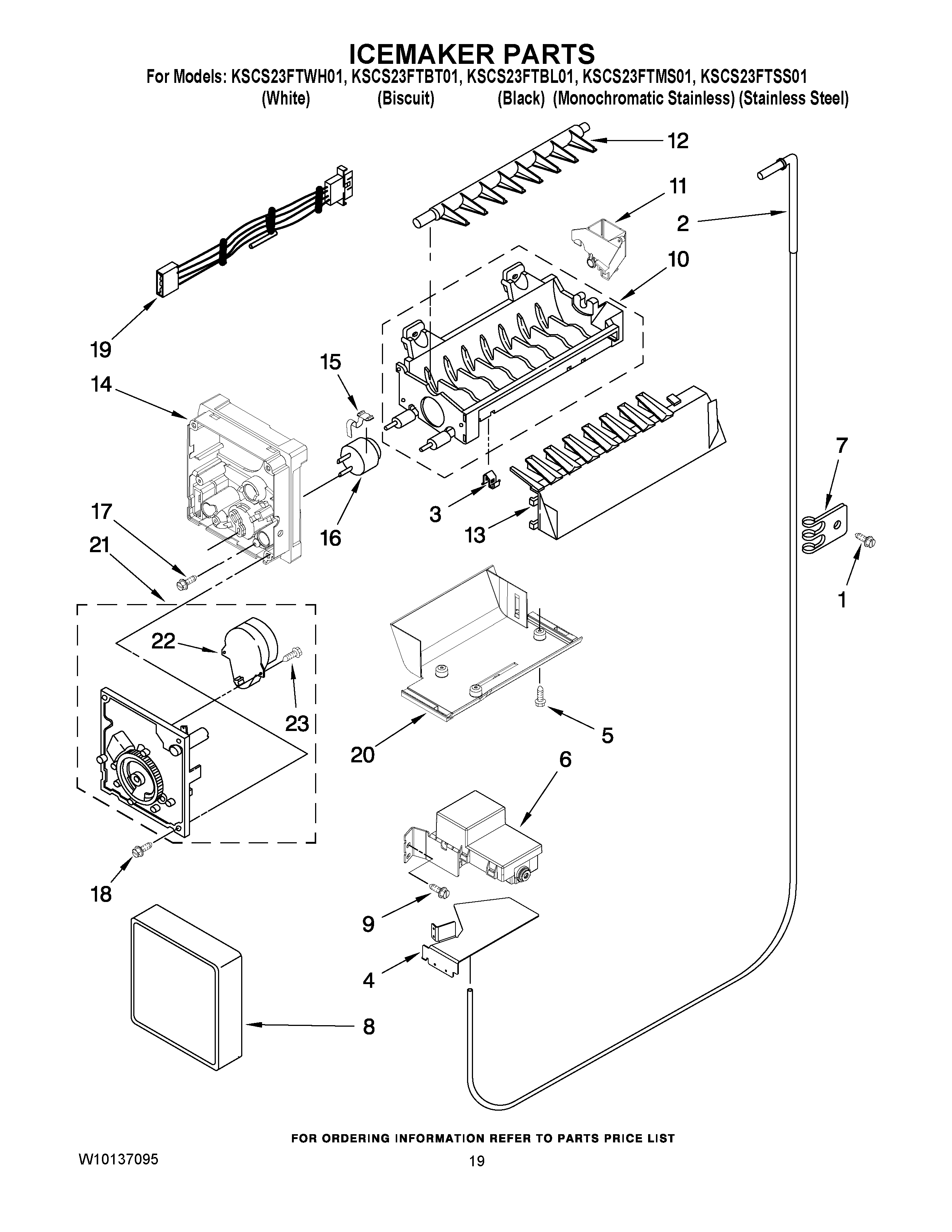

KSCS23FTSS01 12 – ICEMAKER PARTS

KSCS23FTSS01 12 – ICEMAKER PARTS

Written by

in

KSCS23FTSS01 12 – ICEMAKER PARTS

Products

PositionProduct
2WP2256096 Whirlpool Refrigerator Fitting
3WP628379 Whirlpool Refrigerator Clip
4Shield, Water Valve
5WP489478 Whirlpool Refrigerator Screw
6WPW10159840 Whirlpool Refrigerator Valve
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11WP628356 Whirlpool Refrigerator Fill Cup
12WP627843 Whirlpool Refrigerator Ejector Arm
13W10297244 Whirlpool Refrigerator Arm Strip
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
20BRACKET, ICEMAKER MOUNTING
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
228201515 Whirlpool Refrigerator Motor and Gear Module Kit
23489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
