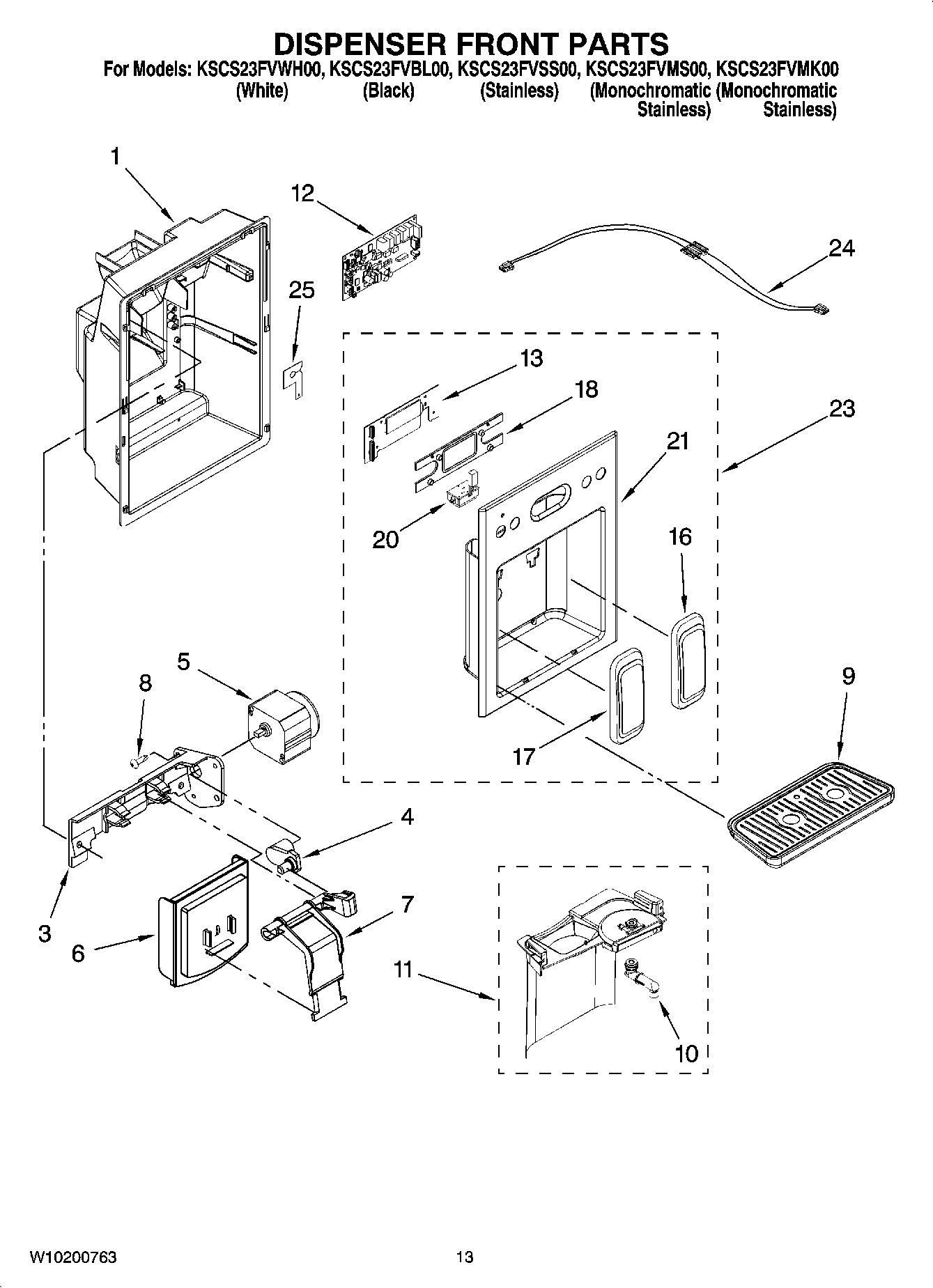

KSCS23FVBL00 08 – DISPENSER FRONT PARTS
Written by
in
KSCS23FVBL00 08 – DISPENSER FRONT PARTS
Products
Position
Product
1
Housing Dispenser (Not Serviced)
3
WP2305202 Whirlpool Refrigerator Bracket
4
WP2305242 Whirlpool Refrigerator Connector
5
WPW10184813 Whirlpool Refrigerator Motor
6
WP2305258 Whirlpool Dispenser Door Assembly
7
WP2305204 Whirlpool Refrigerator Support
8
WP4449745 Whirlpool Screw
9
Trim, Housing (Nickel Alloy)
9
Trim, Housing (White)
9
Trim, Housing (Black)
10
Spigot
11
Seperator Assembly
12
WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13
2305219 Whirlpool Refrigerator Cover
16
Pad, Water (White)
17
W10133603 Whirlpool Dispenser Actuator Pad Set
17
W10133606 Whirlpool Refrigerator Pad
17
Pad, Ice (White)
18
Lens, Front Cover
20
W10222215 Whirlpool Refrigerator Light Indicator
21
Front Cover, Housing (Not Available Order 23)
23
Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Black)
23
Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Nickel One)
23
Front Cover Assembly (Includes Items 13,14,16,17,20&21) (White)
24
WPL 2187814
25
2305447 Whirlpool Refrigerator Clip
←
