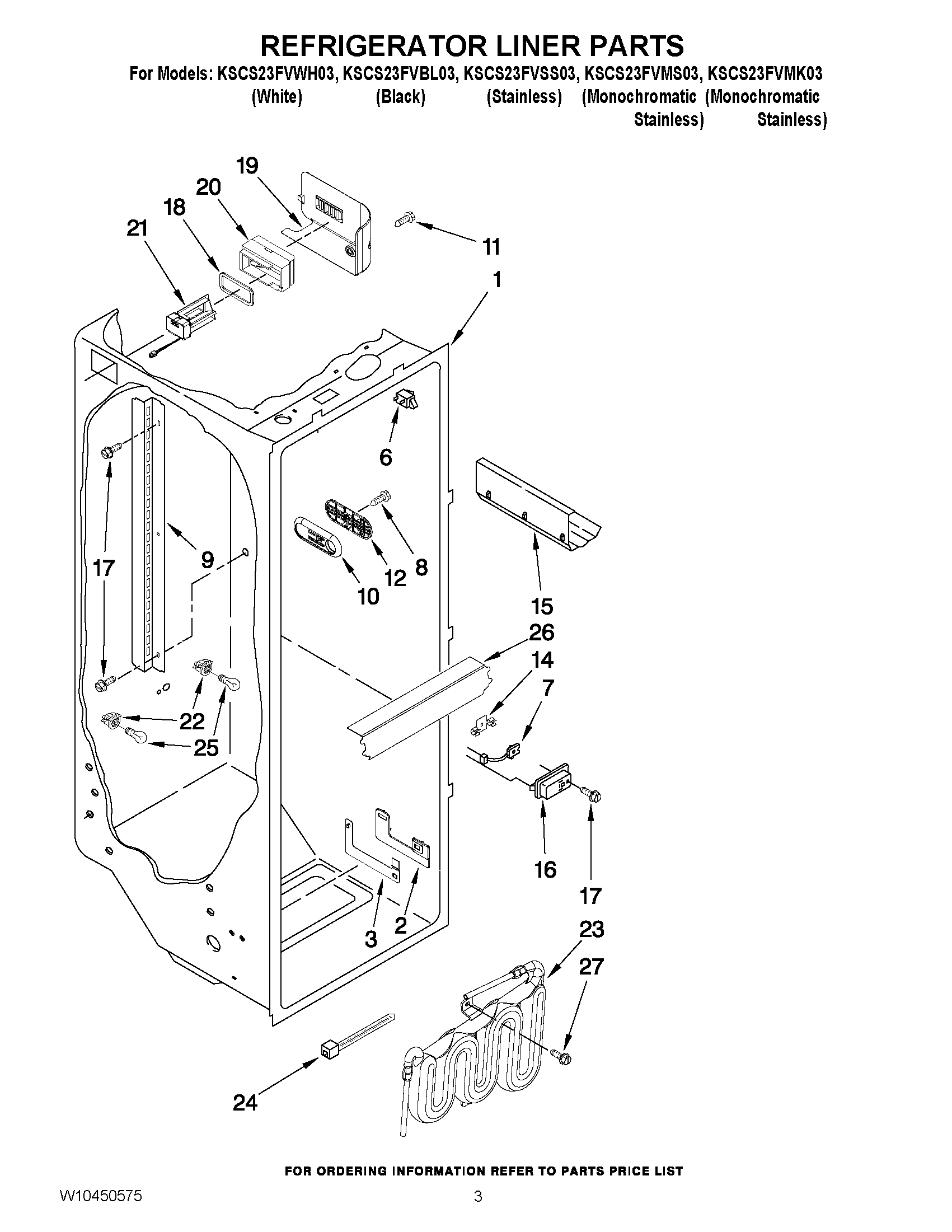

KSCS23FVBL03 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	2223524 Whirlpool Escutcheon
3	2223339 Whirlpool Slide
6	W11384469 Whirlpool Door Switch
7	WP2188820 Whirlpool Refrigerator Thermistor
9	Shelf Ladder
10	2301234 Whirlpool Refrigerator Control
11	W10759522 Whirlpool Screw
12	Slide, Door Control
14	Clip, Thermistor
15	W10777924 Whirlpool Refrigerator Wine Rack
16	1116793 Whirlpool Refrigerator Cover
17	WP489478 Whirlpool Refrigerator Screw
18	Gasket, Air Baffle
19	COVER, AIR DIFFUSER
20	ASSEMBLY, AIR DIFFUSER
21	WP2220377 Whirlpool Refrigerator Air Baffle
22	4387478 Whirlpool Refrigerator Light Socket
23	RESERVOIR
24	WPW10339879 Whirlpool Wire Tie
25	W11679940 Whirlpool Refrigerator Light Bulb Assembly
26	LENS, LIGHT
27	SCREW
