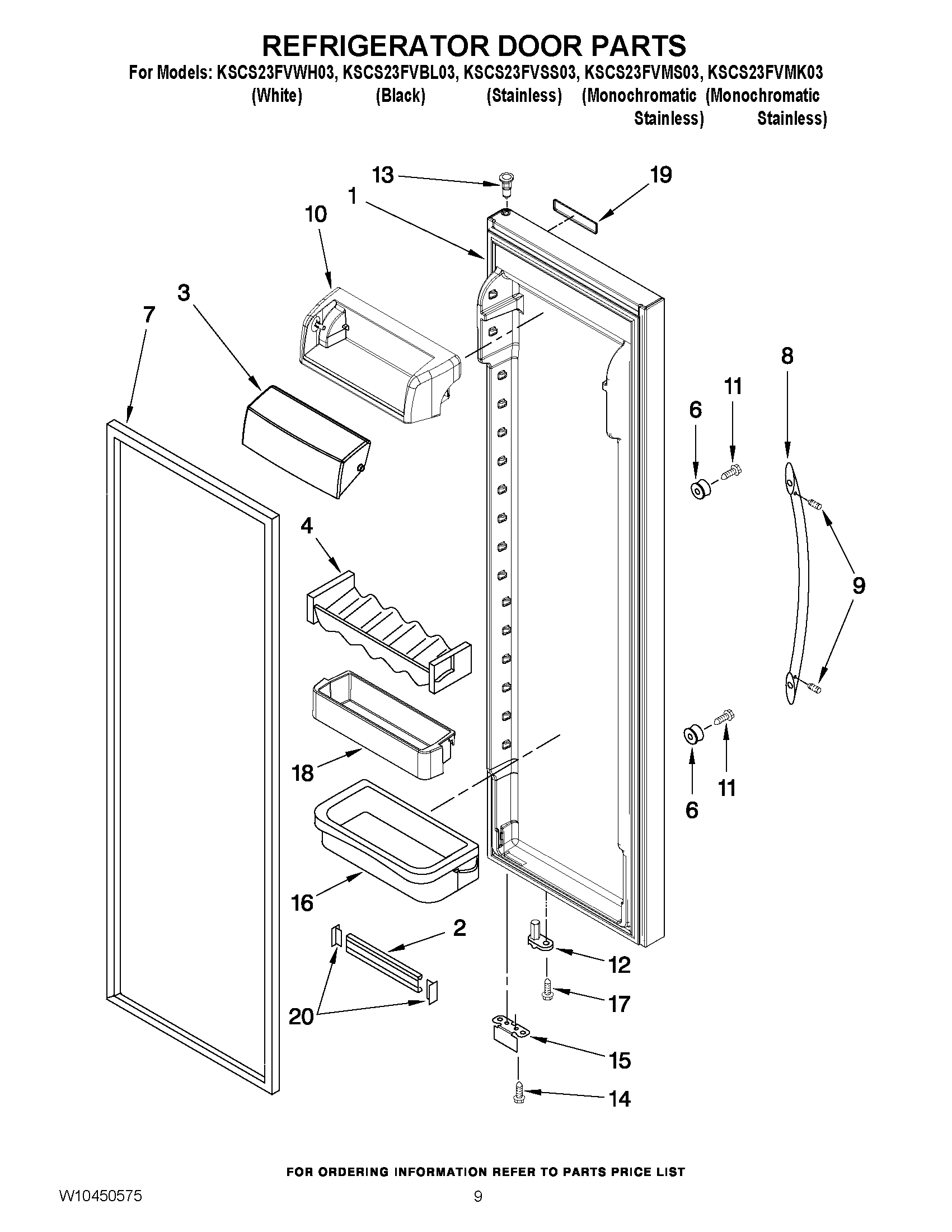

KSCS23FVBL03 06 – REFRIGERATOR DOOR PARTS

KSCS23FVBL03 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSCS23FVBL03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES No.7) (MONOCHROMATIC STAINLESS)
1REFRIGERATOR DOOR (INCLUDES No.7) (STAINLESS STEEL)
1REFRIGERATOR DOOR (INCLUDES No.7) (BLACK)
1REFRIGERATOR DOOR (INCLUDES No.7) (WHITE)
2Trim, Door Shelf
3Dairy Door
4CADDY, CAN
7Door Gasket, Magnetic (Apollo Grey)
7GASKET, DOOR (BLACK)
7GASKET, DOOR (MIST BEIGE)
8WP2319727B Whirlpool Refrigerator Handle
8Handle, Door (Stainless Steel)
8WP2319727W Whirlpool Refrigerator Handle
9WPW10010150 Whirlpool Refrigerator Screw
9SCREW
10WP2223879 Whirlpool Refrigerator Compressor Door
11WPW10170540 Whirlpool Screw
12CLOSER, DOOR
13WP2182181 Whirlpool Refrigerator Thimble
14WPW10142233 Whirlpool Refrigerator Screw
152306940B Whirlpool Refrigerator Bracket
152306940 Whirlpool Refrigerator Bracket
16WP2223860 Whirlpool Refrigerator Door Shelf Bin
17WP3400012 Whirlpool Refrigerator Screw
18WP2224173 Whirlpool Refrigerator Cantilever Bin
19WPW10243392 Whirlpool Dishwasher Nameplate
19WPW10243393 Whirlpool Dishwasher Nameplate
19WPW10243391 Whirlpool Refrigerator Nameplate
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
