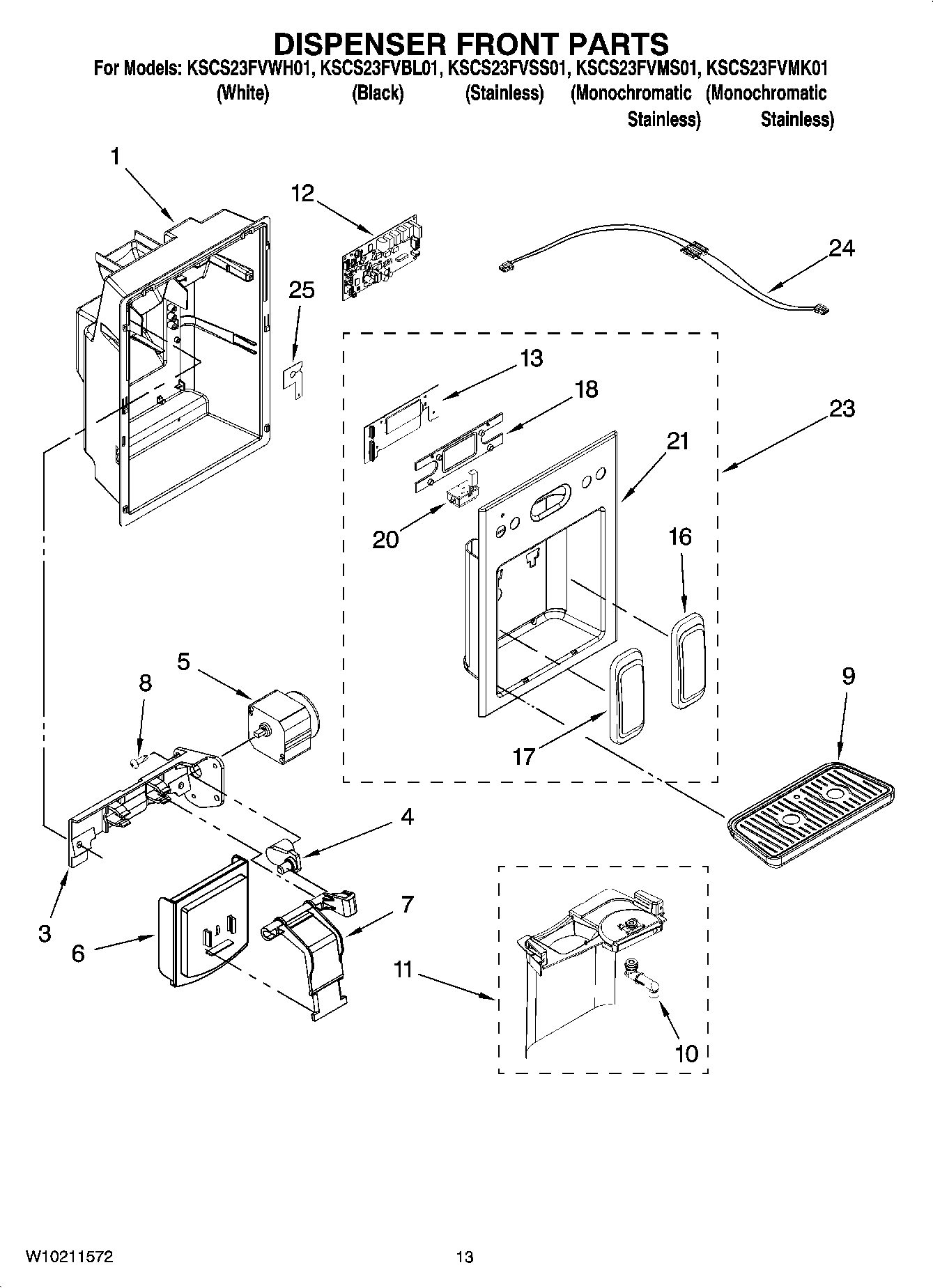

KSCS23FVMK01 08 – DISPENSER FRONT PARTSadmin2025-04-26T12:13:38+00:00KSCS23FVMK01 08 – DISPENSER FRONT PARTS
Products
| Position | Product |
|---|
| 1 | Housing Dispenser (Not Serviced) |
| 3 | WP2305202 Whirlpool Refrigerator Bracket |
| 4 | WP2305242 Whirlpool Refrigerator Connector |
| 5 | WPW10184813 Whirlpool Refrigerator Motor |
| 6 | WP2305258 Whirlpool Dispenser Door Assembly |
| 7 | WP2305204 Whirlpool Refrigerator Support |
| 8 | WP4449745 Whirlpool Screw |
| 9 | Trim, Housing (Nickel Alloy) |
| 9 | Trim, Housing (White) |
| 9 | Trim, Housing (Black) |
| 10 | Spigot |
| 11 | Seperator Assembly |
| 12 | WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core |
| 13 | 2305219 Whirlpool Refrigerator Cover |
| 16 | Pad, Water (White) |
| 17 | W10133603 Whirlpool Dispenser Actuator Pad Set |
| 17 | W10133606 Whirlpool Refrigerator Pad |
| 17 | Pad, Ice (White) |
| 18 | Lens, Front Cover |
| 20 | W10222215 Whirlpool Refrigerator Light Indicator |
| 21 | Front Cover, Housing (Not Available Order 23) |
| 23 | Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Black) |
| 23 | Front Cover Assembly (Includes Items 13,14,16,17,20&21) (Nickel One) |
| 23 | Front Cover Assembly (Includes Items 13,14,16,17,20&21) (White) |
| 24 | W10178851 Whirlpool Refrigerator Jumper Wire |
| 25 | 2305447 Whirlpool Refrigerator Clip |
