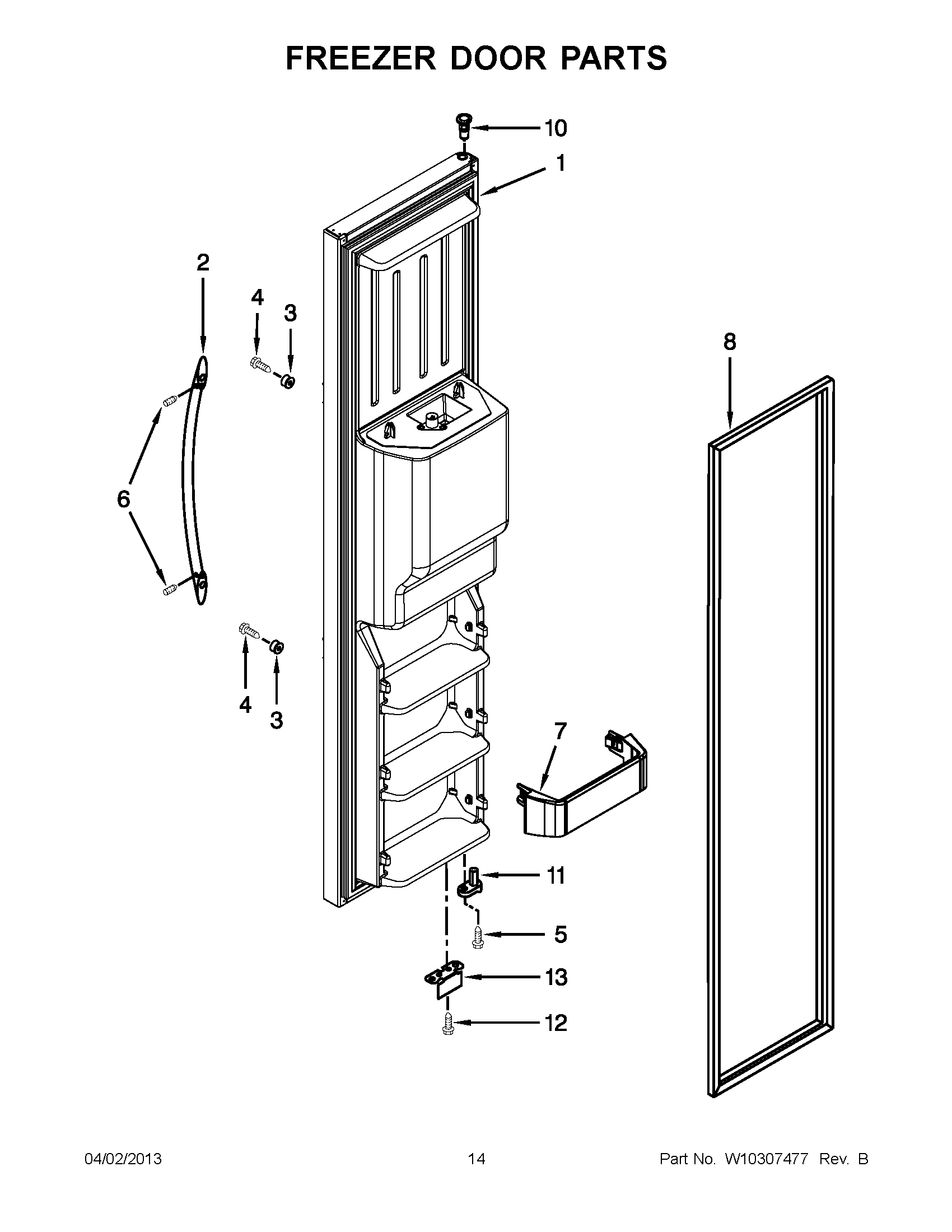

KSCS23FVMK02 07 – FREEZER DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	2310224 Whirlpool Dispense Harness
NI	TUBE, DOOR
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (MONO STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
2	WP2319727B Whirlpool Refrigerator Handle
2	WP2319727W Whirlpool Refrigerator Handle
2	Handle, Door (Stainless Steel)
3	WPW10170540 Whirlpool Screw
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WPW10010150 Whirlpool Refrigerator Screw
6	SCREW
7	Trivet (3)
8	Door Gasket, Magnetic (Apollo Grey)
8	GASKET, DOOR (BLACK)
8	GASKET, DOOR (MIST BEIGE)
10	WP2182181 Whirlpool Refrigerator Thimble
11	Door Closer, Upper Cam
12	WP489483 Whirlpool Screw
13	2306940 Whirlpool Refrigerator Bracket
13	2306940B Whirlpool Refrigerator Bracket
