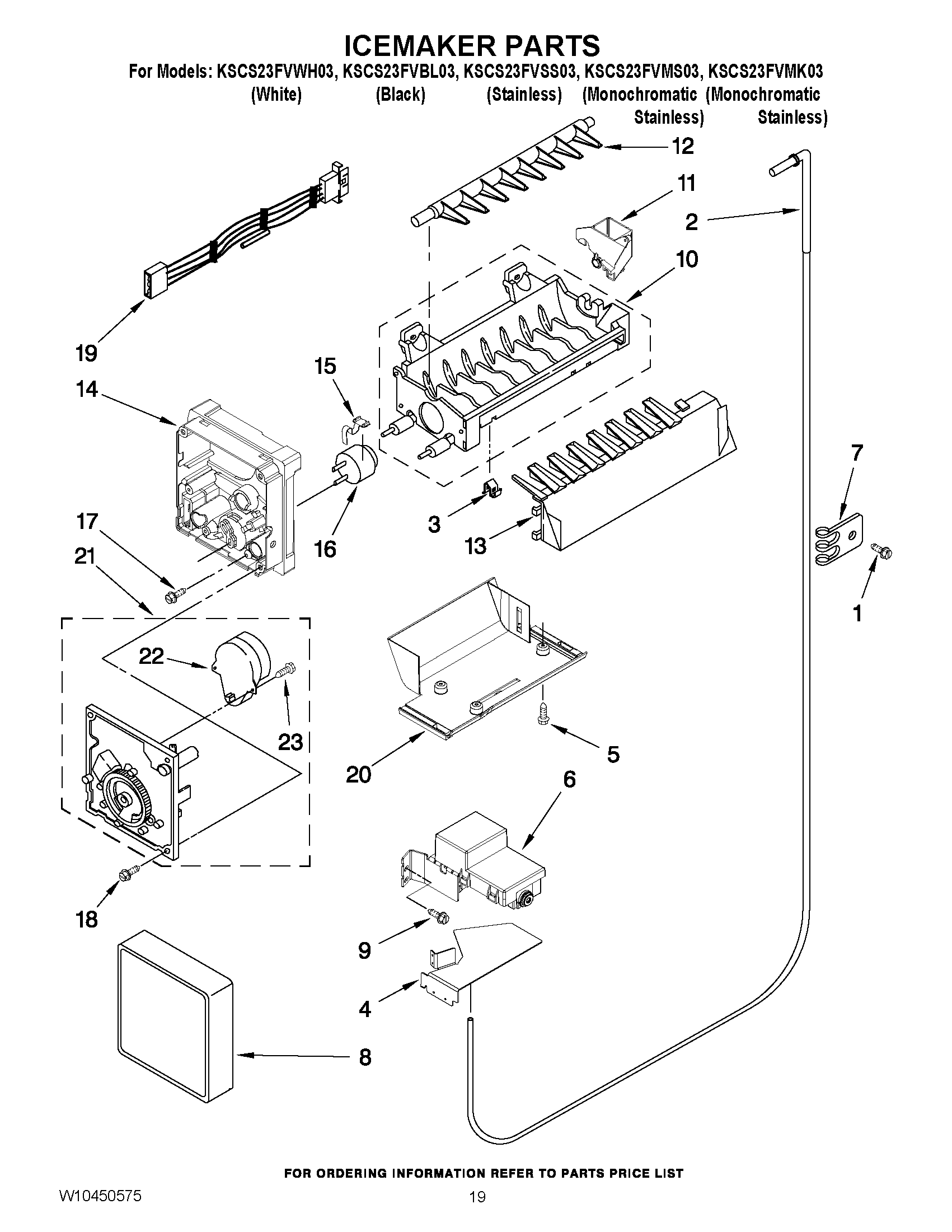

KSCS23FVMK03 12 – ICEMAKER PARTSadmin2025-04-26T12:15:57+00:00KSCS23FVMK03 12 – ICEMAKER PARTS ProductsPositionProduct1WP488729 Whirlpool Refrigerator Door Screw2Fitting, Water Tube3WP628379 Whirlpool Refrigerator Clip4SHIELD, VALVE ASSY5WP489478 Whirlpool Refrigerator Screw6WPW10159840 Whirlpool Refrigerator Valve7WP488366 Whirlpool Refrigerator Clamp8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11WPW10272168 Whirlpool Refrigerator Water Fill Cup12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10272161 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat178533917 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WP2187467 Whirlpool Refrigerator Wire Harness20BRACKET, ICEMAKER MOUNTING228201515 Whirlpool Refrigerator Motor and Gear Module Kit23Screw100W11512149 Whirlpool Ice Maker Assembly
