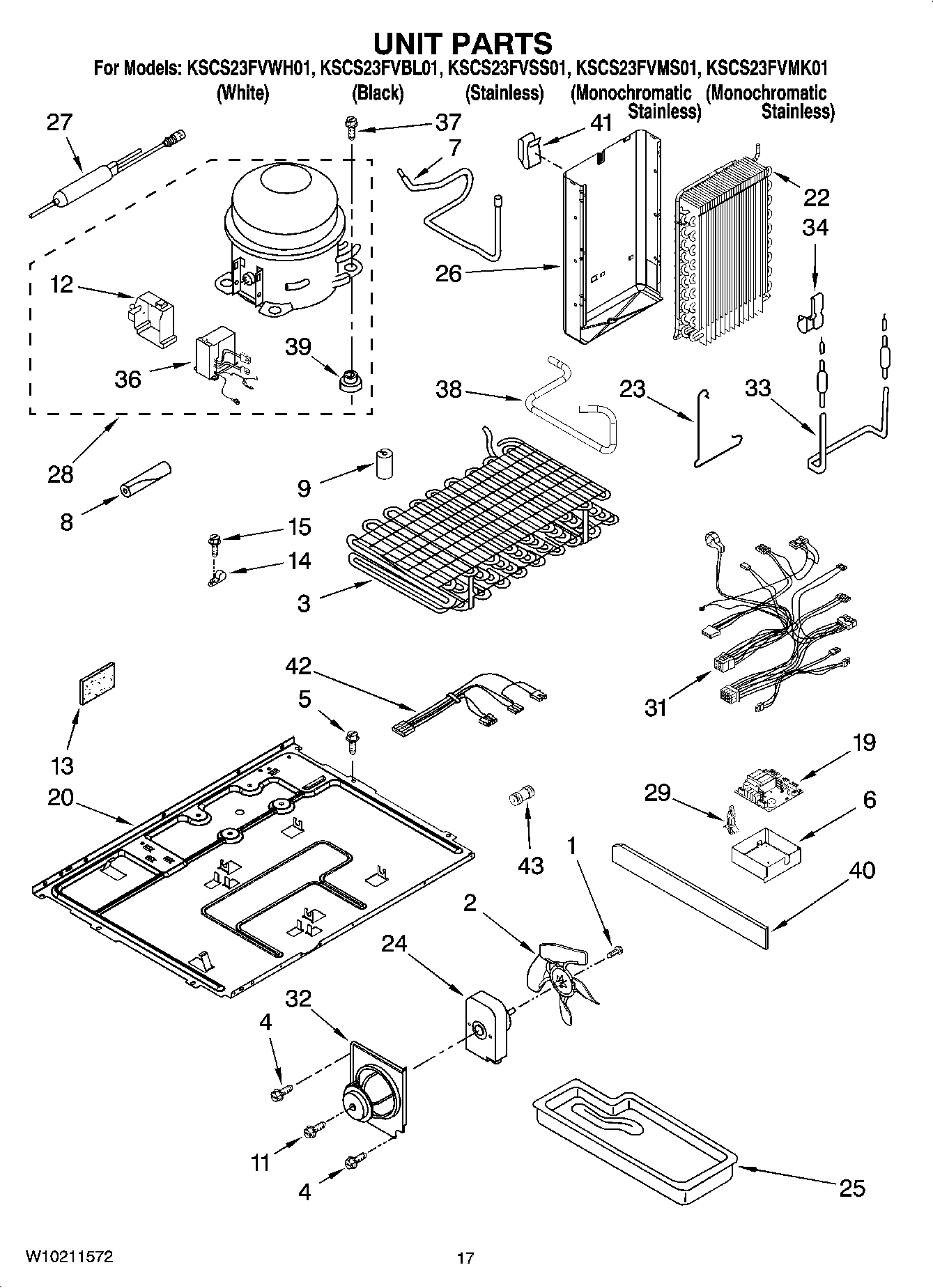

KSCS23FVMS01 11 – UNIT PARTS

KSCS23FVMS01 11 – UNIT PARTS

Written by

in

KSCS23FVMS01 11 – UNIT PARTS

Products

Position	Product
	WP978025 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	WP489427 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
11	WPW10171469 Whirlpool Refrigerator Screw
12	2215676 Whirlpool Refrigerator Terminal Cover
13	W11553819 Whirlpool Refrigerator Insulation
14	WPL 2305373
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
19	W10219463 Whirlpool Control Board + Core
20	Baseplate
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	SHIELD, HEAT
27	WPW10143759 Whirlpool Dryer Filter
28	W10276644 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
31	WP2310122 Whirlpool Refrigerator Wire Harness
32	BRACKET, FAN MOUNTING
33	Heater, Defrost
34	W11623163 Whirlpool Refrigerator Clip
36	WPW10154805 Whirlpool Refrigerator Inverter Box
38	Tube, Discharge
39	Grommet (4) (Service)
39	876811 Whirlpool Grommet
40	2223394 Whirlpool Extension
41	Clip, Heat Shield
42	2310121 Whirlpool Refrigerator Wire Harness
43	WP2300868 Whirlpool Refrigerator Fitting
