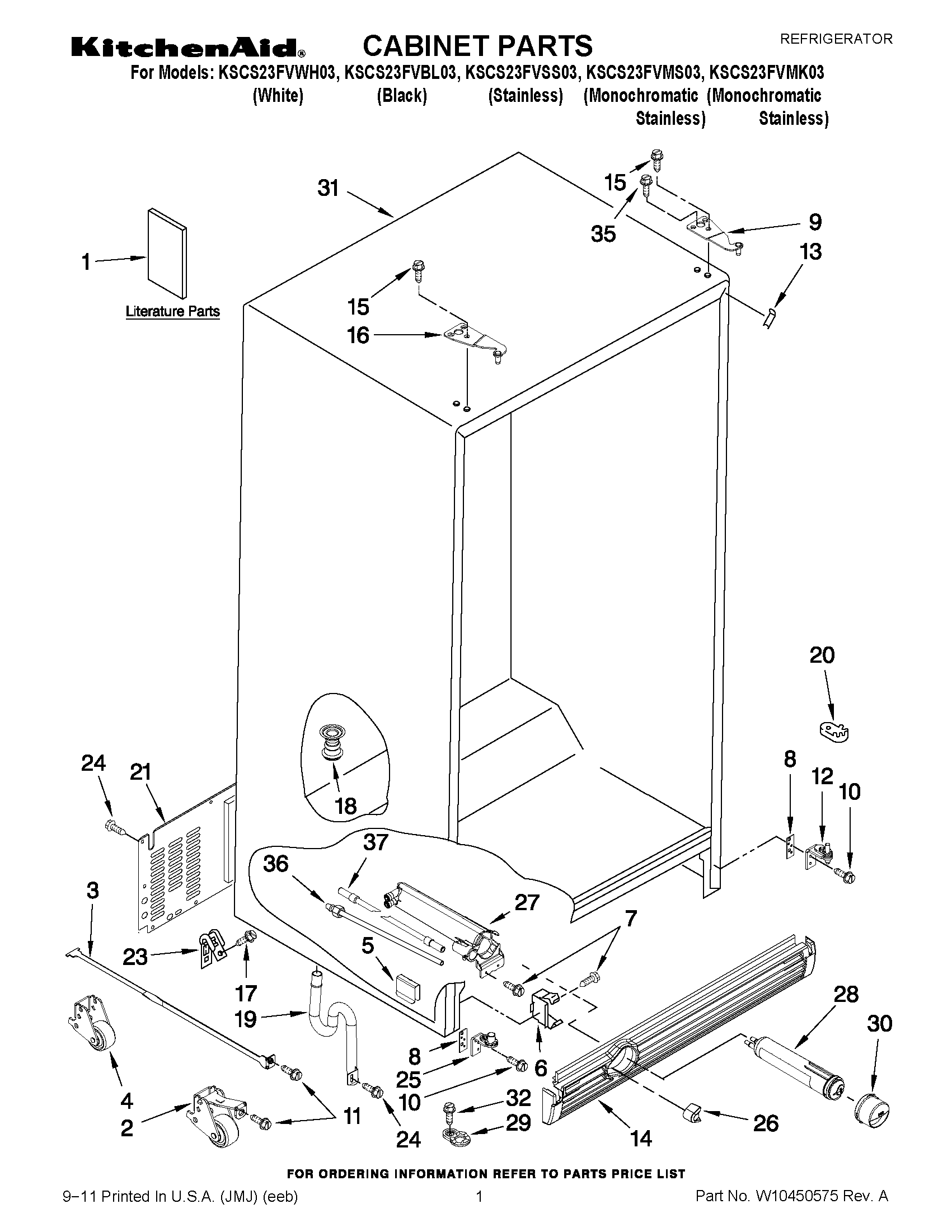

KSCS23FVMS03 01 – CABINET PARTS

Products

Position	Product
1	Installation Instructions
1	Service & Wiring Sheet
1	Energy Guide
1	Use & Care Guide
1	Modular Icemaker Service Sheet
2	FRONT ROLLER ASM (RIGHT SIDE)
2	FRONT ROLLER ASM (LEFT SIDE)
3	STRAP, ROLLER
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WPW10141604 Whirlpool Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008AP Whirlpool Refrigerator Hinge
9	2307008B Whirlpool Refrigerator Butt Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	2223893AP Whirlpool Refrigerator Filler
13	2223893W Whirlpool Refrigerator Filler
13	Filler, Wrapper (Black)
14	Grille (Midnight Grey)
14	Grille (Black)
14	Grille (White)
15	Screw
16	2307007B Whirlpool Refrigerator Butt Hinge
16	2307007AP Whirlpool Refrigerator Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Tube, Extension
20	WPL 2307049
21	Cover, Unit
23	549193 Whirlpool Refrigerator Power Clamp
24	SCREW
25	Hinge Assembly, Bottom-FC
26	2260503W Whirlpool Refrigerator Button
26	2260503MG Whirlpool Refrigerator Button
26	WP2260503B Whirlpool Refrigerator Button
28	WPW10121140 Whirlpool Refrigerator Housing
29	Door Closer, FC
30	WP2260518B Whirlpool Water Filter Cap
30	WP2260518MG Whirlpool Water Filter Cap
30	WP2260518W Whirlpool Refrigerator Filter Cap
31	CABINET (NOT A SERVICEABLE PART)
32	WP489483 Whirlpool Screw
35	W10853301 Whirlpool Refrigerator Screw
36	W11496481 Whirlpool Refrigerator Water Tube
37	TUBE, FILTER INLET
