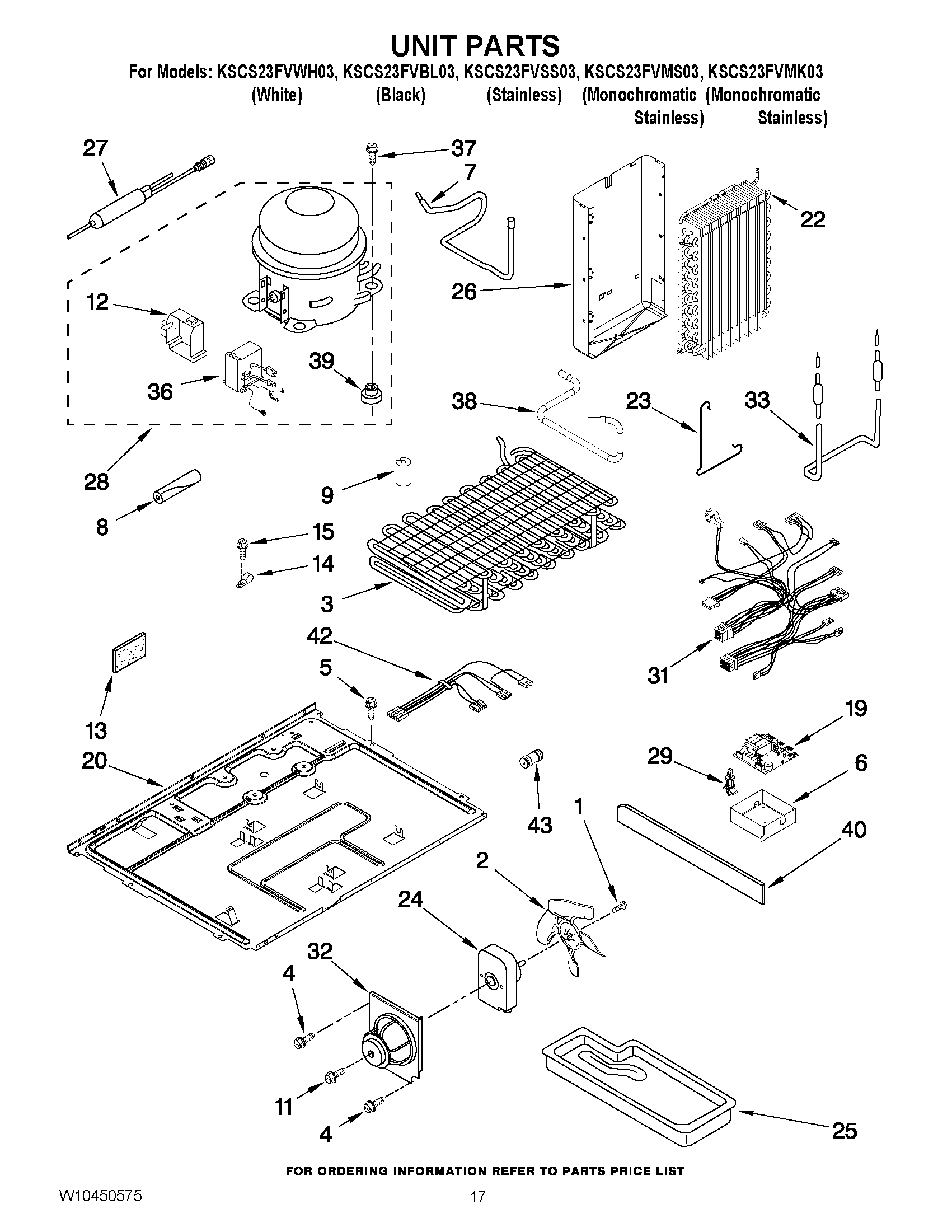

KSCS23FVSS03 11 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (5/8“)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
1	WP489399 Whirlpool Refrigerator Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	W10193018 Whirlpool Refrigerator Condenser
4	WP489427 Whirlpool Refrigerator Screw
5	BOLT
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
11	WPW10171469 Whirlpool Refrigerator Screw
12	2215676 Whirlpool Refrigerator Terminal Cover
13	W11553819 Whirlpool Refrigerator Insulation
14	WPL 2305373
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
19	W10219463 Whirlpool Control Board + Core
20	Baseplate
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	SHIELD, HEAT
27	DRIER
28	W10276644 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
31	WP2310122 Whirlpool Refrigerator Wire Harness
32	BRACKET, FAN MOUNTING
33	Heater, Defrost
36	WPW10154805 Whirlpool Refrigerator Inverter Box
38	W10858105 Whirlpool Refrigerator Tube
39	876811 Whirlpool Grommet
40	2223394 Whirlpool Extension
42	2310121 Whirlpool Refrigerator Wire Harness
43	WP2300868 Whirlpool Refrigerator Fitting
