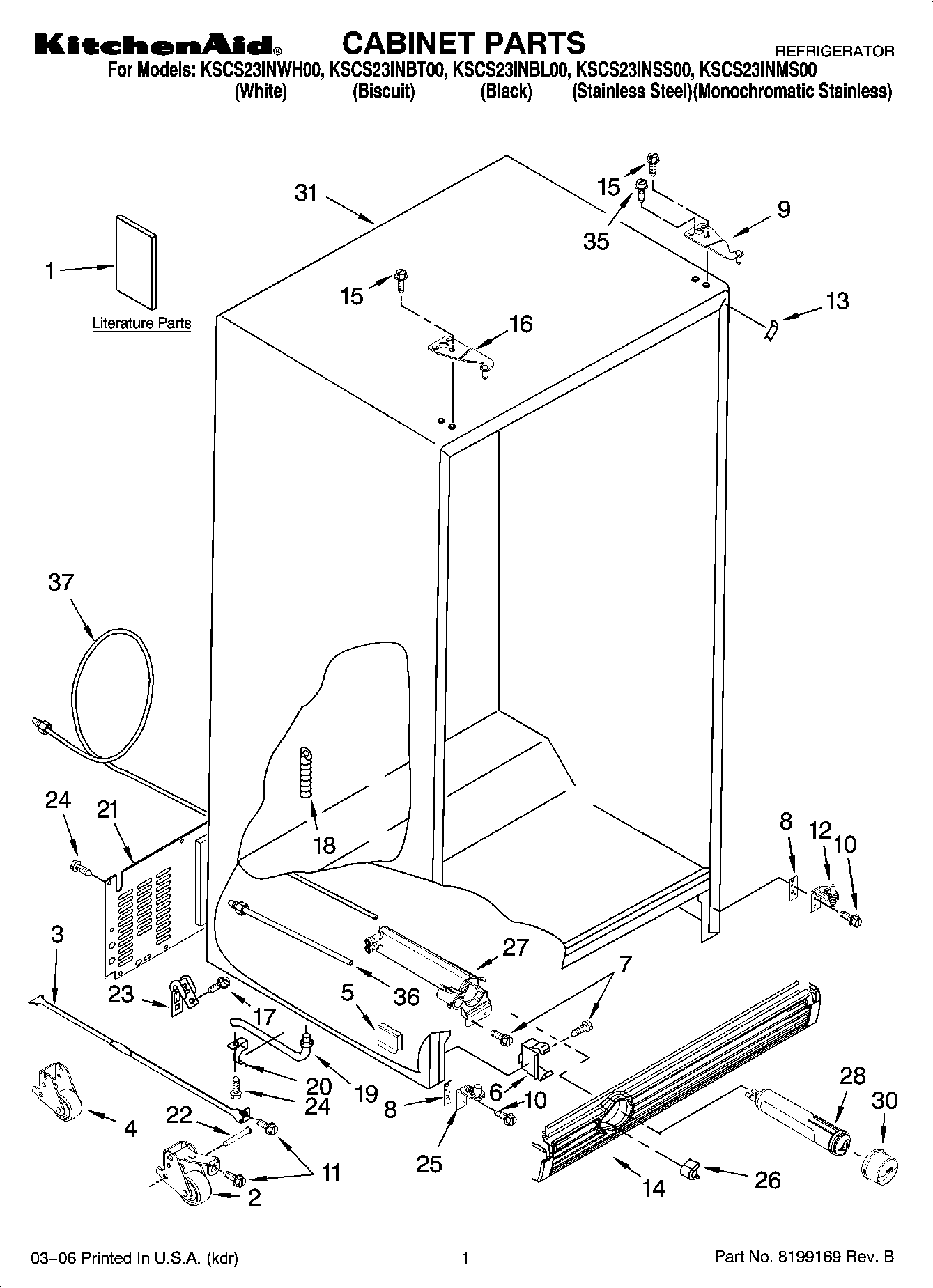

KSCS23INBL00 01 – CABINET PARTS

KSCS23INBL00 01 – CABINET PARTS

Written by

in

KSCS23INBL00 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1Service & Wiring Sheet
1Energy Guide
1Installation Instructions
1Use & Care Guide
2ASSEMBLY, FRONT ROLLER (LEFT HAND)
2ASSEMBLY, FRONT ROLLER (RIGHT HAND)
3Strap, Roller
4WPW10173132 Whirlpool Refrigerator Cabinet Roller
5W11545866 Whirlpool Refrigerator Clip
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
82223545 Whirlpool Refrigerator Shim
92307008AP Whirlpool Refrigerator Hinge
92307008B Whirlpool Refrigerator Butt Hinge
92307008T Whirlpool Refrigerator Butt Hinge
10WP489497 Whirlpool Screw
11W10151272 Whirlpool Refrigerator Screw
12Hinge Assembly, Bottom-RC
132223893W Whirlpool Refrigerator Filler
132223893AP Whirlpool Refrigerator Filler
13Filler, Wrapper (Black)
13Filler, Wrapper (Biscuit)
14Grille (White)
14Grille (Universal Silver)
14Grille (Biscuit)
14Grille (Black)
153400108 Whirlpool Refrigerator Screw
162307007B Whirlpool Refrigerator Butt Hinge
162307007T Whirlpool Refrigerator Butt Hinge
162307007AP Whirlpool Refrigerator Hinge
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19Extension Tube
20WP1108439 Whirlpool Refrigerator Clip
21Cover, Unit
22PIN, ROLLER
23549193 Whirlpool Refrigerator Power Clamp
25Hinge Assembly, Bottom-FC
26WP2260503B Whirlpool Refrigerator Button
262260503W Whirlpool Refrigerator Button
26WPL 2260503US
27WPW10121140 Whirlpool Refrigerator Housing
28FILTER 3-SINGLE TEAL
30Cap, Water Filter
30Cap, Water Filter (Biscuit)
30WP2260518W Whirlpool Refrigerator Filter Cap
30WP2260518B Whirlpool Water Filter Cap
31WPL ARI90756A5
35W10853301 Whirlpool Refrigerator Screw
36WPW10350006 Whirlpool Refrigerator Water Tube
378201597 Whirlpool Inlet Water Fill Tube Kit Filter
