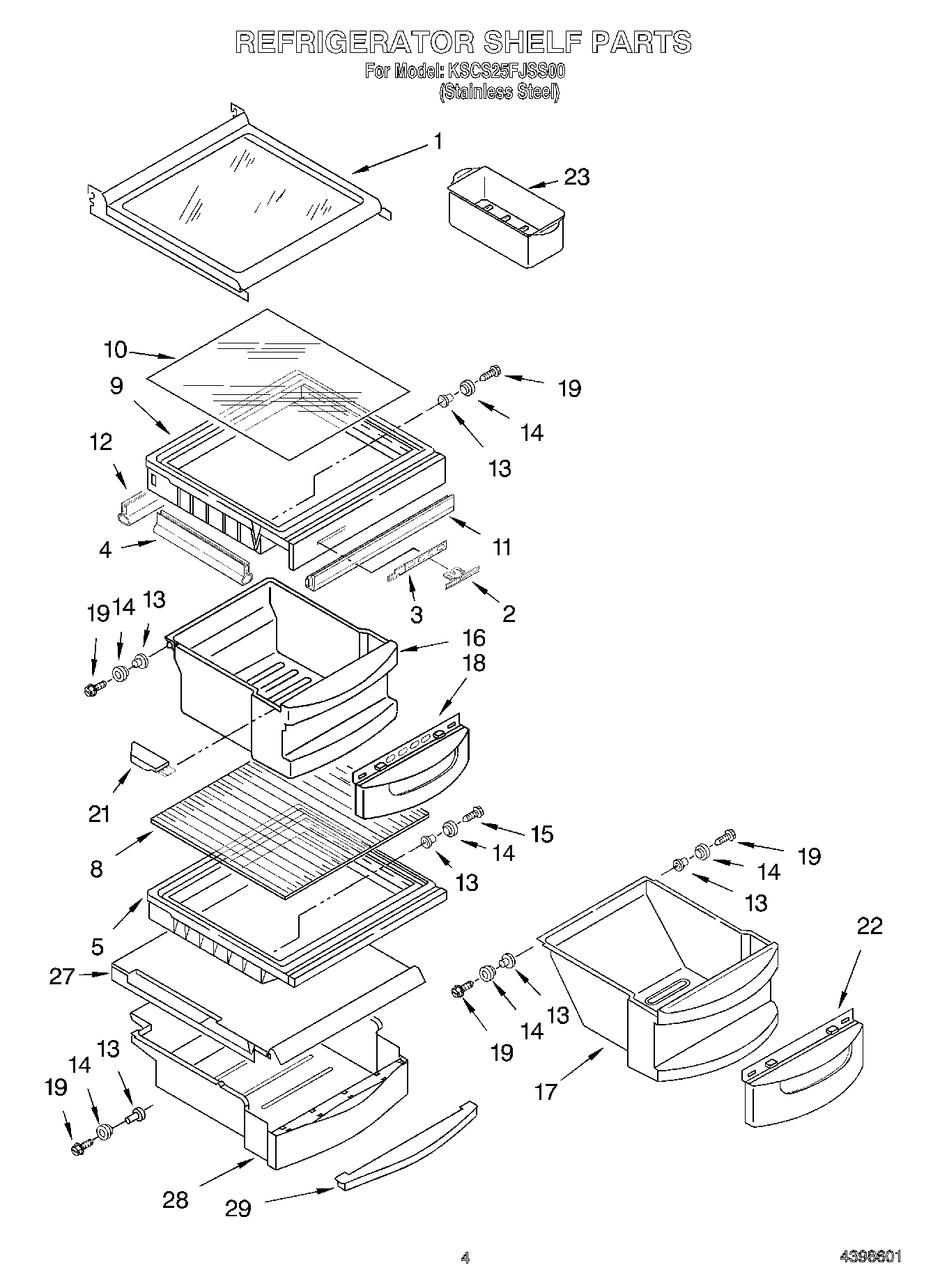

KSCS25FJSS00 03 – REFRIGERATOR SHELFadmin2025-04-26T12:12:05+00:00KSCS25FJSS00 03 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Cantilever (3) |
| 2 | Button, Humidity Control |
| 3 | 2174252 Whirlpool Refrigerator Slide |
| 4 | Gasket, Side (2) |
| 5 | Cover, Meat Pan (Includes Items 13, 14 & 15) |
| 8 | Glass, Cover |
| 9 | Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19) |
| 10 | Glass, Cover |
| 11 | WP1125528 Whirlpool Refrigerator Gasket |
| 12 | Gasket, (Rear) |
| 13 | Eyelet, Roller |
| 14 | Roller |
| 15 | WPW10272364 Whirlpool Refrigerator Screw |
| 16 | WP2179227 Whirlpool Refrigerator Crisper Pan |
| 19 | WP489261 Whirlpool Refrigerator Screw |
| 21 | Cap, Crisper (Left Side) |
| 21 | Cap, Crisper (Right Side) |
| 22 | Window, Crisper |
| 23 | W10136387A Whirlpool Refrigerator Egg Container |
| 27 | WPW10270150 Whirlpool Crisper Drawer Cover |
| 28 | Beverage Pan |
| 29 | HANDLE, MEAT PAN |
