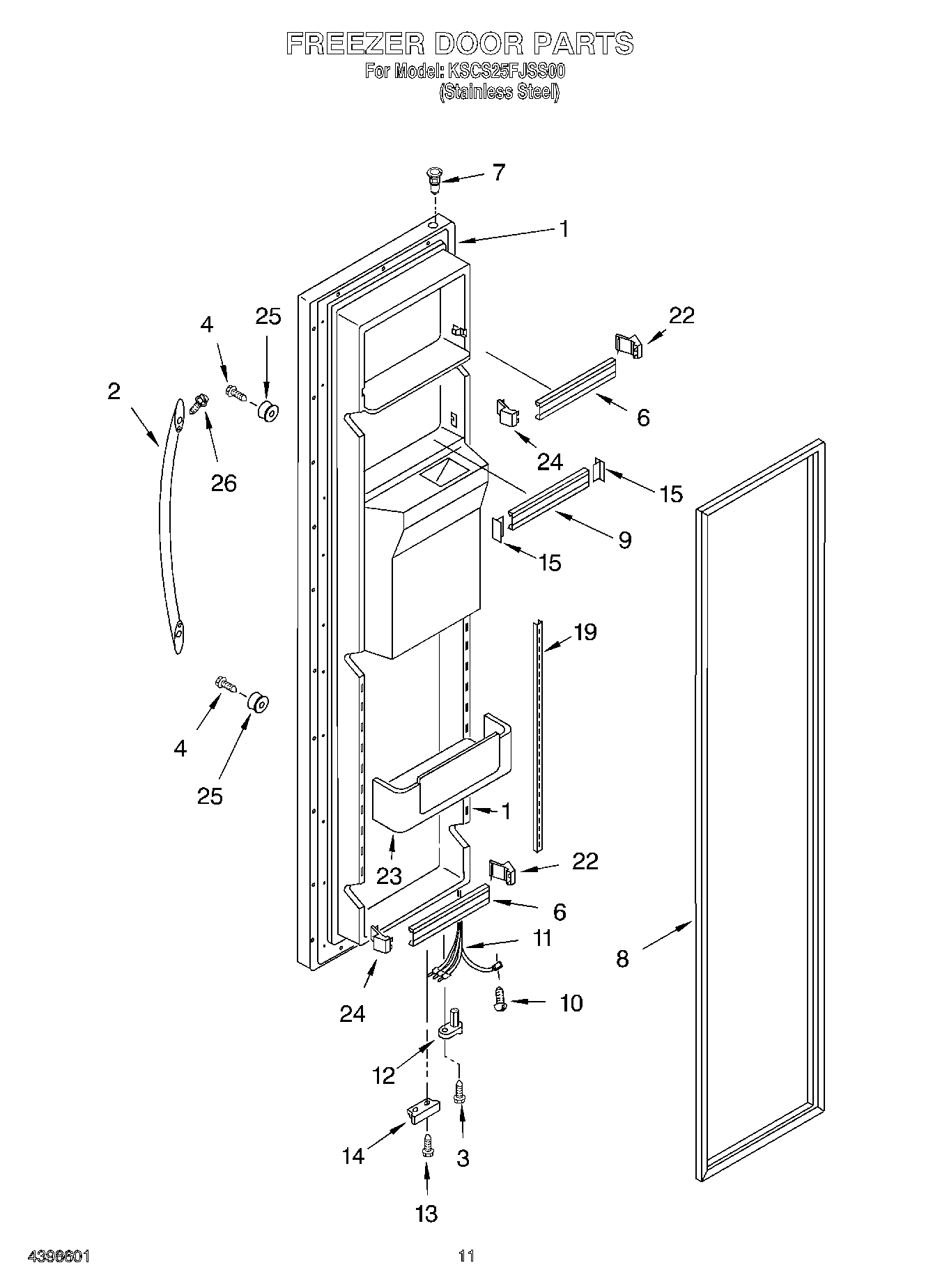

KSCS25FJSS00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless Steel)
2	Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	WP489491 Whirlpool Refrigerator Screw
6	Trim, Door Shelf
7	WP2182181 Whirlpool Refrigerator Thimble
8	Door Gasket, Magnetic (Service) (Black)
9	Trim, Door Shelf
10	Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19	Ladder, Shelf Assembly (2)
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
25	Stud, Handle
26	Setscrew, 10-32
