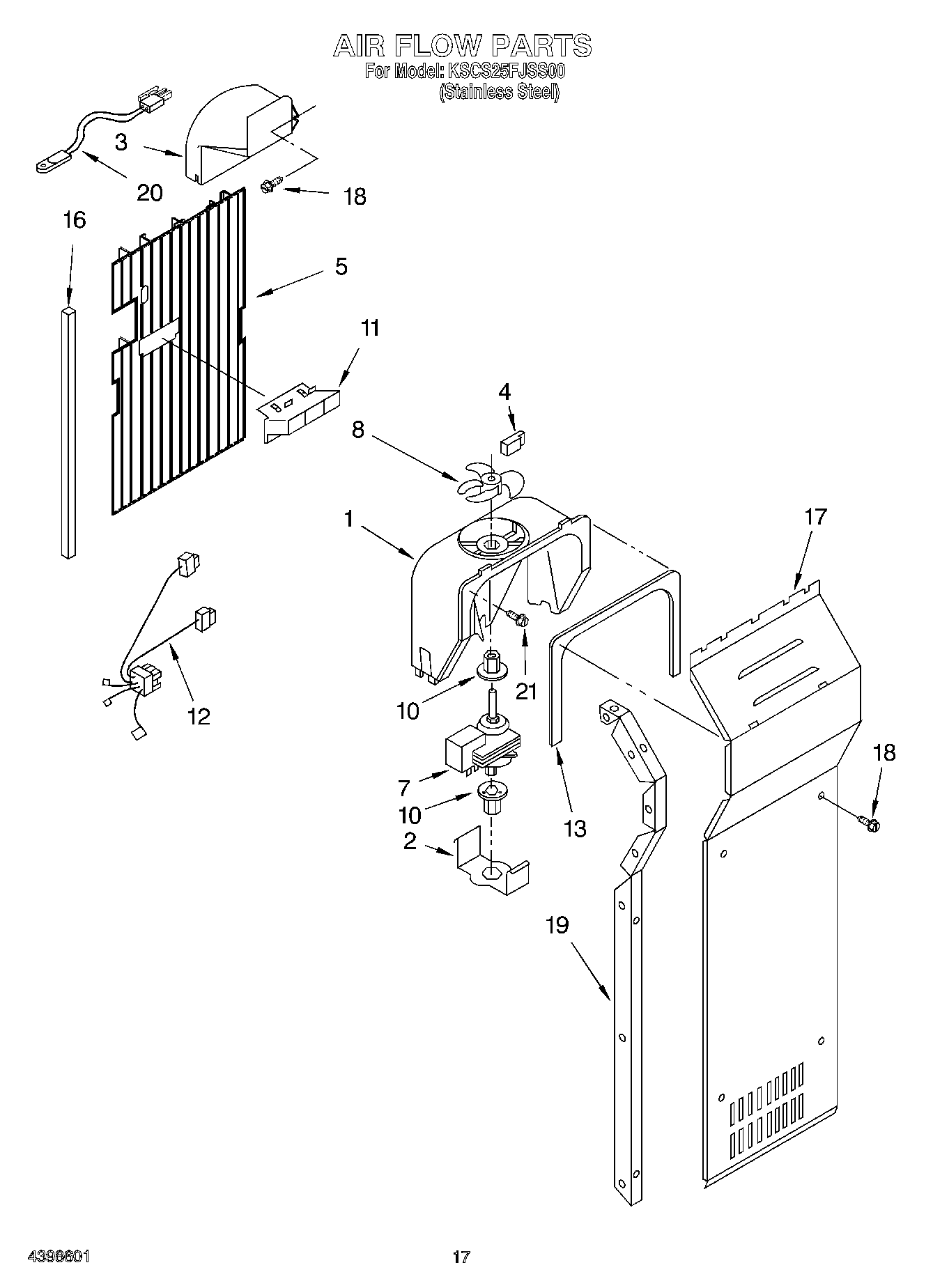

KSCS25FJSS00 10 – AIR FLOW

Products

Position	Product
1	WP2182120 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	Block, Fan Scroll
5	Air Duct Freezer
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
11	2182146 Whirlpool Refrigerator Duct
12	Harness, Fan Evaporator, And Heater, Bi-Metal
13	WP2155789 Whirlpool Refrigerator Gasket
16	4388500 Whirlpool Refrigerator Gasket
17	Cover, Evaporator
18	WP489464 Whirlpool Refrigerator Screw
19	Evaporator, Cover Rail (Left)
19	Evaporator, Cover Rail (Right)
20	Thermistor
21	WP489478 Whirlpool Refrigerator Screw
