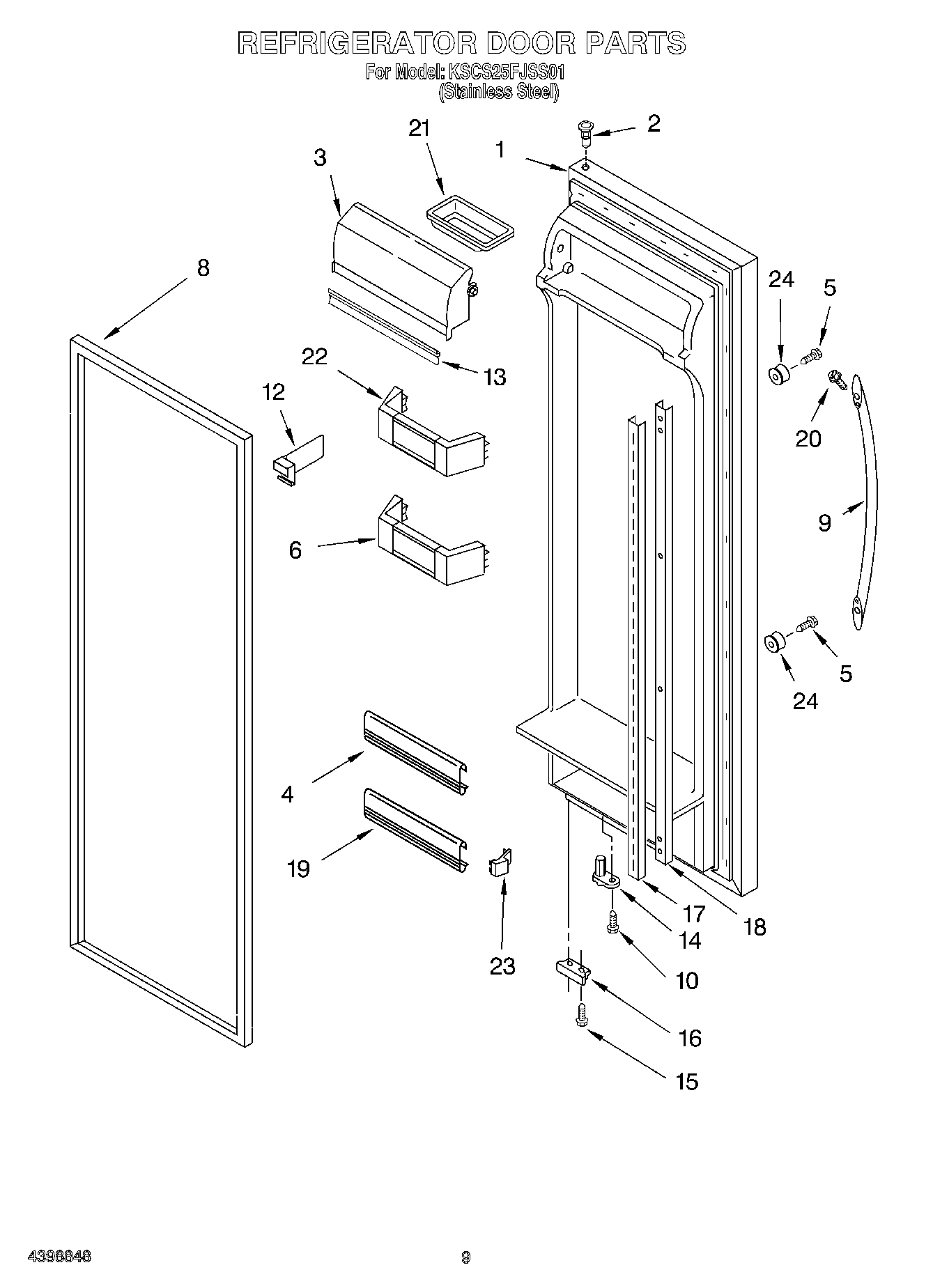

KSCS25FJSS01 06 – REFRIGERATOR DOORadmin2025-04-26T12:13:01+00:00KSCS25FJSS01 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.7) (Stainless Steel) |
| 2 | WP2182181 Whirlpool Refrigerator Thimble |
| 3 | WP2313637 Whirlpool Cutting Grid Assembly |
| 4 | WP2256010 Whirlpool Door Shelf Trim |
| 5 | WP489463 Whirlpool Refrigerator Screw |
| 6 | WP2257017 Whirlpool Refrigerator Cantilever Bin |
| 8 | Door Gasket, Magnetic (Service) (Black) |
| 9 | Handle |
| 10 | WP3400012 Whirlpool Refrigerator Screw |
| 12 | Divider, Bin |
| 13 | Gasket, Door Compartment |
| 14 | WP2182179 Whirlpool Cam Closer |
| 15 | WP489483 Whirlpool Screw |
| 16 | Bracket, Door Stop (Black) |
| 17 | Retainer, Shelf Ladder (2) |
| 18 | Ladder, Shelf (2) |
| 19 | Trim, Door Shelf |
| 20 | Setscrew, 10-32 |
| 21 | Butter Tray |
| 22 | Bin, Door (3) |
| 23 | ENDCAP |
| 24 | Stud, Handle |
