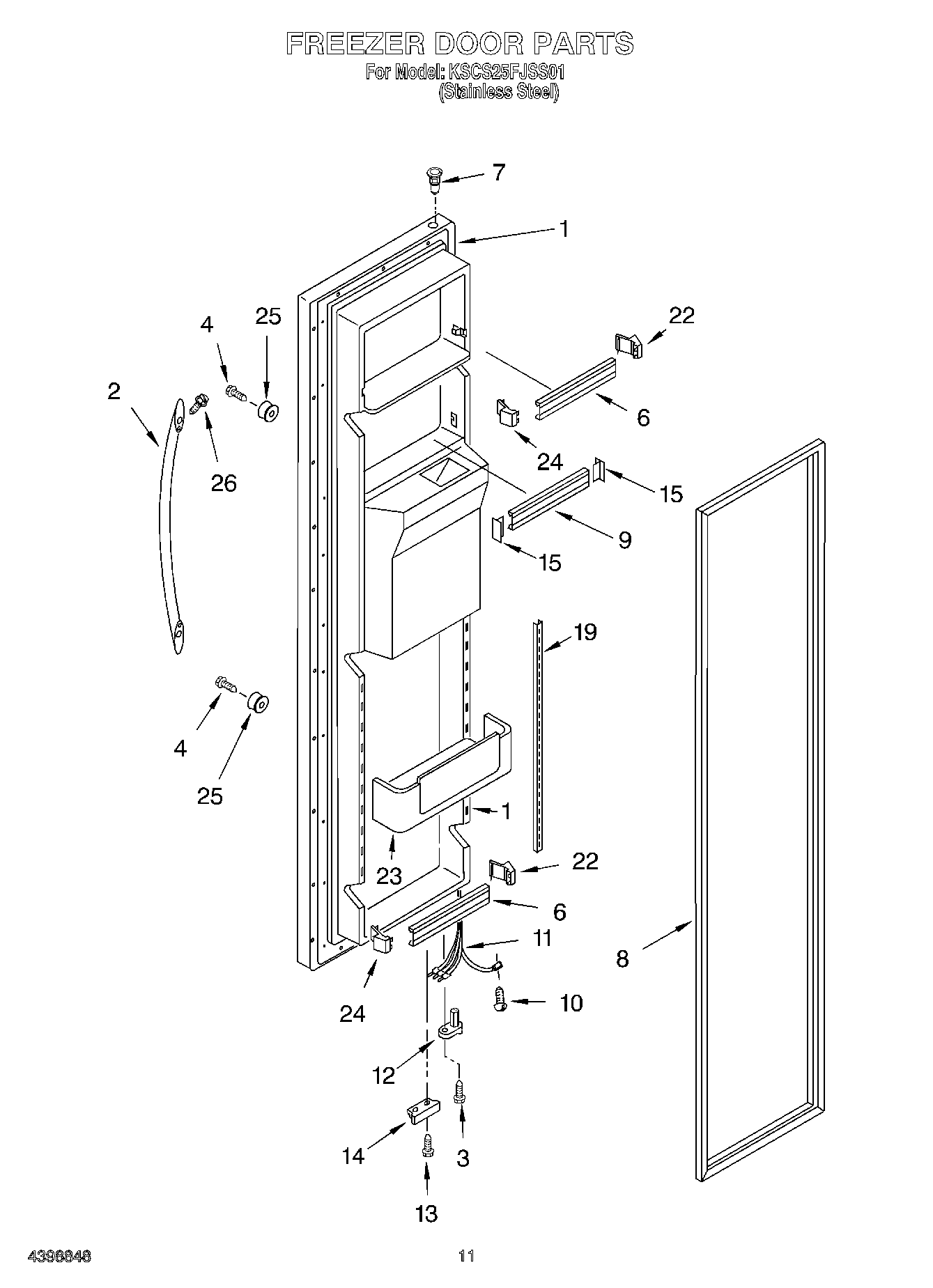

KSCS25FJSS01 07 – FREEZER DOOR

KSCS25FJSS01 07 – FREEZER DOOR

Written by

in

KSCS25FJSS01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless Steel)
2Handle
3WP3400012 Whirlpool Refrigerator Screw
4WP489491 Whirlpool Refrigerator Screw
6Trim, Door Shelf
7WP2182181 Whirlpool Refrigerator Thimble
8Door Gasket, Magnetic (Service) (Black)
9Trim, Door Shelf
10Screw
11Wiring Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
15WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
19Ladder, Shelf Assembly (2)
22ENDCAP
23Bin, Door (2)
24WP2195917K Whirlpool Refrigerator Endcap
25Stud, Handle
26Setscrew, 10-32
