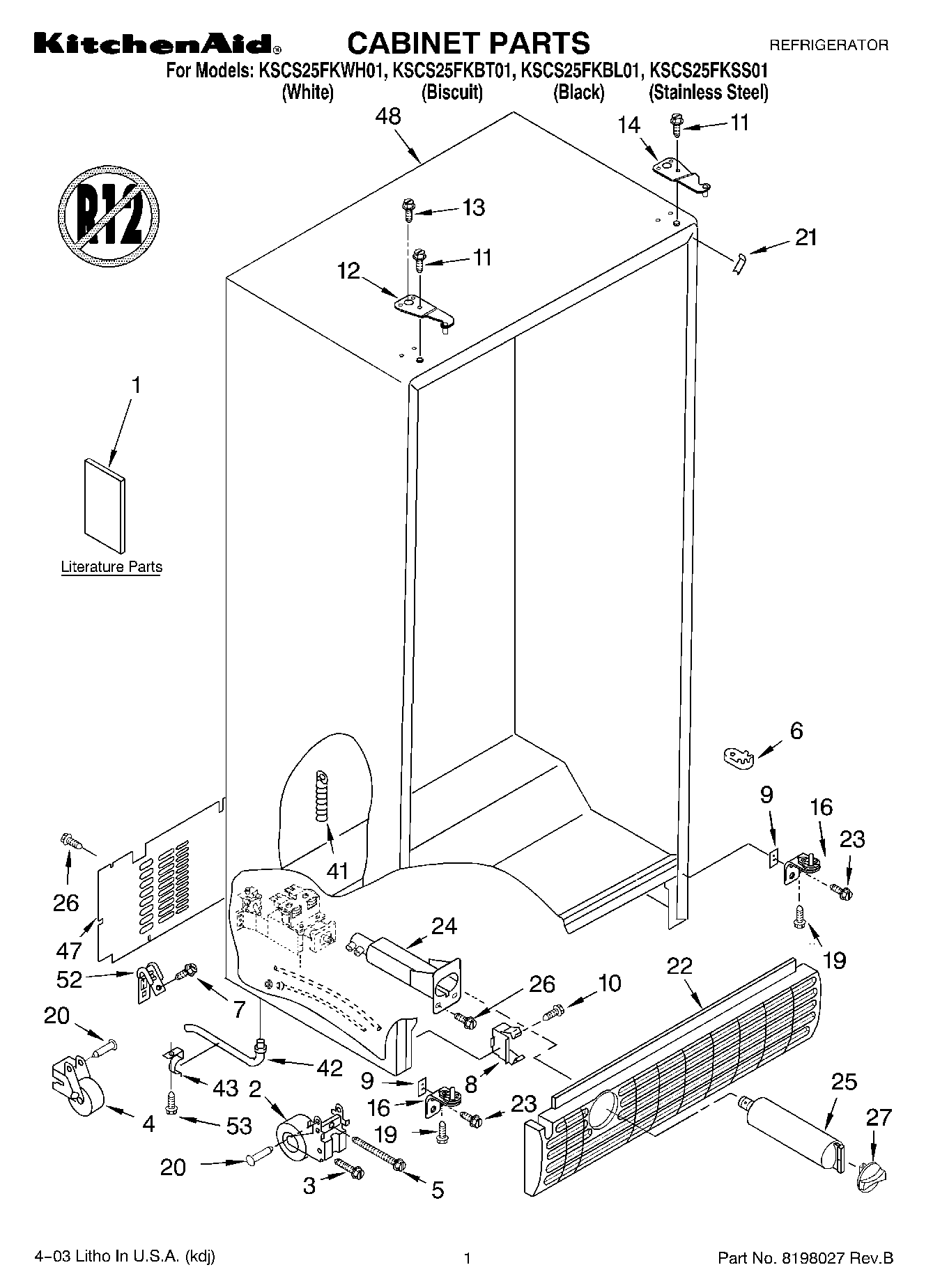

KSCS25FKBL01 01 – CABINET PARTS

Products

Position	Product
	LITERATURE PARTS
1	Literature Parts (Energy Label)
1	Literature Parts (Use & Care Guide)
1	Modular Icemaker Service Sheet
1	LITERATURE PARTS (Service & Wiring Sheet)
2	Front Roller (2)
3	Bolt
4	Roller (Rear) (2)
5	Bolt
6	WPW10329686 Whirlpool Door Cam Black
8	Clip, Grille
9	WP2181911 Whirlpool Refrigerator Shim
10	Screw
11	3400108 Whirlpool Refrigerator Screw
12	2307007AP Whirlpool Refrigerator Hinge
12	2307007T Whirlpool Refrigerator Butt Hinge
12	2307007B Whirlpool Refrigerator Butt Hinge
13	W10853301 Whirlpool Refrigerator Screw
14	2307008B Whirlpool Refrigerator Butt Hinge
14	2307008T Whirlpool Refrigerator Butt Hinge
14	2307008AP Whirlpool Refrigerator Hinge
16	Hinge & Cam Assy.
19	W10856122 Whirlpool Refrigerator Screw
20	W11594405 Whirlpool Axle
21	Filler, Wrapper (White)
21	Filler, Wrapper (Biscuit)
21	Filler, Wrapper (Black)
22	Grille (Biscuit)
22	Grille (White)
22	Grille (Black)
23	WP489497 Whirlpool Screw
24	WP2199840 Whirlpool Refrigerator Housing
25	EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
26	WP489478 Whirlpool Refrigerator Screw
27	WP2186494B Whirlpool Refrigerator Filter Cap
27	WP2186494T Whirlpool Water Filter Cap
27	WP2186494W Whirlpool Water Filter Cap
41	W11566763 Whirlpool Fitting
42	Extension Tube
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
52	549193 Whirlpool Refrigerator Power Clamp
