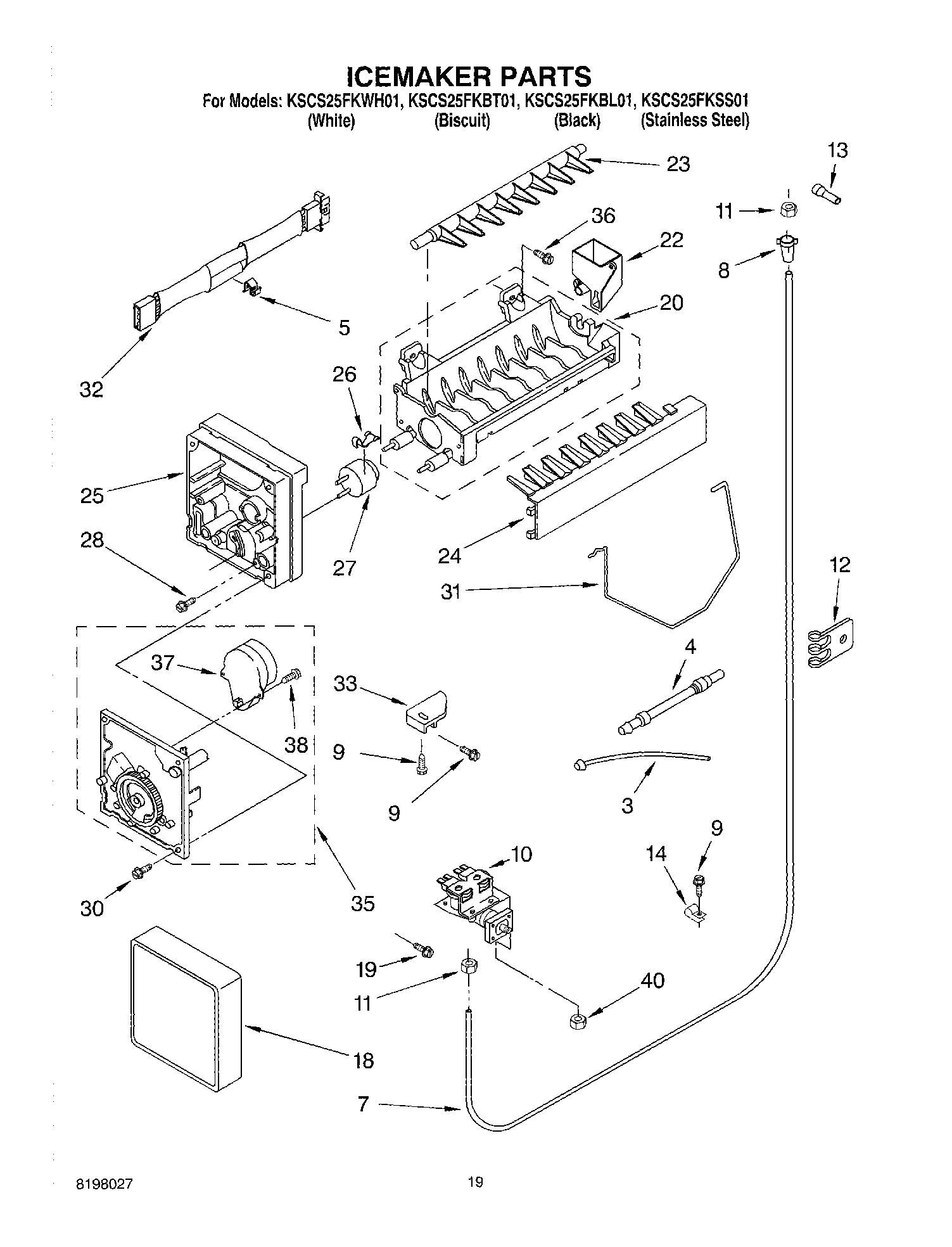

KSCS25FKBT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

KSCS25FKBT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

KSCS25FKBT01 12 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
WPL ARI91037A4
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
876370 Whirlpool Refrigerator Insulation
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
511873 Whirlpool Refrigerator Paint
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL ARI91036A4
WPL ARI91035A5
WPL ARI91034A8
Ice Contianer Assembly
Ice Crusher Mechanism Assembly
Cleaner, Stainless Steel
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WPL 876029
WPL 799833
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
WPL ARI91038A6
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
3W11496481 Whirlpool Refrigerator Water Tube
4Tube, Filter Inlet
5WP628379 Whirlpool Refrigerator Clip
7W10823511 Whirlpool Refrigerator Water Tube
84387491 Whirlpool Refrigerator Insert
9WP489478 Whirlpool Refrigerator Screw
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
12WP488366 Whirlpool Refrigerator Clamp
13Tube, Water Inlet
14WP488878 Whirlpool Refrigerator Tube Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
32WP2187464 Whirlpool Refrigerator Wire Harness
33W11500948 Whirlpool Refrigerator Bracket
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
36WP488163 Whirlpool Refrigerator Screw
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
40Nut, Compression
1004317943 Whirlpool Refrigerator Ice Maker Assembly
