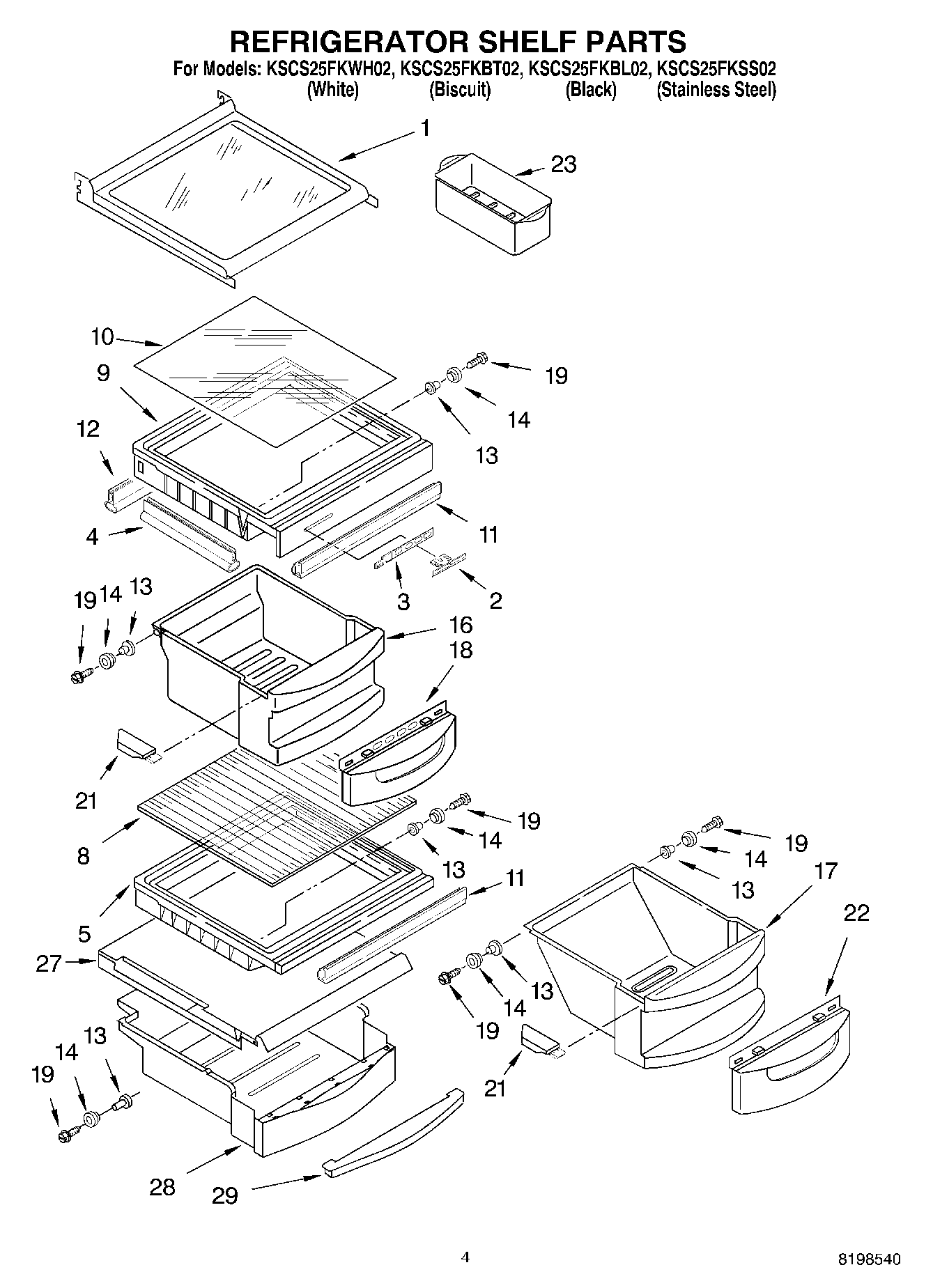

KSCS25FKBT02 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Shelf Assembly, Cantilever (3)
2	Button, Humidity Control
3	2174252 Whirlpool Refrigerator Slide
4	Gasket, Side (2)
5	Cover, Meat Pan (Includes Items 13, 14 & 15)
8	Glass, Cover
9	Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
10	Glass, Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, (Rear)
13	Eyelet, Roller
14	Roller
16	WP2179227 Whirlpool Refrigerator Crisper Pan
19	WP489261 Whirlpool Refrigerator Screw
21	Cap, Crisper (Right Side)
21	Cap, Crisper (Left Side)
22	Window, Crisper
23	W10136387A Whirlpool Refrigerator Egg Container
27	WPW10270150 Whirlpool Crisper Drawer Cover
28	Beverage Pan
29	HANDLE, MEAT PAN
