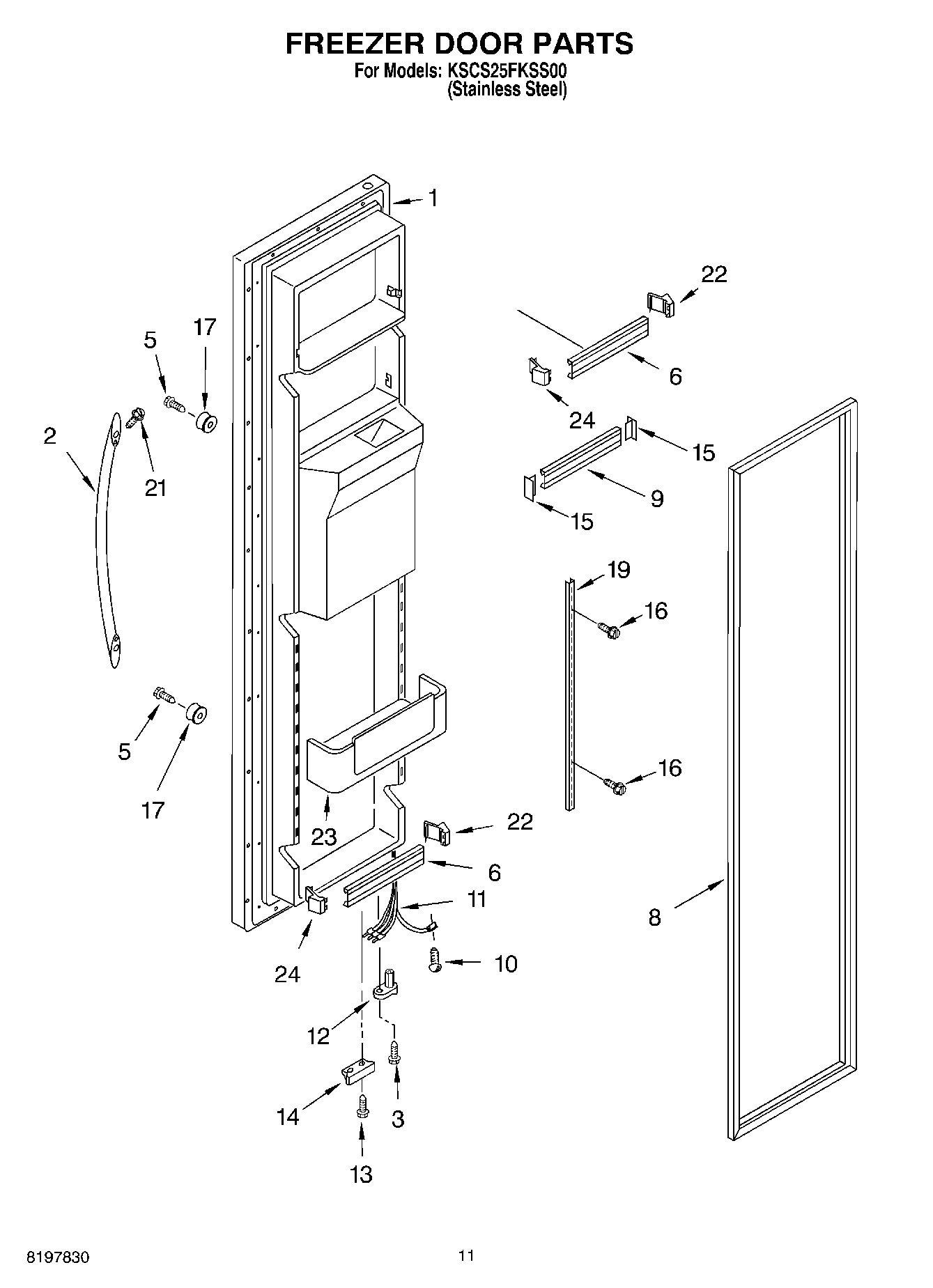

KSCS25FKSS00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle (Stainless Steel)
3	WP3400012 Whirlpool Refrigerator Screw
5	WP488163 Whirlpool Refrigerator Screw
6	Trim, Door Shelf
8	Door Gasket, Magnetic (Black)
9	Trim, Door Shelf
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Stud, Handle
19	Ladder, Shelf Assembly (2)
21	Setscrew, 10-32
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
