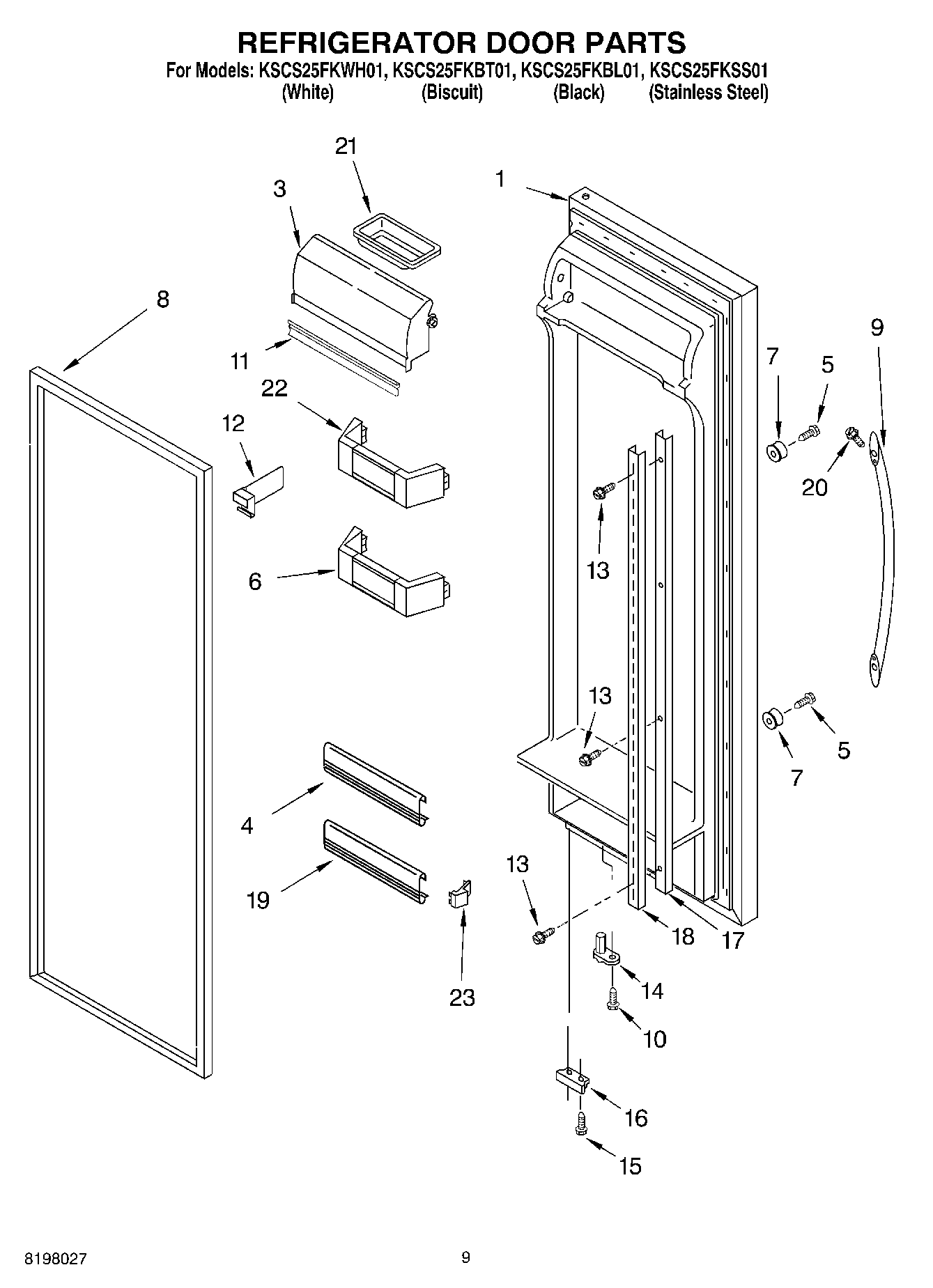

KSCS25FKSS01 06 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:14:13+00:00KSCS25FKSS01 06 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 8) (White) |
| 1 | Refrigerator Door (Includes Item 8) (Black) |
| 1 | Refrigerator Door (Includes Item 8) (Stainless Steel) |
| 1 | Refrigerator Door (Includes Item 8) (Biscuit) |
| 3 | Door, Compartment |
| 4 | WP2256010 Whirlpool Door Shelf Trim |
| 5 | WP488163 Whirlpool Refrigerator Screw |
| 6 | WP2257017 Whirlpool Refrigerator Cantilever Bin |
| 7 | Stud, Handle |
| 8 | Door Gasket, Magnetic (Mist Beige) |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Handle (Stainless Steel) |
| 9 | Handle (White) |
| 9 | Handle (Biscuit) |
| 9 | Handle (Black) |
| 10 | WP3400012 Whirlpool Refrigerator Screw |
| 11 | Gasket, Door Compartment |
| 12 | Divider, Bin |
| 14 | WP2182179 Whirlpool Cam Closer |
| 15 | WP489483 Whirlpool Screw |
| 16 | Bracket, Door Stop (Black) |
| 16 | Bracket, Door Stop (Chrome) |
| 17 | Retainer, Shelf Ladder (2) |
| 18 | Ladder, Shelf (2) |
| 19 | Trim, Door Shelf |
| 20 | Setscrew, 10-32 |
| 21 | Butter Tray |
| 22 | Bin, Door (3) |
| 23 | ENDCAP |
