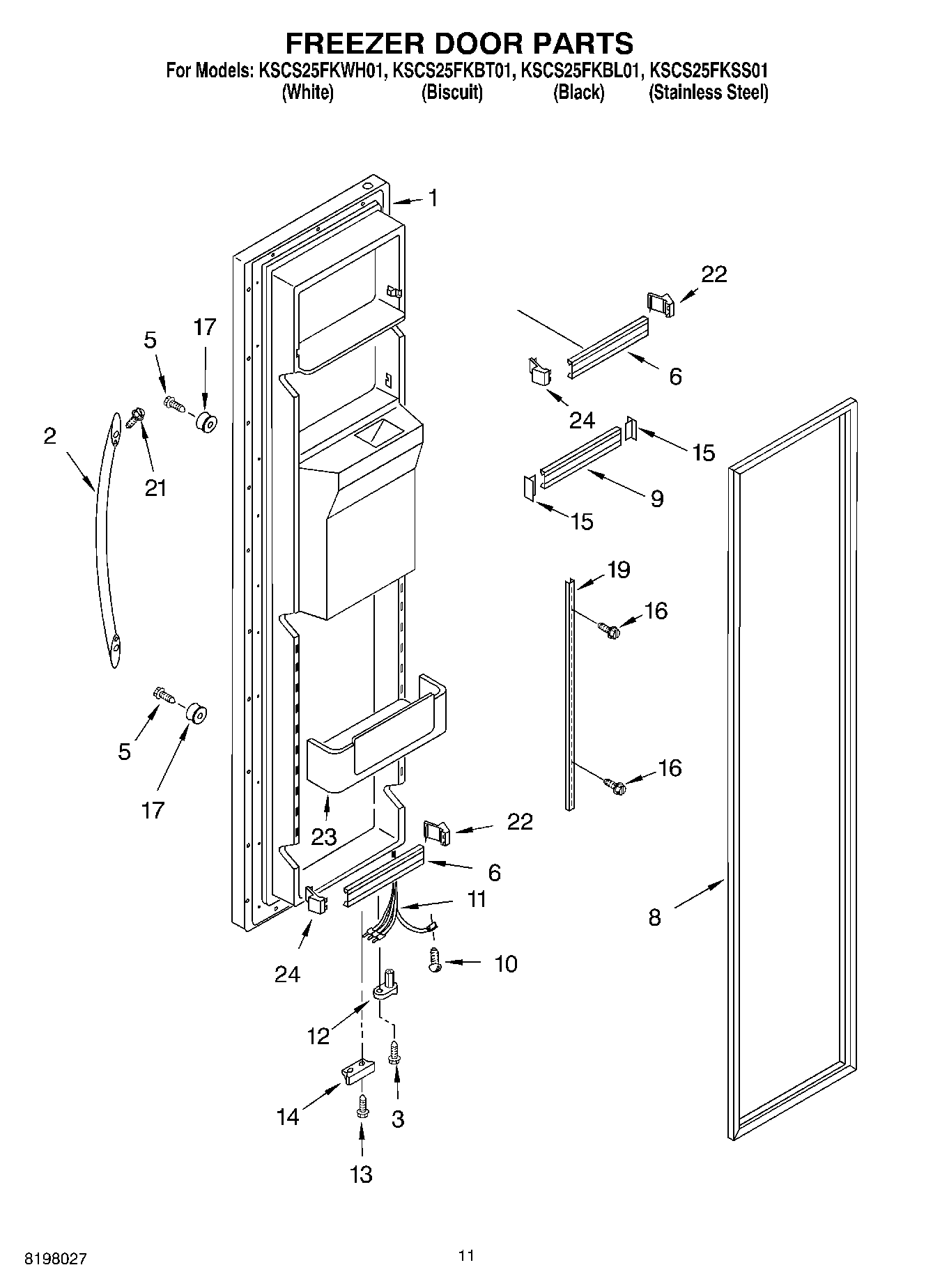

KSCS25FKSS01 07 – FREEZER DOOR PARTSadmin2025-04-26T12:14:27+00:00KSCS25FKSS01 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item 8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit) |
| 1 | Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel) |
| 2 | Handle (Stainless Steel) |
| 2 | Handle (Black) |
| 2 | Handle (White) |
| 2 | Handle (Biscuit) |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 5 | WP488163 Whirlpool Refrigerator Screw |
| 6 | Trim, Door Shelf |
| 8 | Door Gasket, Magnetic (Black) |
| 8 | Door Gasket, Magnetic (Mist Beige) |
| 9 | Trim, Door Shelf |
| 10 | WP489128 Whirlpool Refrigerator Screw |
| 11 | Wiring Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Chrome) |
| 14 | Bracket, Door Stop (Black) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 17 | Stud, Handle |
| 19 | Ladder, Shelf Assembly (2) |
| 21 | Setscrew, 10-32 |
| 22 | ENDCAP |
| 23 | Bin, Door (2) |
| 24 | WP2195917K Whirlpool Refrigerator Endcap |
