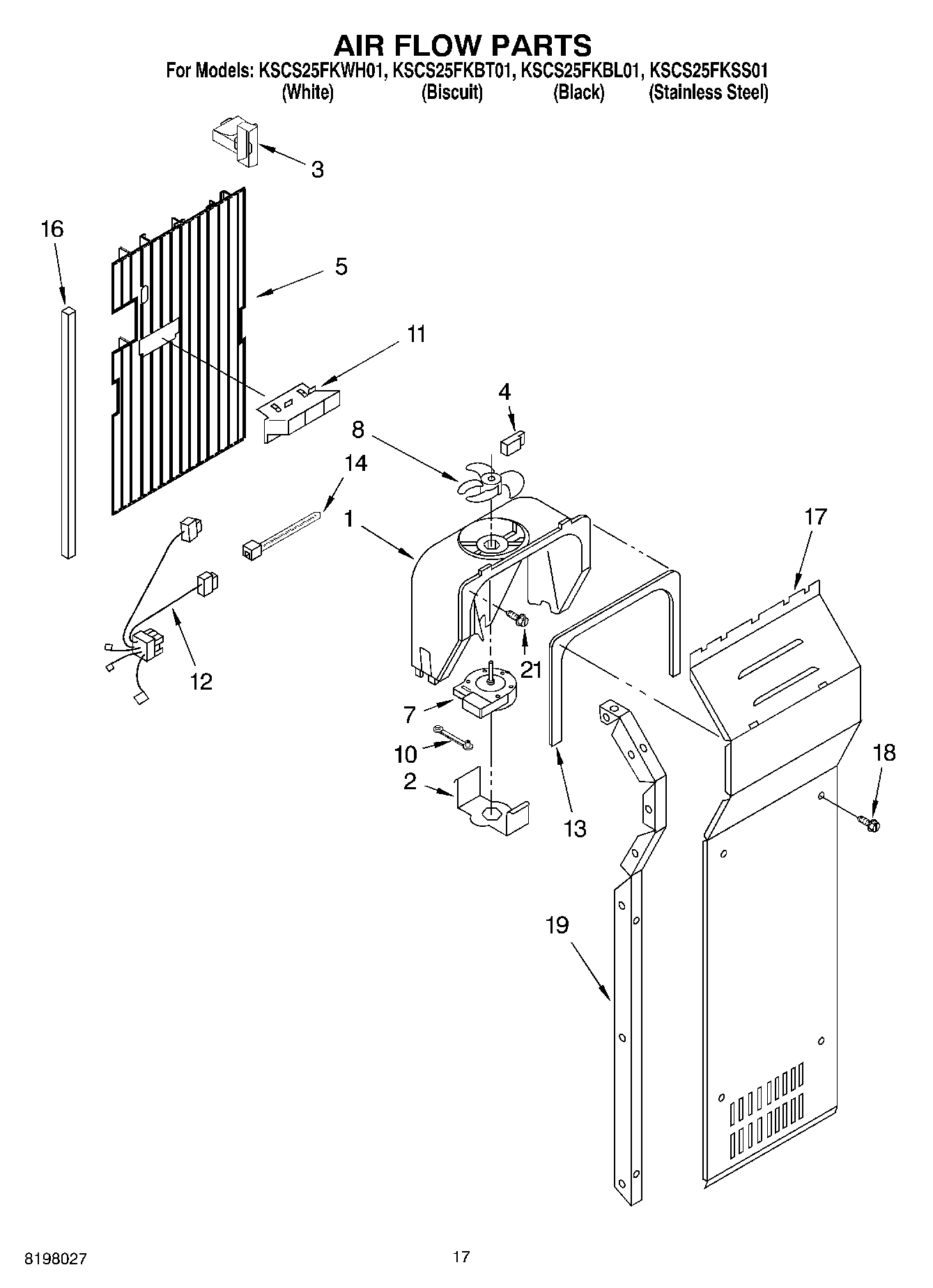

KSCS25FKSS01 10 – AIR FLOW PARTS

KSCS25FKSS01 10 – AIR FLOW PARTS

Written by

in

KSCS25FKSS01 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4Block, Fan Scroll
5Air Duct Freezer
78201589 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
108201663 Whirlpool Refrigerator Primary Fan Blade
112182146 Whirlpool Refrigerator Duct
12Harness, Fan Evaporator, And Heater, Bi-Metal
13WP2155789 Whirlpool Refrigerator Gasket
14WPW10339879 Whirlpool Wire Tie
16Gasket
17Cover, Evaporator
18WP489464 Whirlpool Refrigerator Screw
19Evaporator, Cover Rail (Right)
19Evaporator, Cover Rail (Left)
21WP489478 Whirlpool Refrigerator Screw
