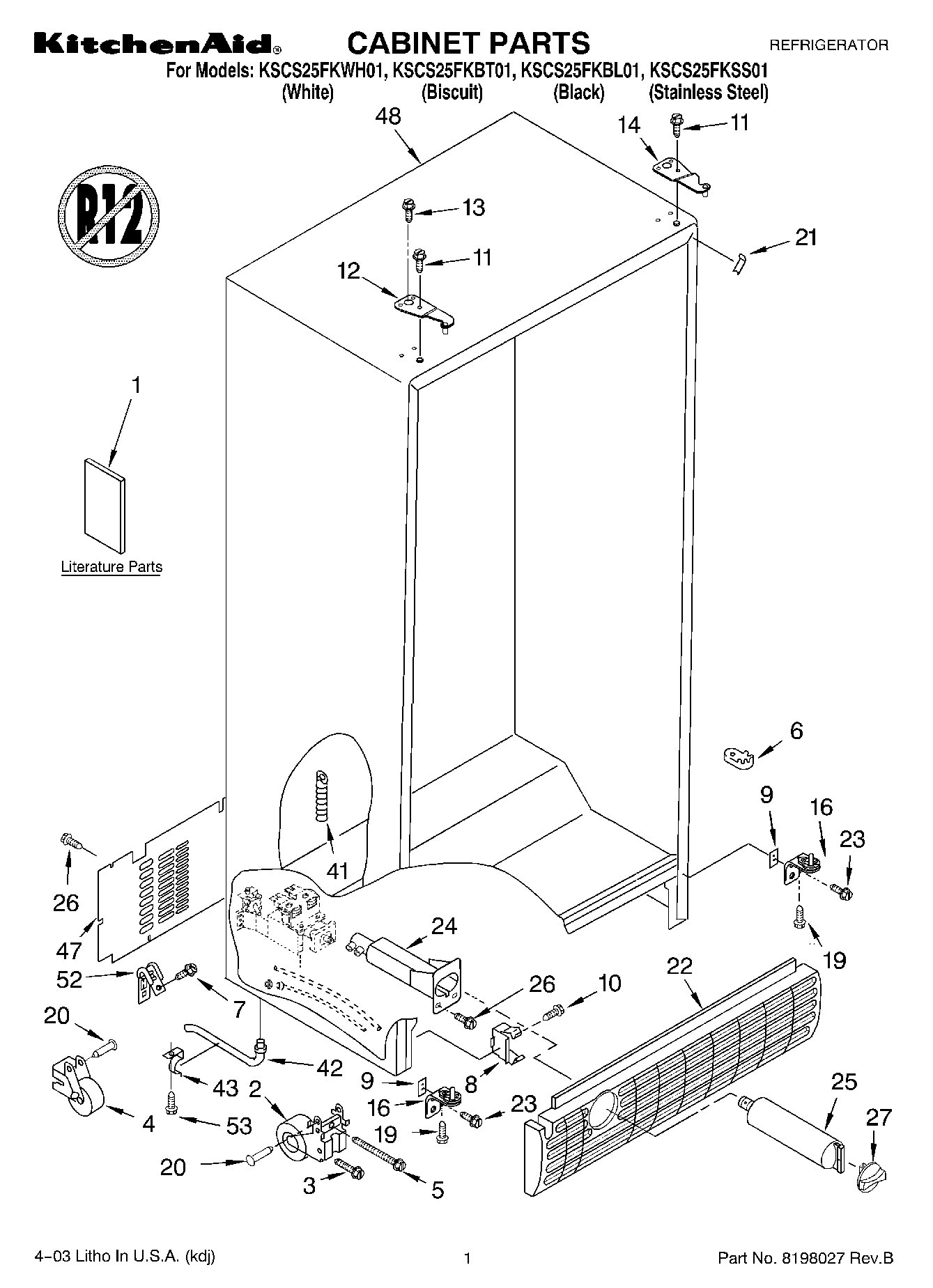

KSCS25FKWH01 01 – CABINET PARTS

KSCS25FKWH01 01 – CABINET PARTS

Written by

in

KSCS25FKWH01 01 – CABINET PARTS

Products

PositionProduct
LITERATURE PARTS
1Literature Parts (Energy Label)
1Literature Parts (Use & Care Guide)
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Service & Wiring Sheet)
2Front Roller (2)
3Bolt
4Roller (Rear) (2)
5Bolt
6WPW10329686 Whirlpool Door Cam Black
8Clip, Grille
9WP2181911 Whirlpool Refrigerator Shim
10Screw
113400108 Whirlpool Refrigerator Screw
122307007T Whirlpool Refrigerator Butt Hinge
122307007B Whirlpool Refrigerator Butt Hinge
122307007AP Whirlpool Refrigerator Hinge
13W10853301 Whirlpool Refrigerator Screw
142307008B Whirlpool Refrigerator Butt Hinge
142307008T Whirlpool Refrigerator Butt Hinge
142307008AP Whirlpool Refrigerator Hinge
16Hinge & Cam Assy.
19W10856122 Whirlpool Refrigerator Screw
20W11594405 Whirlpool Axle
21Filler, Wrapper (Black)
21Filler, Wrapper (White)
21Filler, Wrapper (Biscuit)
22Grille (Black)
22Grille (Biscuit)
22Grille (White)
23WP489497 Whirlpool Screw
24WP2199840 Whirlpool Refrigerator Housing
25EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
26WP489478 Whirlpool Refrigerator Screw
27WP2186494B Whirlpool Refrigerator Filter Cap
27WP2186494W Whirlpool Water Filter Cap
27WP2186494T Whirlpool Water Filter Cap
41W11566763 Whirlpool Fitting
42Extension Tube
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet (Not A Serviceable Part)
52549193 Whirlpool Refrigerator Power Clamp
