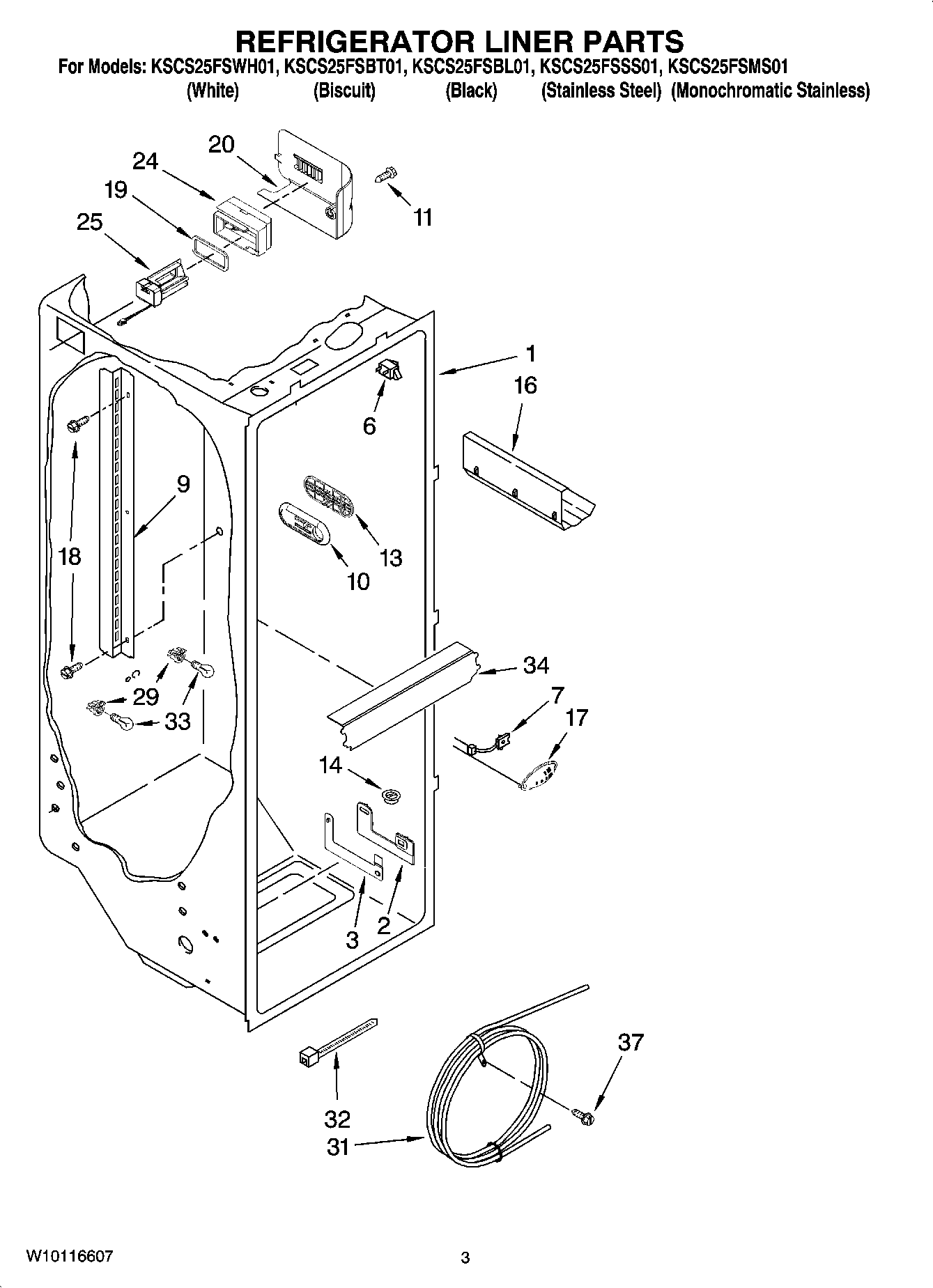

KSCS25FSBT01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
6	W11384469 Whirlpool Door Switch
7	WP2188820 Whirlpool Refrigerator Thermistor
9	Ladder, Shelf (2)
10	2301234 Whirlpool Refrigerator Control
13	Slide, Door Control
14	2171846 Whirlpool Refrigerator Release Valve
16	W10777924 Whirlpool Refrigerator Wine Rack
17	WP2317844 Whirlpool Refrigerator Cover
18	WP489478 Whirlpool Refrigerator Screw
19	Gasket, Air Baffle
20	COVER, AIR DIFFUSER
24	ASSEMBLY, AIR DIFFUSER
25	WP2220377 Whirlpool Refrigerator Air Baffle
29	4387478 Whirlpool Refrigerator Light Socket
31	RESERVOIR
32	WPW10339879 Whirlpool Wire Tie
33	RANGE ONLY 40W 120V APPL BULB
34	LENS, LIGHT
37	Screw (2)
