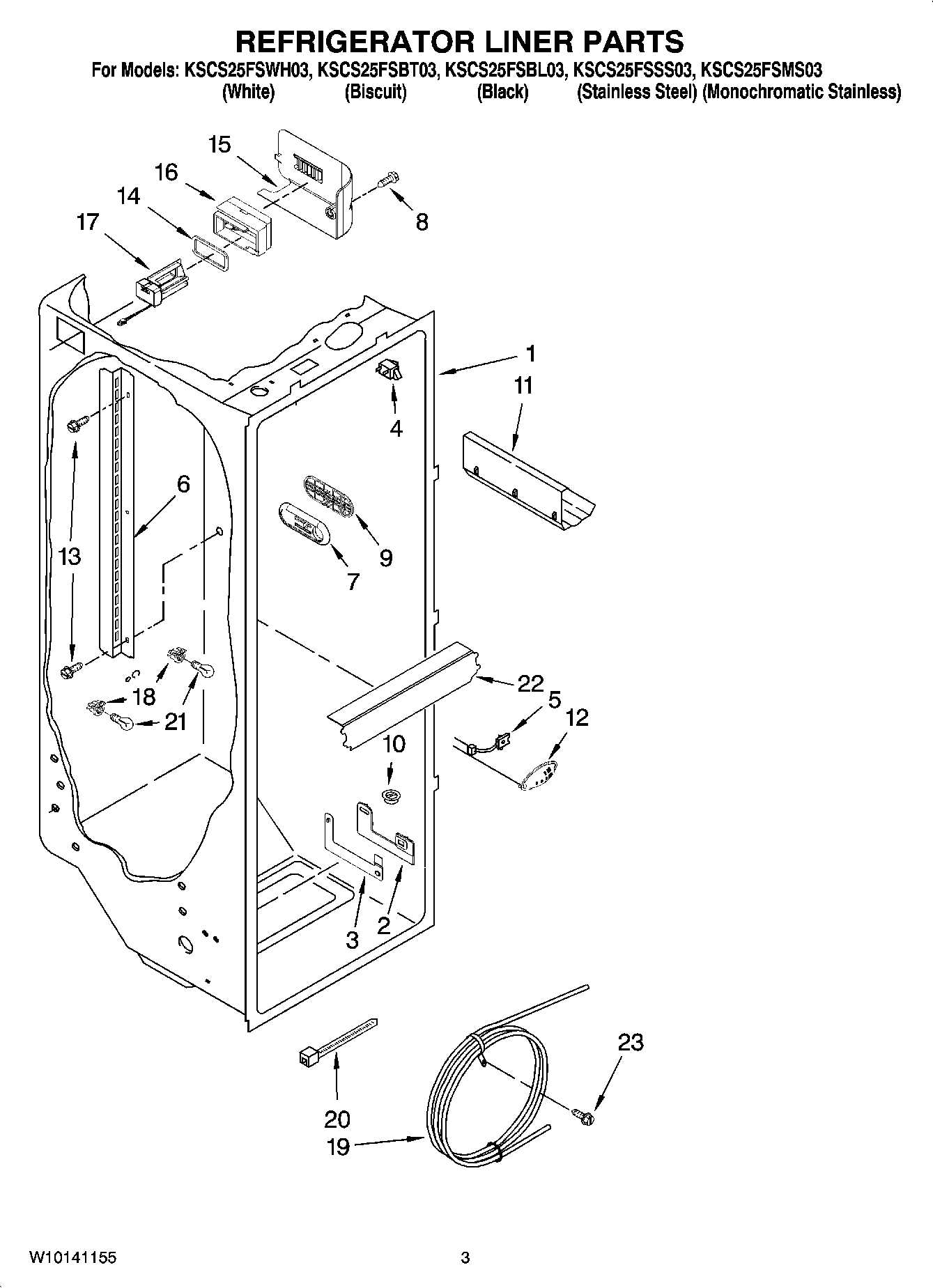

KSCS25FSMS03 02 – REFRIGERATOR LINER PARTSadmin2025-04-26T12:11:56+00:00KSCS25FSMS03 02 – REFRIGERATOR LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2Escutcheon, Meat Pan Control3Slide Meat Pan Control4W11384469 Whirlpool Door Switch5WP2188820 Whirlpool Refrigerator Thermistor6Ladder, Shelf (2)72301234 Whirlpool Refrigerator Control9Slide, Door Control102171846 Whirlpool Refrigerator Release Valve11W10777924 Whirlpool Refrigerator Wine Rack12WP2317844 Whirlpool Refrigerator Cover13WP489478 Whirlpool Refrigerator Screw14Gasket, Air Baffle15COVER, AIR DIFFUSER16ASSEMBLY, AIR DIFFUSER17WP2220377 Whirlpool Refrigerator Air Baffle184387478 Whirlpool Refrigerator Light Socket19RESERVOIR20WPW10339879 Whirlpool Wire Tie21RANGE ONLY 40W 120V APPL BULB22LENS, LIGHT23Screw (2)
