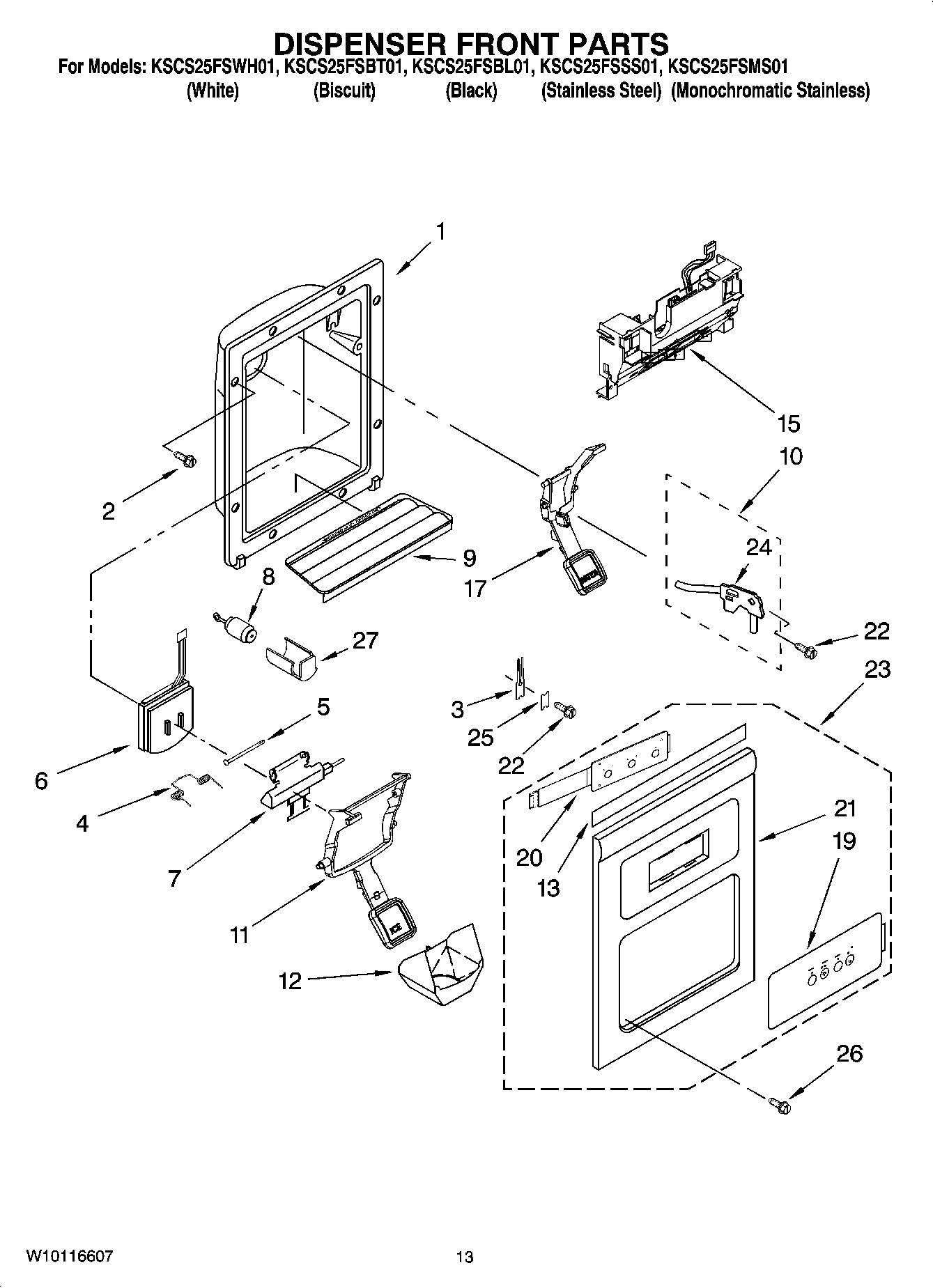

KSCS25FSSS01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	Grille, Overflow (Universal Silver)
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670B Whirlpool Dispenser Tray
10	ASSEMBLY, WATER TUBE & BRACKET
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Apollo Gray)
11	Lever, Ice Dispenser (Black)
11	Lever, Ice Dispenser (Biscuit)
12	WP2180224 Whirlpool Dispenser Funnel Guide
13	2305571 Whirlpool Gasket Assembly
15	Bracket, Control
17	Lever, Water Dispenser (Black)
17	Lever, Water Dispenser (Apollo Gray)
17	Lever, Water Dispenser (White)
17	Lever, Water Dispenser (Biscuit)
19	Overlay, Front Cover (Not Available, Order 23)
20	LED Display (Not Available Order 23)
21	Front Cover, Housing (Not Available Order 23)
22	WP3400906 Whirlpool Refrigerator Screw
23	Front Cover Assembly (Includes Items 13, 19, 20 & 21) (White)
23	Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Universal Silver)
23	Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Biscuit)
23	Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Black)
24	WP2304673 Whirlpool Refrigerator Bracket
25	WP2195051 Whirlpool Refrigerator Clip
26	WP3400065 Whirlpool Refrigerator Screw
27	Sleeve, Delay Mechanism
