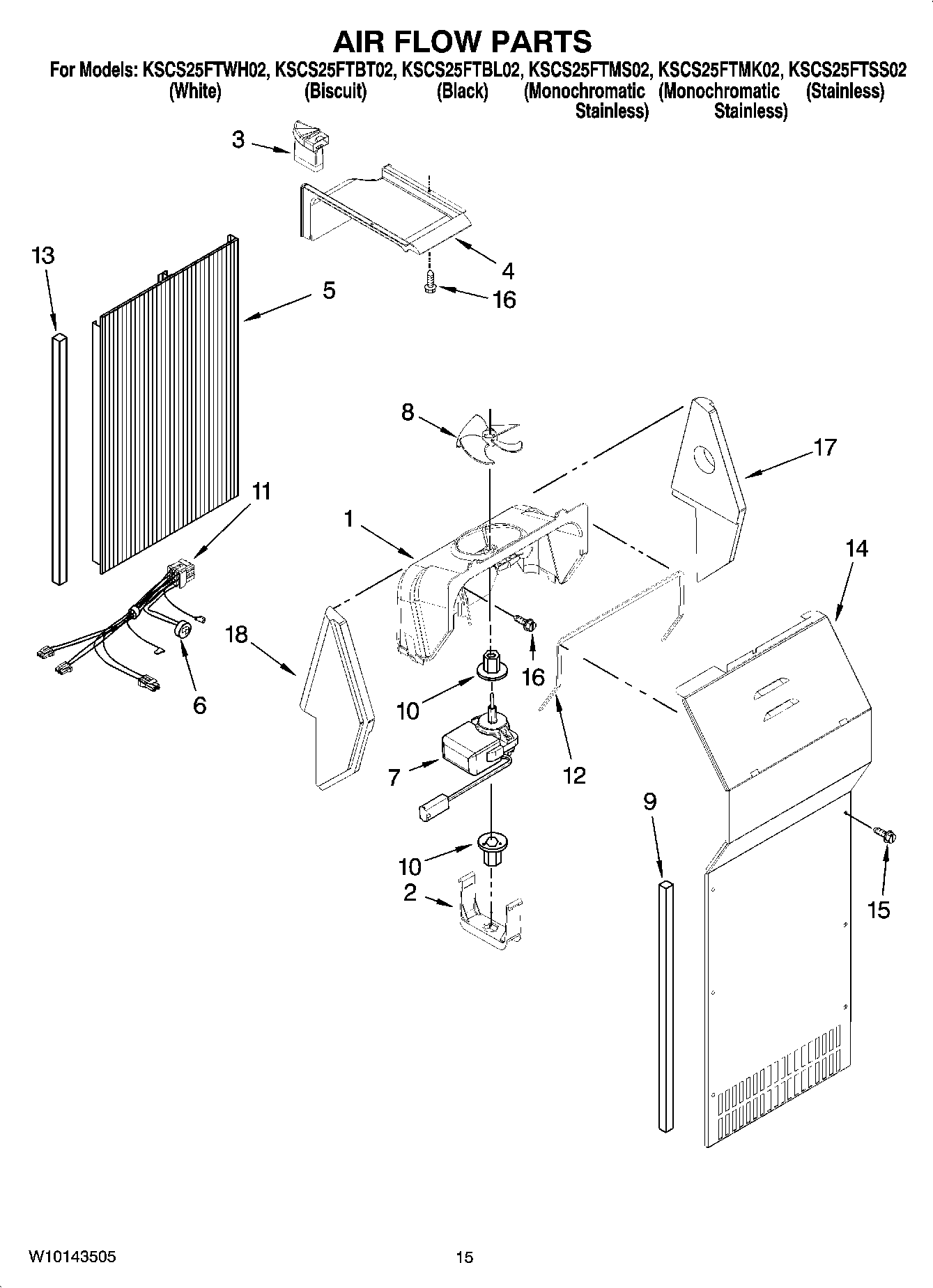

KSCS25FTBT02 09 – AIR FLOW PARTSadmin2025-04-26T12:13:45+00:00KSCS25FTBT02 09 – AIR FLOW PARTS ProductsPositionProduct1WP2182120 Whirlpool Refrigerator Scroll Fan28201663 Whirlpool Refrigerator Primary Fan Blade3Air Scoop4Air Duct, Upper5Air Duct Freezer6WPW10225581 Whirlpool Refrigerator Defrost Thermostat7Motor, Fan8WP2169142 Whirlpool Fan Blade9WP2304241 Whirlpool Refrigerator Gasket10W11669856 Whirlpool Grommet11Harness, Fan Evaporator (Includes 6)12WP2155789 Whirlpool Refrigerator Gasket134388500 Whirlpool Refrigerator Gasket142223413 Whirlpool Refrigerator Evaporator Cover154389654 Whirlpool Screw16WP489478 Whirlpool Refrigerator Screw17Support, R.S184388358 Whirlpool Refrigerator Support Bracket
