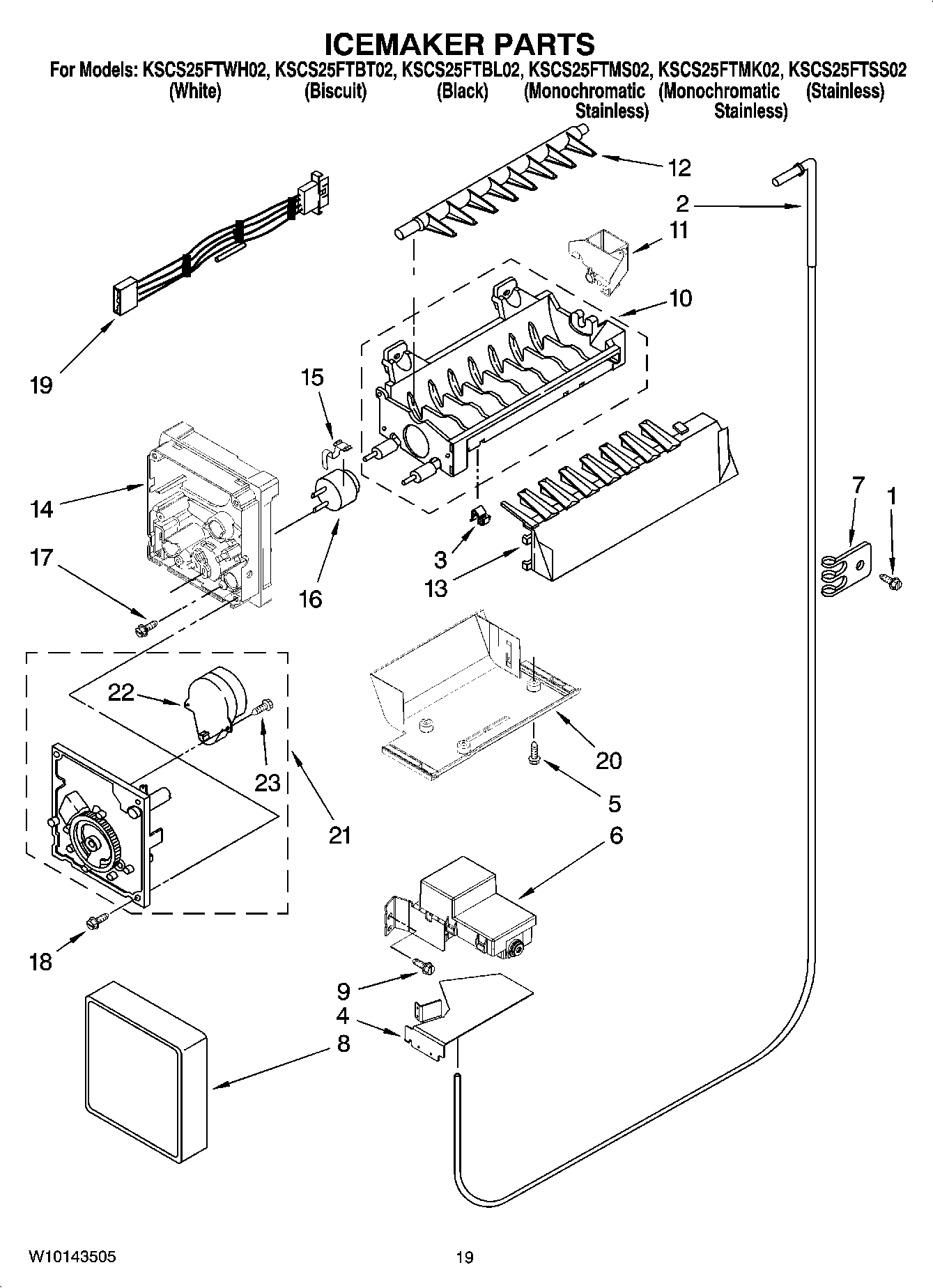

KSCS25FTBT02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSCS25FTBT02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSCS25FTBT02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI91446A2
8171357 Whirlpool Spray Nozzle
WPL 799833
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
W10134625 Whirlpool Refrigerator Touch-Up Paint Apollo Grey
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
WPL ARI91445A2
WPL ARI91444A9
WPL 8201805
WPL 8201804
WPL 8201806
WPL ARI91447A2
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT. GRAPHITE)
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
WPL 8201803
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
2WP2256096 Whirlpool Refrigerator Fitting
3WP628379 Whirlpool Refrigerator Clip
4Shield, Water Valve
5WP489478 Whirlpool Refrigerator Screw
6WPW10159840 Whirlpool Refrigerator Valve
7WP488366 Whirlpool Refrigerator Clamp
8WPW10289690 Whirlpool Ice Maker Cover
9WPW10141625 Whirlpool Refrigerator Screw Assembly
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11WP628356 Whirlpool Refrigerator Fill Cup
12WP627843 Whirlpool Refrigerator Ejector Arm
13W10297244 Whirlpool Refrigerator Arm Strip
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
178533917 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WP2187467 Whirlpool Refrigerator Wire Harness
20BRACKET, ICEMAKER MOUNTING
218201515 Whirlpool Refrigerator Motor and Gear Module Kit
22W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
23489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
