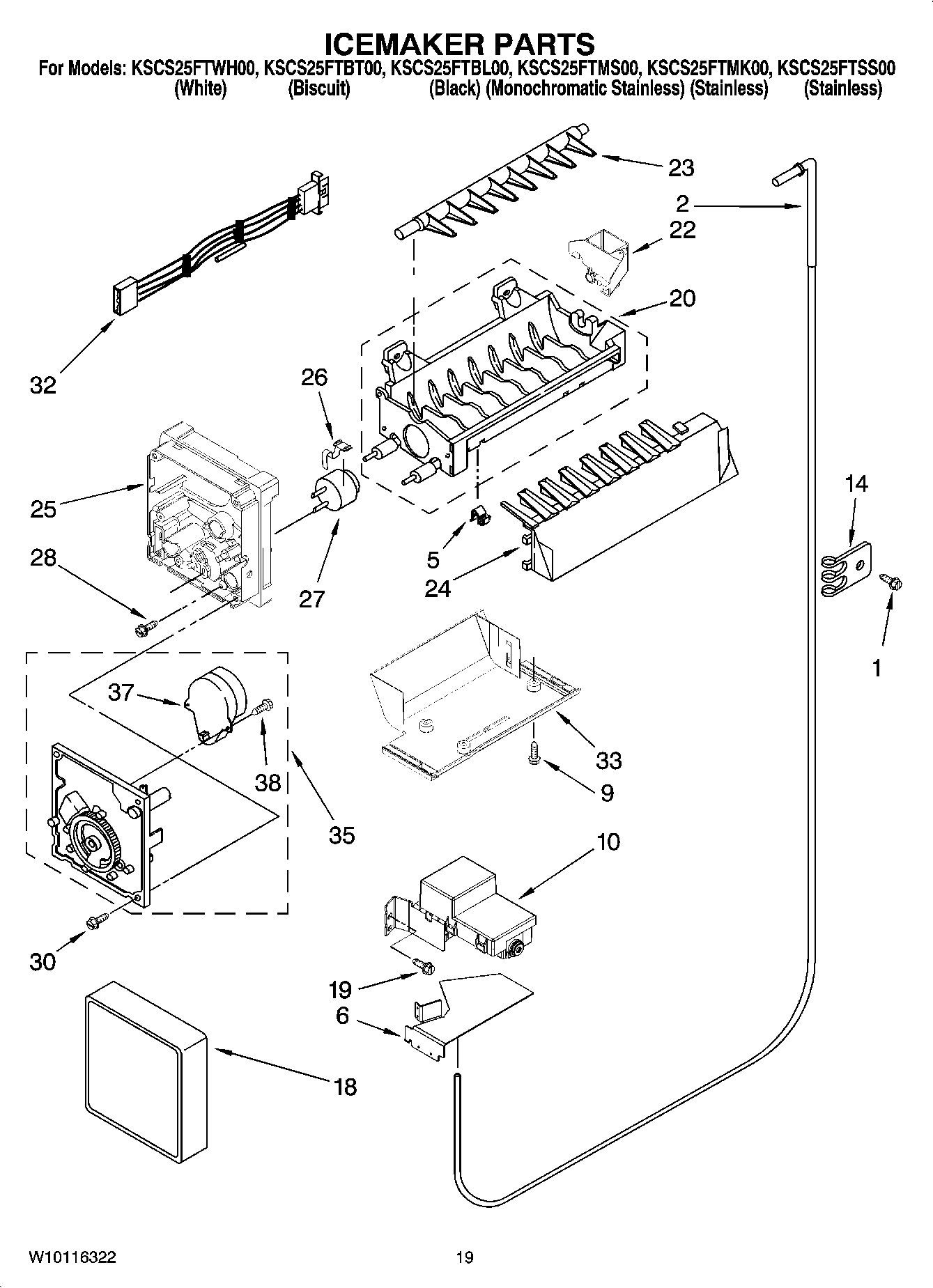

KSCS25FTMK00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSCS25FTMK00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSCS25FTMK00 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI91457A1
WPL 799833
Enamel, Black (1 Qt. Uncut)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
WPL ARI91456A8
WPL ARI91455A9
WPL 8201805
WPL 8201804
WPL 8201806
WPL ARI91458A6
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
4392901 Whirlpool Biscuit Spray Paint
WPL 8201803
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
2WP2256096 Whirlpool Refrigerator Fitting
5WP628379 Whirlpool Refrigerator Clip
6Shield, Water Valve
9WP489478 Whirlpool Refrigerator Screw
10WPW10159840 Whirlpool Refrigerator Valve
14WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
32WP2187467 Whirlpool Refrigerator Wire Harness
33BRACKET, ICEMAKER MOUNTING
358201515 Whirlpool Refrigerator Motor and Gear Module Kit
37W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
