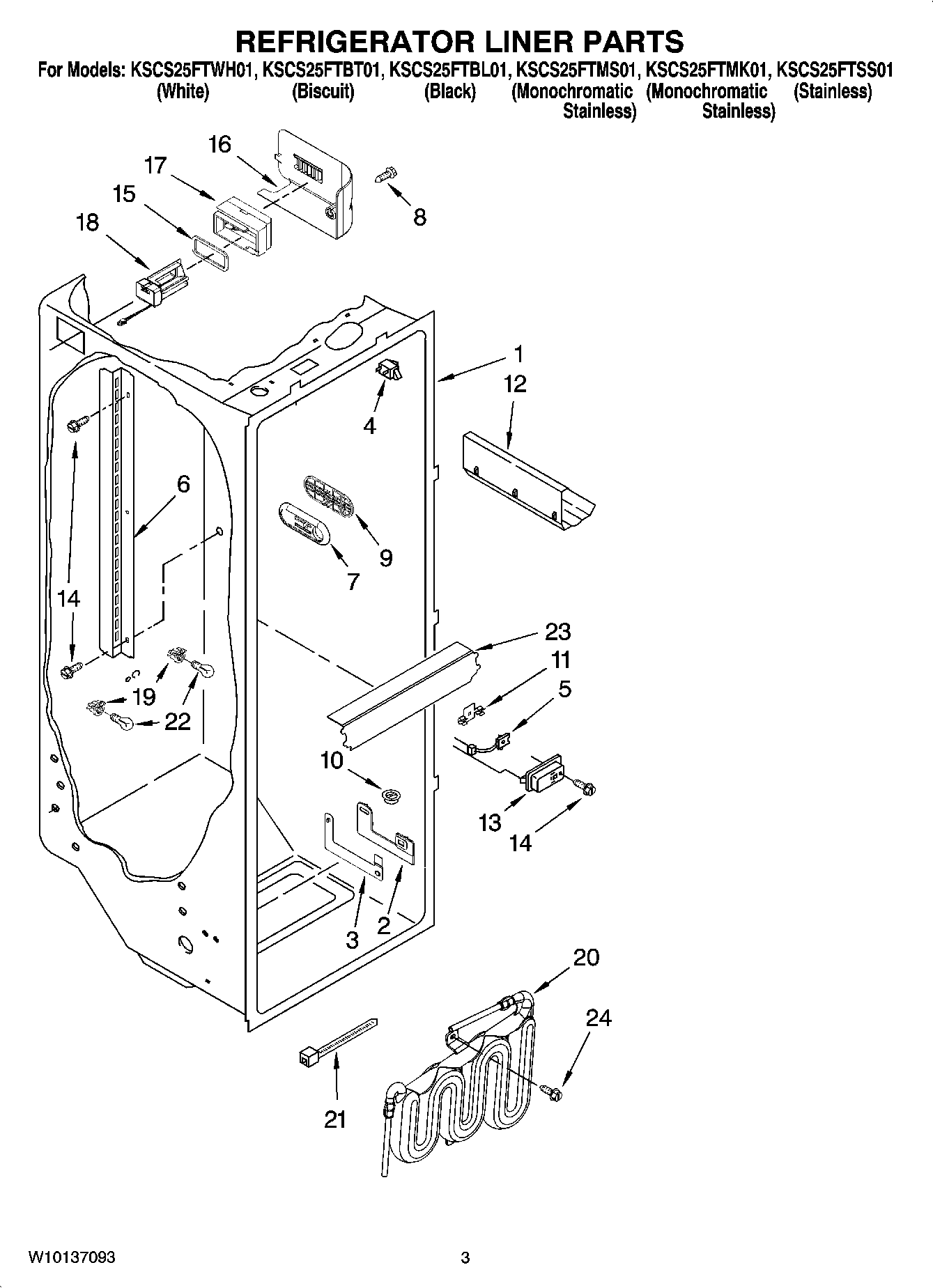

KSCS25FTMK01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	W11384469 Whirlpool Door Switch
5	WP2188820 Whirlpool Refrigerator Thermistor
6	Ladder, Shelf (2)
7	2301234 Whirlpool Refrigerator Control
9	Slide, Door Control
10	2171846 Whirlpool Refrigerator Release Valve
11	Clip, Thermistor
12	W10777924 Whirlpool Refrigerator Wine Rack
13	1116793 Whirlpool Refrigerator Cover
14	WP489478 Whirlpool Refrigerator Screw
15	Gasket, Air Baffle
16	COVER, AIR DIFFUSER
17	ASSEMBLY, AIR DIFFUSER
18	WP2220377 Whirlpool Refrigerator Air Baffle
19	4387478 Whirlpool Refrigerator Light Socket
20	RESERVOIR
21	WP2205813 Whirlpool Refrigerator Wire Tie
22	RANGE ONLY 40W 120V APPL BULB
23	LENS, LIGHT
24	WPW10141625 Whirlpool Refrigerator Screw Assembly
