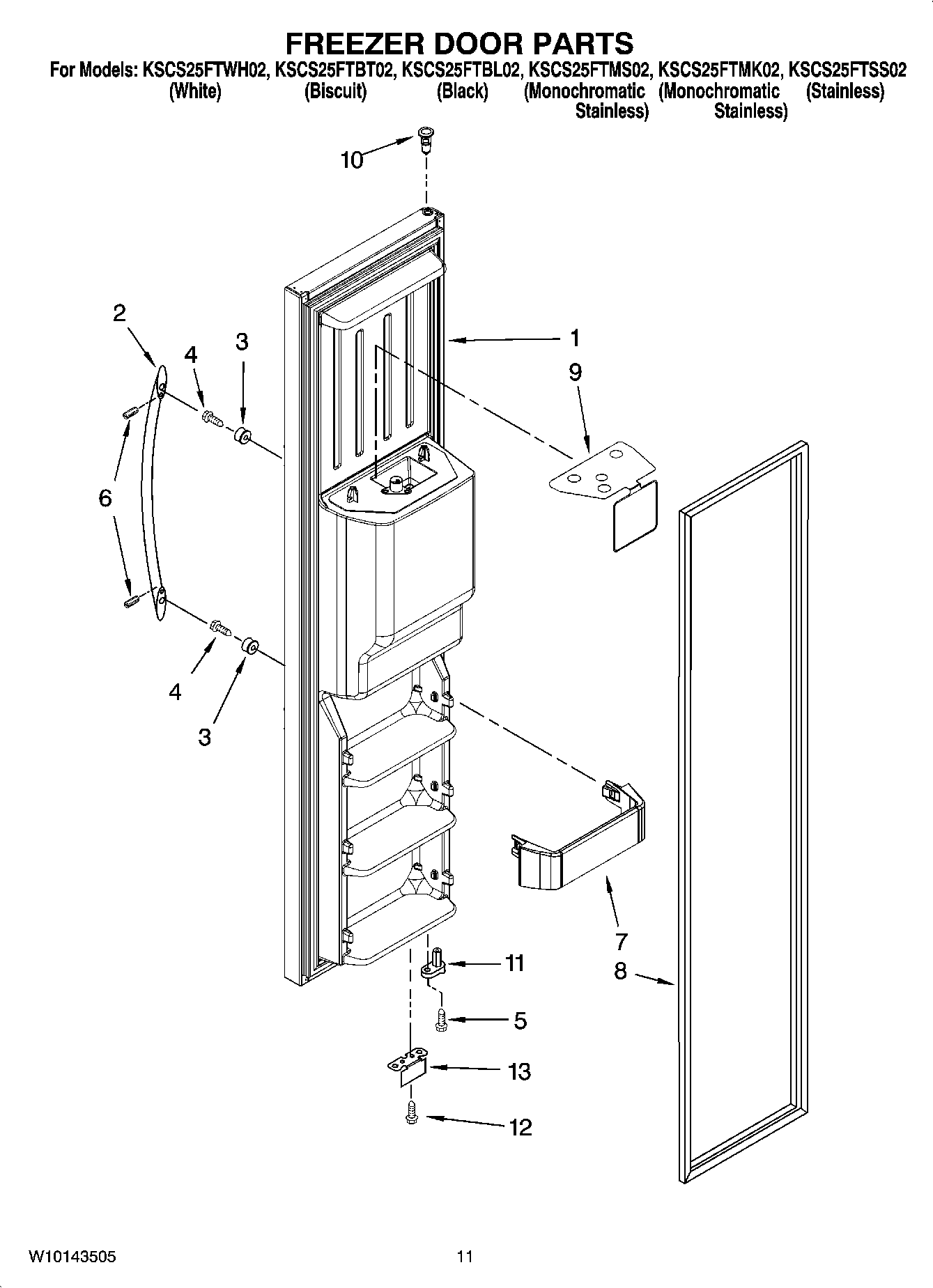

KSCS25FTMK02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Mono Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Includes 4) (Biscuit)
2	WP2319727B Whirlpool Refrigerator Handle
2	WP2319727W Whirlpool Refrigerator Handle
2	Handle, Door (Stainless Steel)
3	WPW10170540 Whirlpool Screw
4	WP488163 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	SCREW
6	WPW10010150 Whirlpool Refrigerator Screw
7	Trivet (3)
8	2306995 Whirlpool Refrigerator Door Gasket
8	Door Gasket, Magnetic (Mist Beige)
8	Door Gasket, Magnetic (Apollo Grey)
9	Safety Barrier
10	Thimble, Top (For Stainless Steel Models)
11	Door Closer, Upper Cam
12	WP489483 Whirlpool Screw
13	Bracket, Door Stop Following Parts Not Illustrated (Wire Assembly, Freezer Door)
13	Bracket, Door Stop Following Parts Not Illustrated (Tube, Door)
13	2306940 Whirlpool Refrigerator Bracket
13	2306940B Whirlpool Refrigerator Bracket
