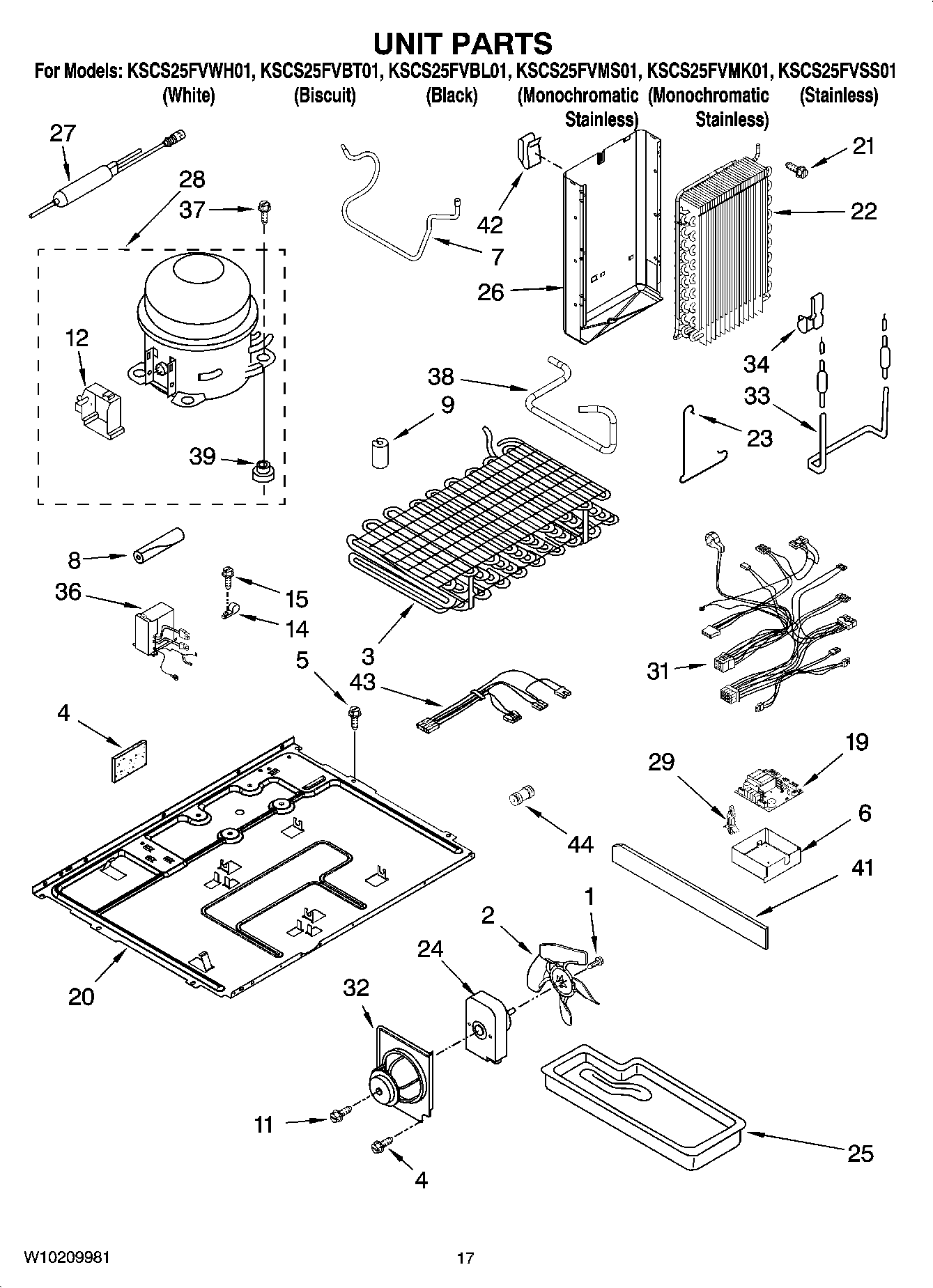

KSCS25FVBL01 11 – UNIT PARTSadmin2025-04-26T12:33:53+00:00KSCS25FVBL01 11 – UNIT PARTS
Products
| Position | Product |
|---|
| 978030 Whirlpool Refrigerator Valve |
| VALVE, ACCESS (1/2``) |
| WP978025 Whirlpool Refrigerator Valve |
| 978027 Whirlpool Refrigerator Primary Valve |
| 978026 Whirlpool Refrigerator Primary Valve |
| 876764 Whirlpool Refrigerator Primary Valve |
| Following Parts Not Illustrated and Optional Parts Not Included |
| VALVE, ACCESS (5/8``) |
| REFRIGERANT CHARGE 6.00 oz. (R-134A) |
| 1 | WP488234 Whirlpool Air Conditioner Screw |
| 2 | WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40% |
| 3 | ASSEMBLY, CONDENSER |
| 4 | W11553819 Whirlpool Refrigerator Insulation |
| 5 | 3400524 Whirlpool Refrigerator Screw |
| 6 | Housing, Control Board |
| 7 | W10528579 Whirlpool Refrigerator Tube |
| 8 | SLEEVE |
| 9 | W10852725 Whirlpool Refrigerator Grommet |
| 11 | WPW10171469 Whirlpool Refrigerator Screw |
| 12 | 2215676 Whirlpool Refrigerator Terminal Cover |
| 14 | WPL 2305373 |
| 15 | Screw (2) |
| 19 | W10219463 Whirlpool Control Board + Core |
| 20 | Baseplate |
| 21 | WP489478 Whirlpool Refrigerator Screw |
| 22 | WP2188823 Whirlpool Refrigerator Evaporator |
| 23 | Clamp |
| 24 | WP2188874 Whirlpool Refrigerator Condenser Motor |
| 25 | Tray, Evaporator |
| 26 | SHIELD, HEAT |
| 27 | WPW10143759 Whirlpool Dryer Filter |
| 28 | W10276644 Whirlpool Refrigerator Compressor |
| 29 | 2223800 Whirlpool Refrigerator Spacer |
| 31 | WP2310122 Whirlpool Refrigerator Wire Harness |
| 32 | BRACKET, FAN MOUNTING |
| 33 | Heater, Defrost |
| 34 | W11623163 Whirlpool Refrigerator Clip |
| 36 | WPW10154805 Whirlpool Refrigerator Inverter Box |
| 38 | Tube, Discharge |
| 39 | WP4387558 Whirlpool Refrigerator Compressor Grommet |
| 39 | 876811 Whirlpool Grommet |
| 41 | 2223394 Whirlpool Extension |
| 42 | Clip, Heat Shield |
| 43 | 2310121 Whirlpool Refrigerator Wire Harness |
| 44 | WP2300868 Whirlpool Refrigerator Fitting |
