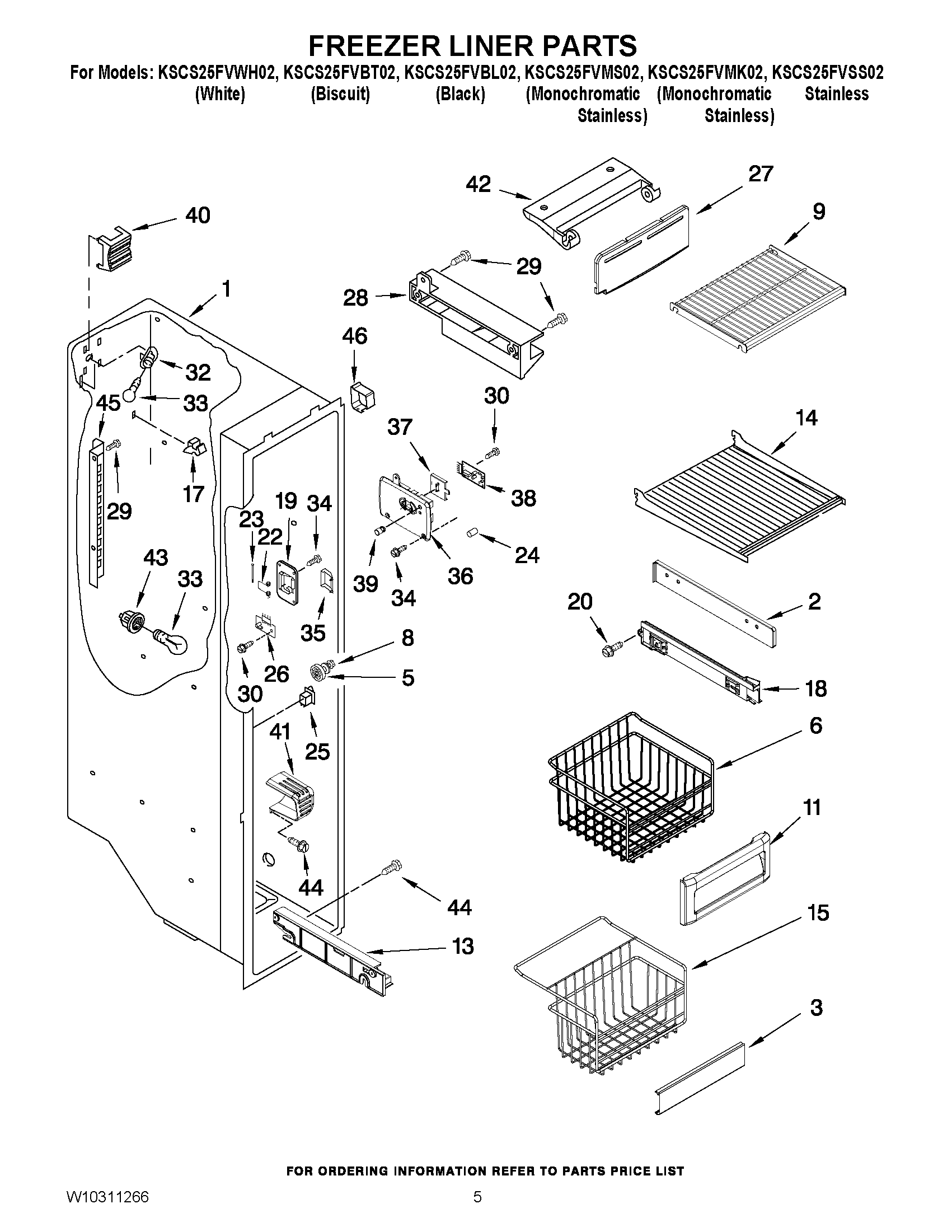

KSCS25FVBL02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Spacer, Slide (2)
5W11527119 Whirlpool Refrigerator Shelf Stud
6Basket, Deep (2) (Includes 11)
8WPW10191952 Whirlpool Refrigerator Screw
9SHELF, WIRE
11Front, Basket
13TRACK, SHELF (LEFT HAND)
13TRACK, SHELF (RIGHT HAND)
14Shelf, Fixed
15Basket, Lower (Includes 3)
172215823 Whirlpool Refrigerator Clip
182301544 Whirlpool Refrigerator Glide
182301545 Whirlpool Refrigerator Glide
19Cover, Emitter
20Screw
22WP2198635 Whirlpool Refrigerator Spring
23WP2198634 Whirlpool Door Pin
24Tube, P.C. Board
25W11457217 Whirlpool Refrigerator Rocker Switch Combination
26W10757851-includeCORE Whirlpool Electronic Control+Core
27WPW10185438 Whirlpool Ice Maker Cover
282306900 Whirlpool Refrigerator Slide
28Slide, Ice Maker
29WP489478 Whirlpool Refrigerator Screw
302006254 Whirlpool Refrigerator Screw
324387478 Whirlpool Refrigerator Light Socket
33W11679940 Whirlpool Refrigerator Light Bulb Assembly
34WPW10142283 Whirlpool Refrigerator Screw
35WP2198633 Whirlpool Refrigerator Flipper
36Cover, Receiver
372315398 Whirlpool Refrigerator Slide
39WP2198643 Whirlpool Refrigerator Lens
40Light Shield
41Light Lens
42WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43SOCKET
44W10759522 Whirlpool Screw
45Ladder (Right Side)
45Ladder (Left Side)
462303378 Whirlpool Shield Assembly
