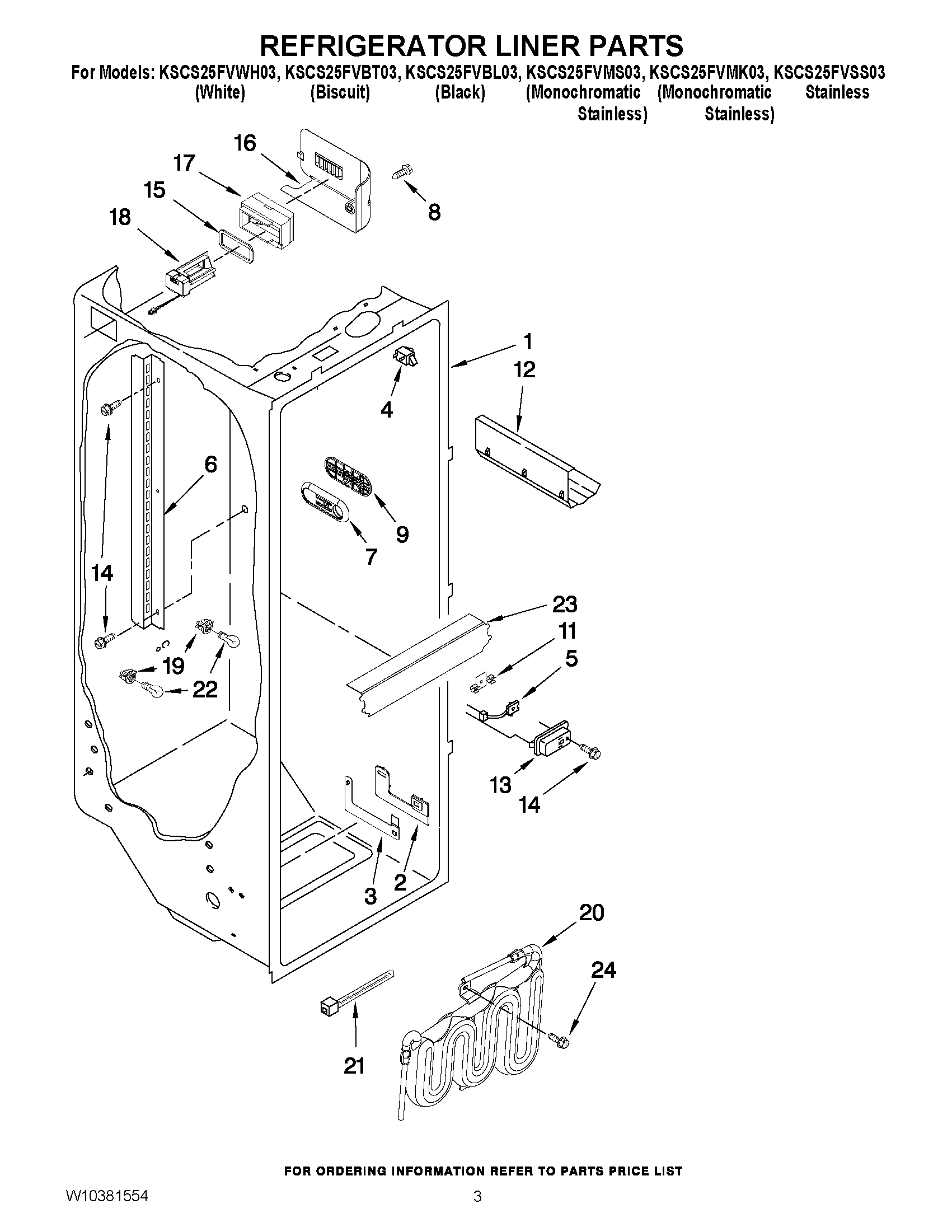

KSCS25FVBL03 02 – REFRIGERATOR LINER PARTS

KSCS25FVBL03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSCS25FVBL03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
22223524 Whirlpool Escutcheon
32223339 Whirlpool Slide
4W11384469 Whirlpool Door Switch
5WP2188820 Whirlpool Refrigerator Thermistor
6Ladder, Shelf (2)
72301234 Whirlpool Refrigerator Control
9Slide, Door Control
11Clip, Thermistor
12W10777924 Whirlpool Refrigerator Wine Rack
131116793 Whirlpool Refrigerator Cover
14WP489478 Whirlpool Refrigerator Screw
15Gasket, Air Baffle
16COVER, AIR DIFFUSER
17ASSEMBLY, AIR DIFFUSER
18WP2220377 Whirlpool Refrigerator Air Baffle
194387478 Whirlpool Refrigerator Light Socket
20RESERVOIR
21WPW10339879 Whirlpool Wire Tie
22W11679940 Whirlpool Refrigerator Light Bulb Assembly
23LENS, LIGHT
24WPW10141625 Whirlpool Refrigerator Screw Assembly
