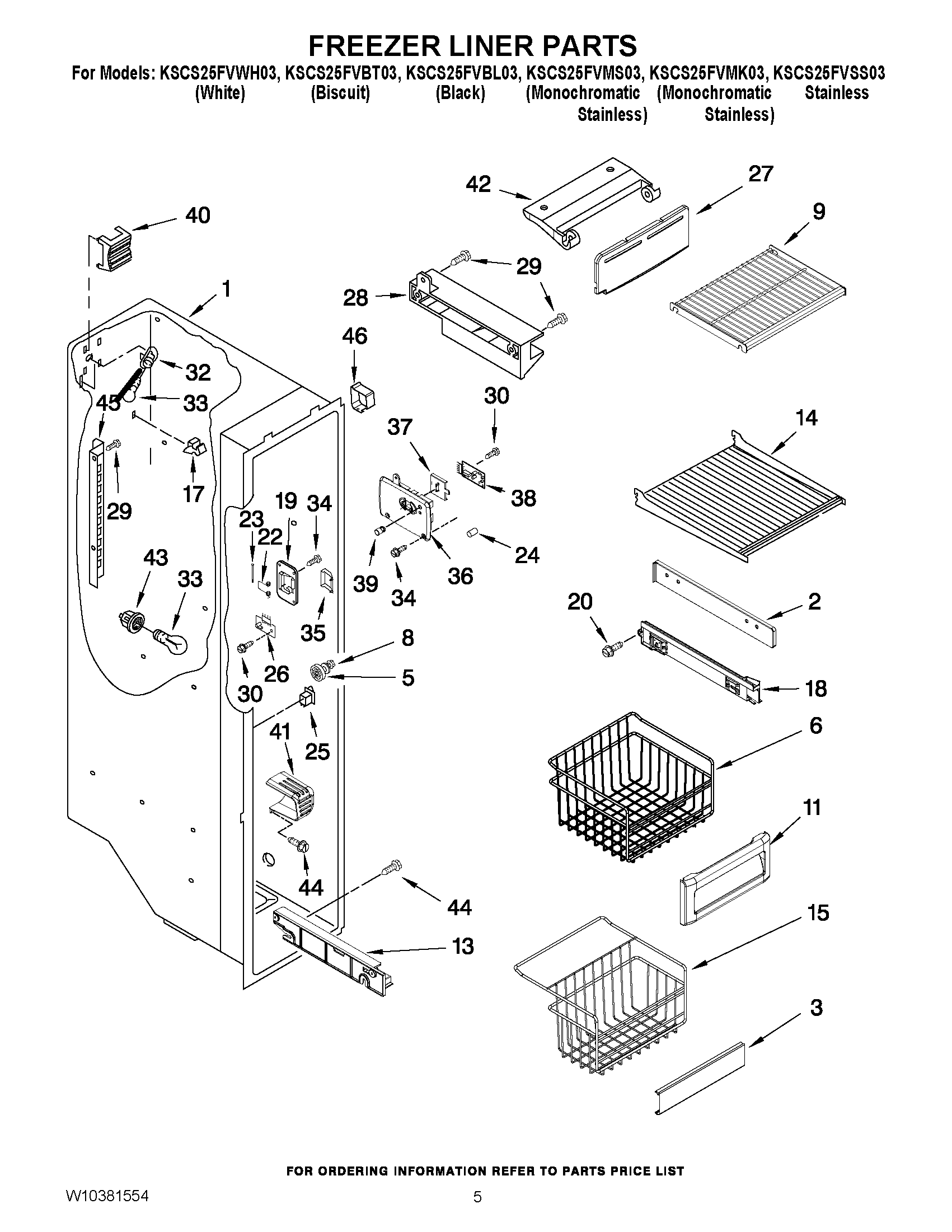

KSCS25FVBL03 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Spacer, Slide (2)
5	W11527119 Whirlpool Refrigerator Shelf Stud
6	Basket, Deep (2) (Includes 11)
8	WPW10191952 Whirlpool Refrigerator Screw
9	SHELF, WIRE
11	Front, Basket
13	TRACK, SHELF (RIGHT HAND)
13	TRACK, SHELF (LEFT HAND)
14	Shelf, Fixed
15	Basket, Lower (Includes 3)
17	2215823 Whirlpool Refrigerator Clip
18	2301545 Whirlpool Refrigerator Glide
18	2301544 Whirlpool Refrigerator Glide
19	Cover, Emitter
20	Screw
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
24	Tube, P.C. Board
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	WPW10185438 Whirlpool Ice Maker Cover
28	Slide, Ice Maker
28	2306900 Whirlpool Refrigerator Slide
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
32	4387478 Whirlpool Refrigerator Light Socket
33	W11679940 Whirlpool Refrigerator Light Bulb Assembly
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	2315398 Whirlpool Refrigerator Slide
39	WP2198643 Whirlpool Refrigerator Lens
40	Light Shield
41	Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
44	W10142289 Whirlpool Air Conditioner Screw
45	Ladder (Left Side)
45	Ladder (Right Side)
46	2303378 Whirlpool Shield Assembly
