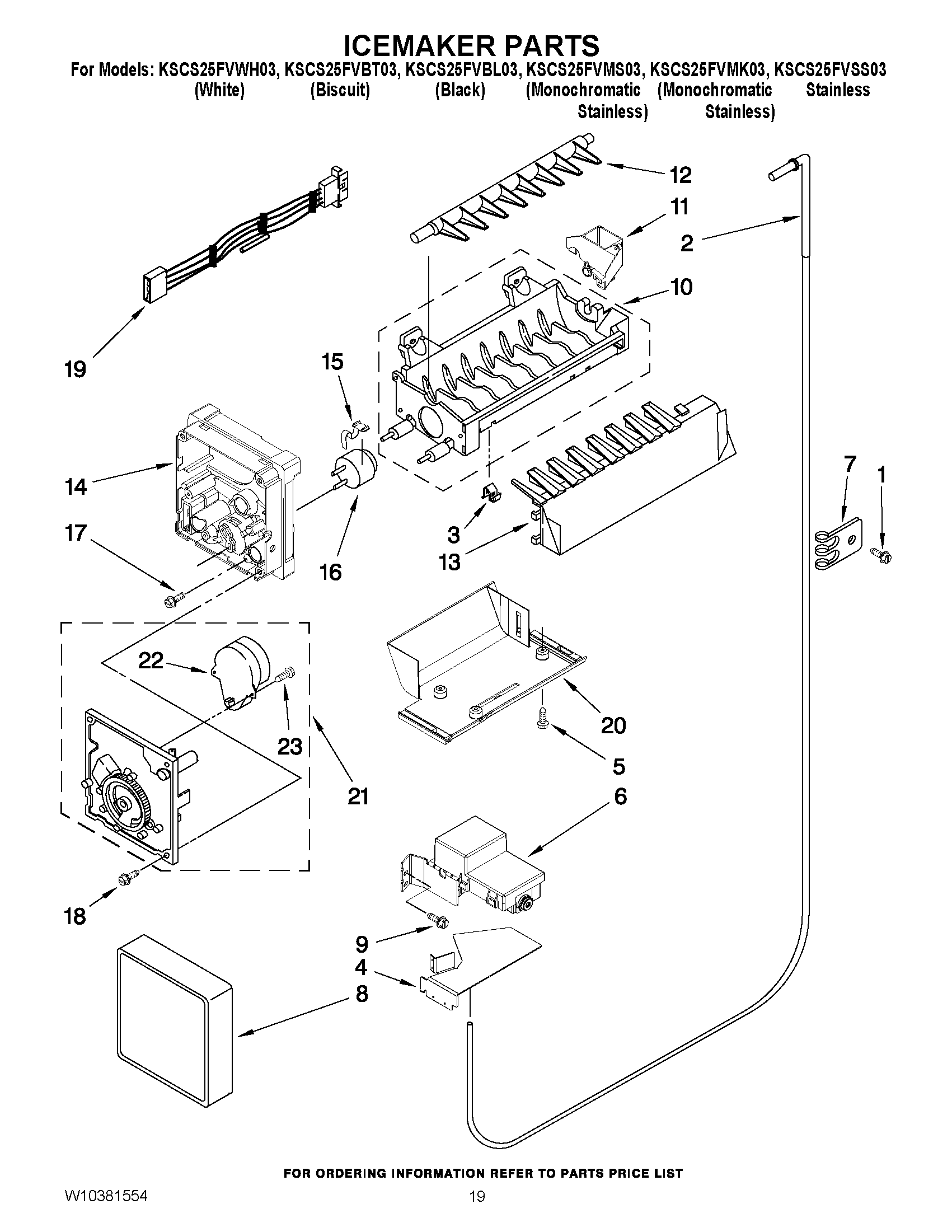

KSCS25FVBL03 12 – ICEMAKER PARTS

Products

Position	Product
2	Fitting, Water Tube
3	WP628379 Whirlpool Refrigerator Clip
4	SHIELD, VALVE ASSY
5	WP489478 Whirlpool Refrigerator Screw
6	WPW10159840 Whirlpool Refrigerator Valve
7	WP488366 Whirlpool Refrigerator Clamp
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	WPW10272168 Whirlpool Refrigerator Water Fill Cup
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WPW10272161 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	8533917 Whirlpool Refrigerator Screw
19	WP2187467 Whirlpool Refrigerator Wire Harness
20	BRACKET, ICEMAKER MOUNTING
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	CABINET (NOT A SERVICEABLE PART)
23	WP681249 Whirlpool Screw Assembly
100	W11512149 Whirlpool Ice Maker Assembly
