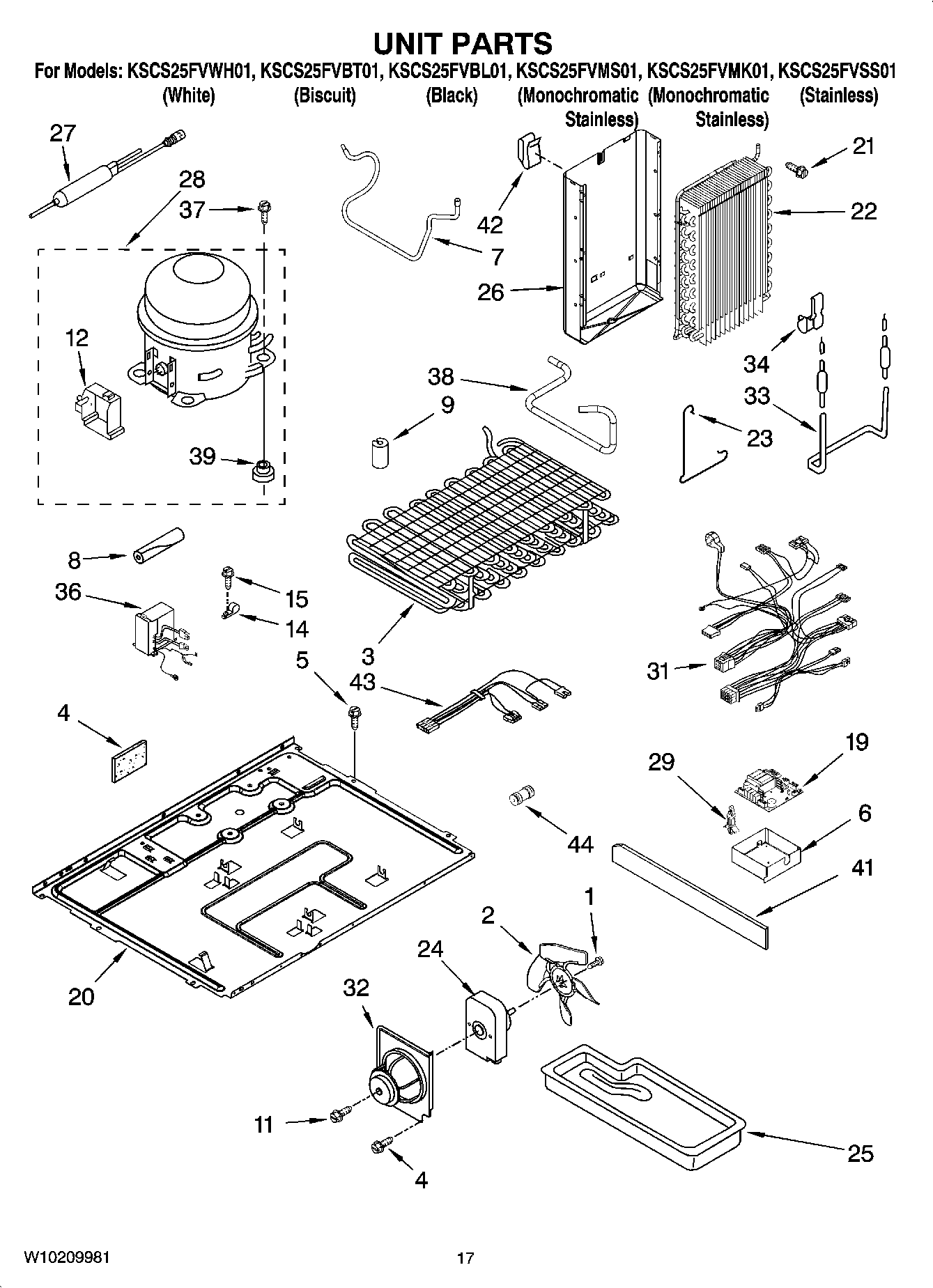

KSCS25FVMS01 11 – UNIT PARTS
Written by
in
KSCS25FVMS01 11 – UNIT PARTS
Products
Position
Product
978030 Whirlpool Refrigerator Valve
VALVE, ACCESS (1/2“)
WP978025 Whirlpool Refrigerator Valve
978027 Whirlpool Refrigerator Primary Valve
978026 Whirlpool Refrigerator Primary Valve
876764 Whirlpool Refrigerator Primary Valve
Following Parts Not Illustrated and Optional Parts Not Included
VALVE, ACCESS (5/8“)
REFRIGERANT CHARGE 6.00 oz. (R-134A)
1
WP488234 Whirlpool Air Conditioner Screw
2
WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3
ASSEMBLY, CONDENSER
4
W11553819 Whirlpool Refrigerator Insulation
5
3400524 Whirlpool Refrigerator Screw
6
Housing, Control Board
7
W10528579 Whirlpool Refrigerator Tube
8
SLEEVE
9
W10852725 Whirlpool Refrigerator Grommet
11
WPW10171469 Whirlpool Refrigerator Screw
12
2215676 Whirlpool Refrigerator Terminal Cover
14
WPL 2305373
15
Screw (2)
19
W10219463 Whirlpool Control Board + Core
20
Baseplate
21
WP489478 Whirlpool Refrigerator Screw
22
WP2188823 Whirlpool Refrigerator Evaporator
23
Clamp
24
WP2188874 Whirlpool Refrigerator Condenser Motor
25
Tray, Evaporator
26
SHIELD, HEAT
27
WPW10143759 Whirlpool Dryer Filter
28
W10276644 Whirlpool Refrigerator Compressor
29
2223800 Whirlpool Refrigerator Spacer
31
WP2310122 Whirlpool Refrigerator Wire Harness
32
BRACKET, FAN MOUNTING
33
Heater, Defrost
34
W11623163 Whirlpool Refrigerator Clip
36
WPW10154805 Whirlpool Refrigerator Inverter Box
38
Tube, Discharge
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
41
2223394 Whirlpool Extension
42
Clip, Heat Shield
43
2310121 Whirlpool Refrigerator Wire Harness
44
WP2300868 Whirlpool Refrigerator Fitting
←
