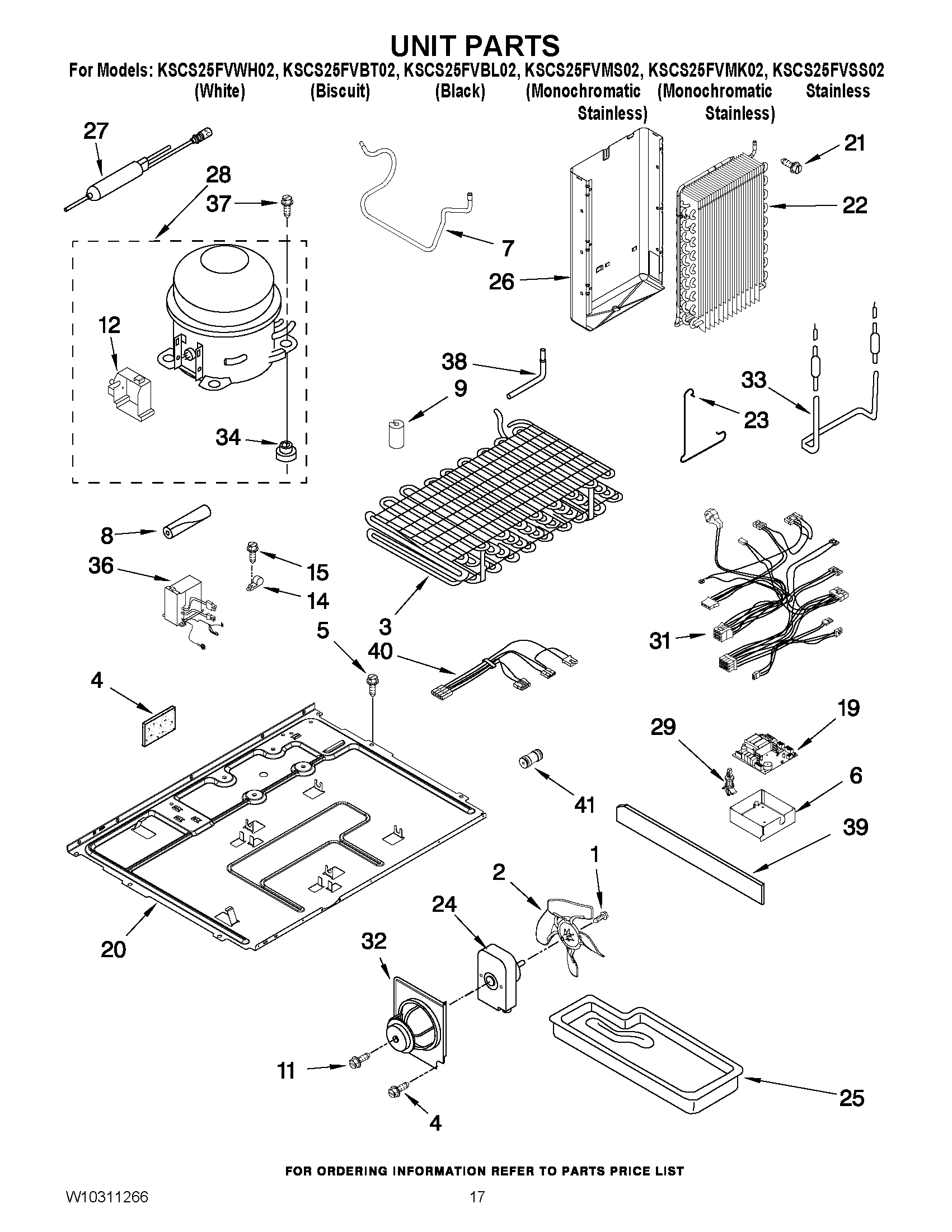

KSCS25FVMS02 11 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	W10193018 Whirlpool Refrigerator Condenser
4	W11553819 Whirlpool Refrigerator Insulation
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
11	WPW10171469 Whirlpool Refrigerator Screw
12	2215676 Whirlpool Refrigerator Terminal Cover
14	WPL 2305373
15	Screw (2)
19	W10219463 Whirlpool Control Board + Core
20	Baseplate
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	Tray, Evaporator
26	SHIELD, HEAT
27	WPW10143759 Whirlpool Dryer Filter
28	W10276644 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
31	WP2310122 Whirlpool Refrigerator Wire Harness
32	BRACKET, FAN MOUNTING
33	Heater, Defrost
34	876811 Whirlpool Grommet
36	WPW10154805 Whirlpool Refrigerator Inverter Box
38	W10858105 Whirlpool Refrigerator Tube
39	2223394 Whirlpool Extension
40	2310121 Whirlpool Refrigerator Wire Harness
41	WP2300868 Whirlpool Refrigerator Fitting
