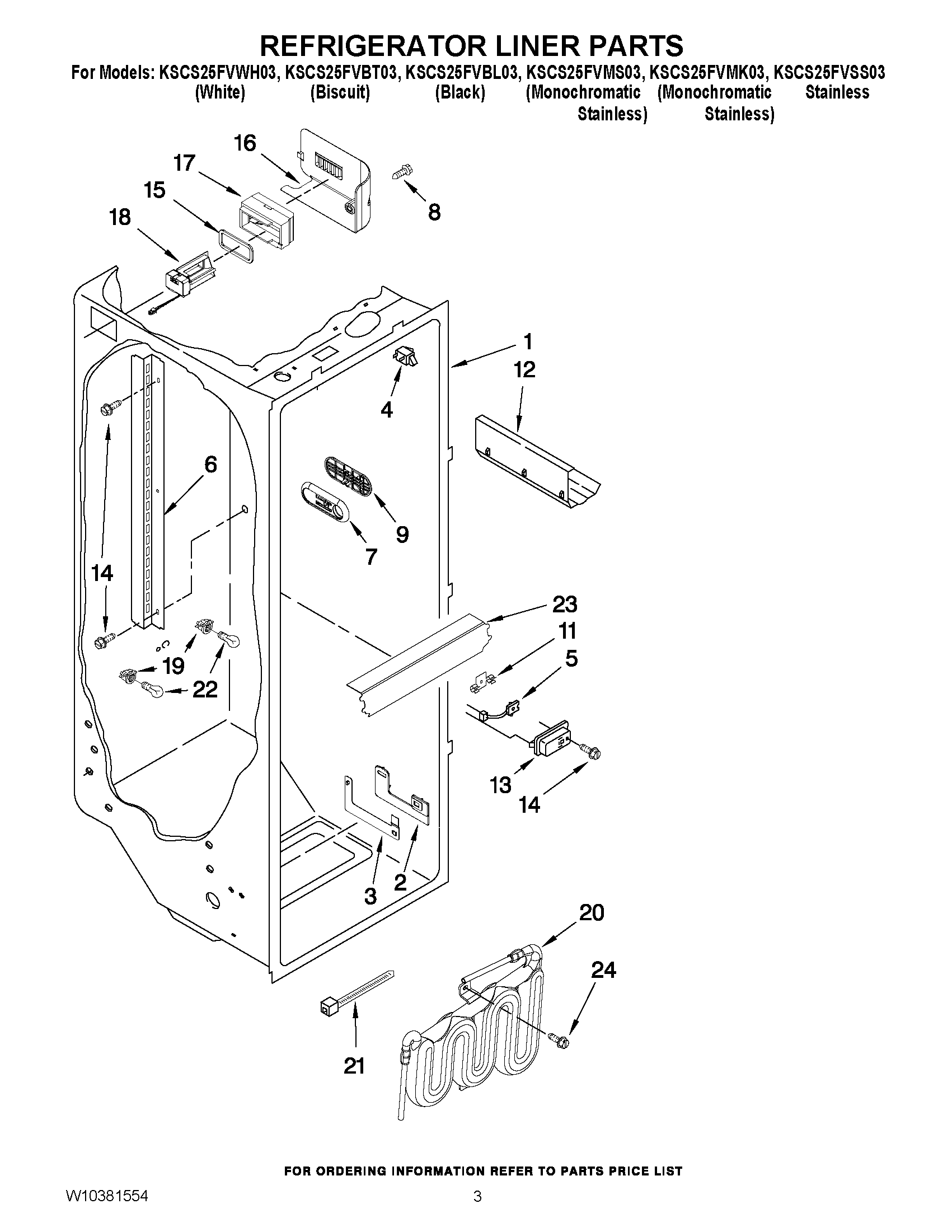

KSCS25FVMS03 02 – REFRIGERATOR LINER PARTSadmin2025-04-26T12:33:35+00:00KSCS25FVMS03 02 – REFRIGERATOR LINER PARTS ProductsPositionProduct1CABINET (NOT A SERVICEABLE PART)22223524 Whirlpool Escutcheon32223339 Whirlpool Slide4W11384469 Whirlpool Door Switch5WP2188820 Whirlpool Refrigerator Thermistor6Ladder, Shelf (2)72301234 Whirlpool Refrigerator Control9Slide, Door Control11Clip, Thermistor12W10777924 Whirlpool Refrigerator Wine Rack131116793 Whirlpool Refrigerator Cover14WP489478 Whirlpool Refrigerator Screw15Gasket, Air Baffle16COVER, AIR DIFFUSER17ASSEMBLY, AIR DIFFUSER18WP2220377 Whirlpool Refrigerator Air Baffle194387478 Whirlpool Refrigerator Light Socket20RESERVOIR21WPW10339879 Whirlpool Wire Tie22W11679940 Whirlpool Refrigerator Light Bulb Assembly23LENS, LIGHT24WPW10141625 Whirlpool Refrigerator Screw Assembly
