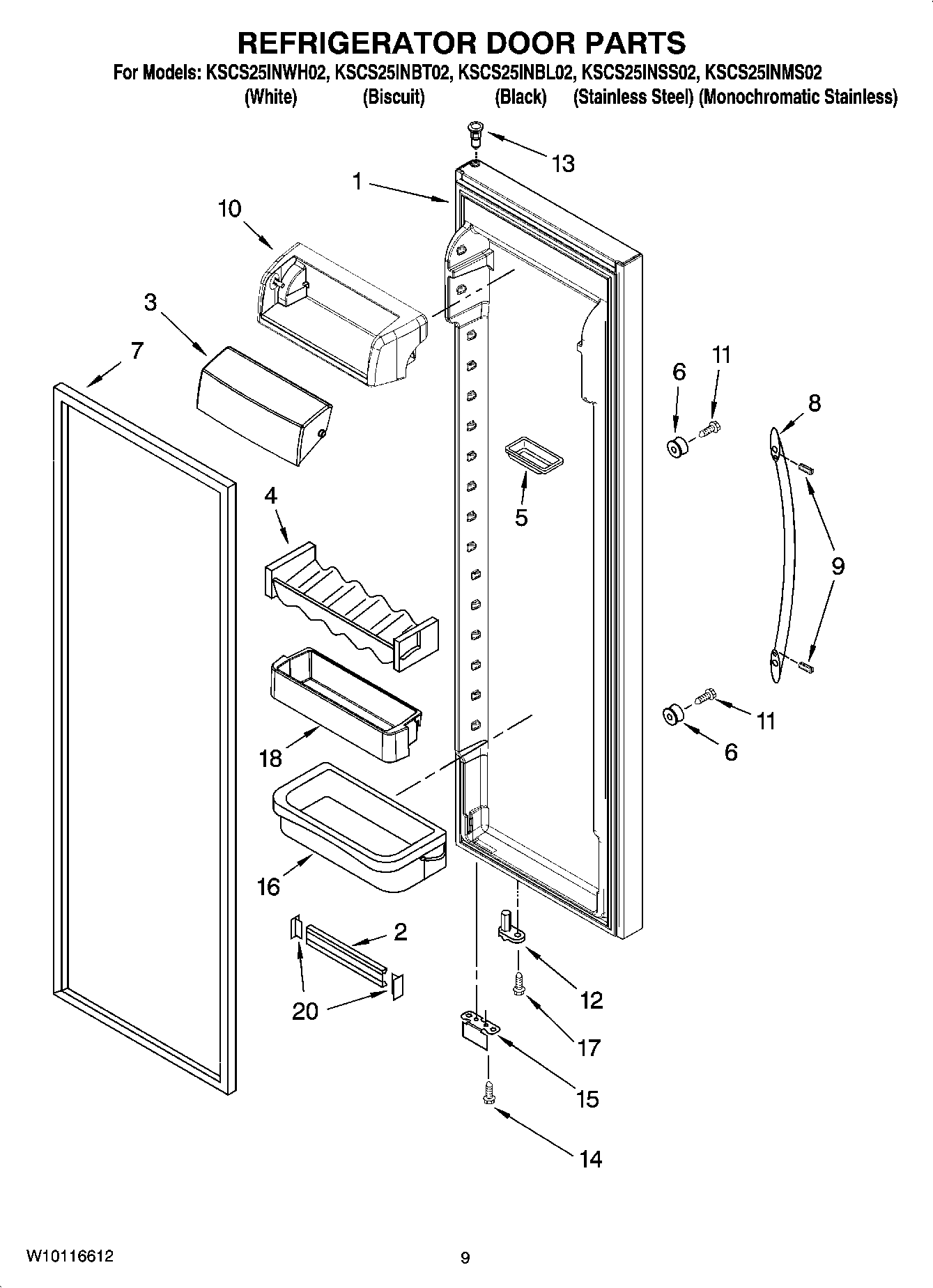

KSCS25INBL02 06 – REFRIGERATOR DOOR PARTS

KSCS25INBL02 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSCS25INBL02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Black)
1Refrigerator Door (Includes 7) (White)
1Refrigerator Door (Includes 7) (Biscuit)
1Refrigerator Door (Includes 7) (Monochromatic Stainless)
1Refrigerator Door (Includes 7) (Stainless Steel)
2Trim, Shelf
3Dairy Door
4CADDY, CAN
5Dish, Butter
6WPW10170540 Whirlpool Screw
72306996 Whirlpool Refrigerator Door Gasket
72306992 Whirlpool Refrigerator FIP Gasket
8Handle (Biscuit)
8Handle (White)
8Handle (Black)
8Handle
9SCREW
10WP2223879 Whirlpool Refrigerator Compressor Door
11WP488163 Whirlpool Refrigerator Screw
12CLOSER, DOOR
13Thimble, Top (For Stainless Steel Models)
13WP2182181 Whirlpool Refrigerator Thimble
14WP489483 Whirlpool Screw
152306940 Whirlpool Refrigerator Bracket
152306940B Whirlpool Refrigerator Bracket
16WP2223860 Whirlpool Refrigerator Door Shelf Bin
17WP3400012 Whirlpool Refrigerator Screw
18WP2224173 Whirlpool Refrigerator Cantilever Bin
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
