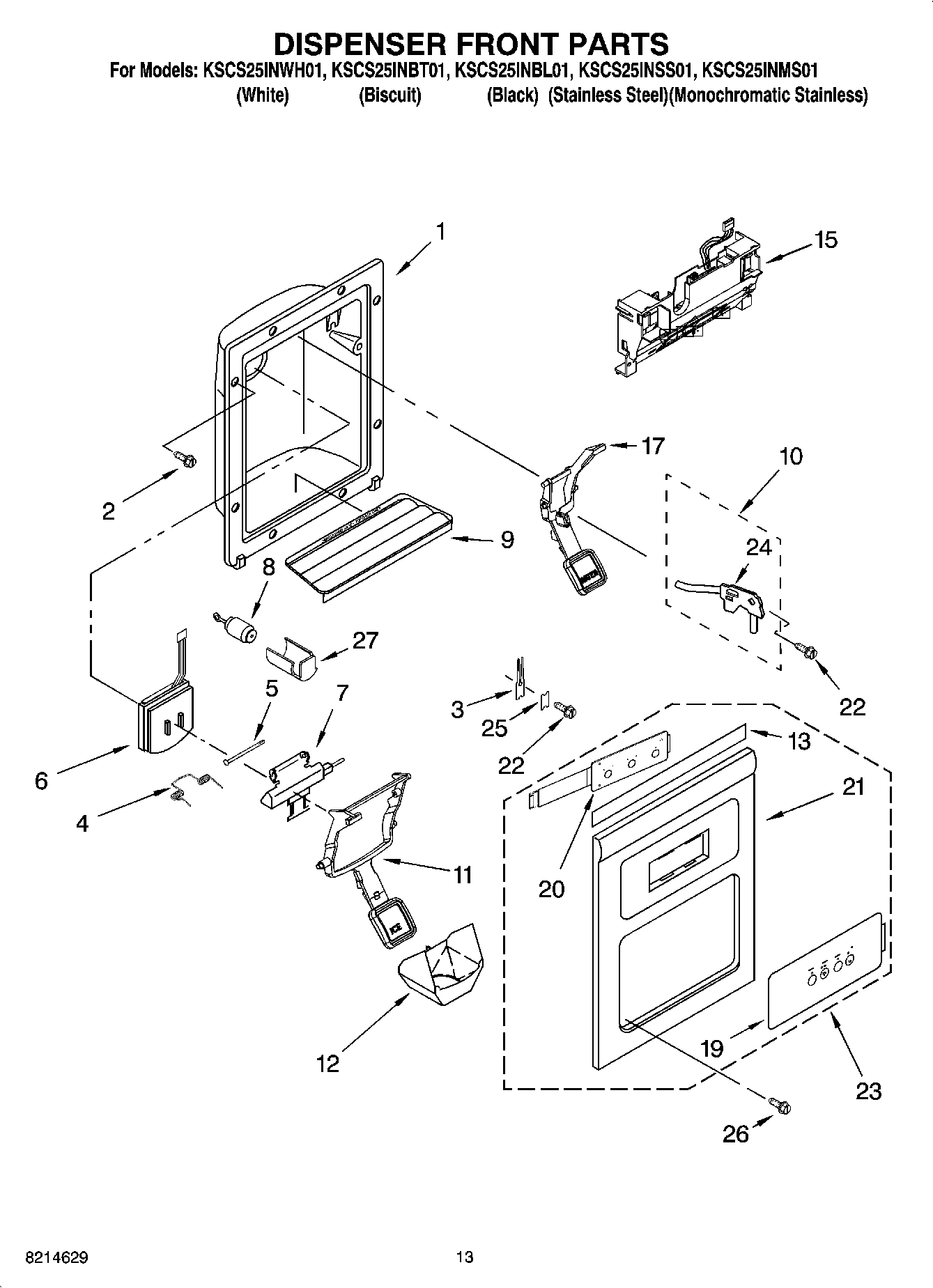

KSCS25INMS01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9Grille, Overflow (Universal Silver)
9WP2206670W Whirlpool Dispenser Tray
9WP2206670B Whirlpool Dispenser Tray
9WP2206670T Whirlpool Refrigerator Grille
10ASSEMBLY, WATER TUBE & BRACKET
11Lever, Ice Dispenser (White)
11Lever, Ice Dispenser (Biscuit)
11Lever, Ice Dispenser (Apollo Gray)
11Lever, Ice Dispenser (Black)
12WP2180224 Whirlpool Dispenser Funnel Guide
132305571 Whirlpool Gasket Assembly
15Bracket, Control
17Lever, Water Dispenser (Apollo Gray)
17Lever, Water Dispenser (Black)
17Lever, Water Dispenser (Biscuit)
17Lever, Water Dispenser (White)
19Overlay, Front Cover (Not Available, Order 23)
20LED Display (Not Available Order 23)
21Front Cover, Housing (Not Available Order 23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Black)
23Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Biscuit)
23Front Cover Assembly (Includes Items 13, 19, 20 & 21) (Universal Silver)
23Front Cover Assembly (Includes Items 13, 19, 20 & 21) (White)
24WP2304673 Whirlpool Refrigerator Bracket
25WP2195051 Whirlpool Refrigerator Clip
26WP3400065 Whirlpool Refrigerator Screw
27Sleeve, Delay Mechanism
